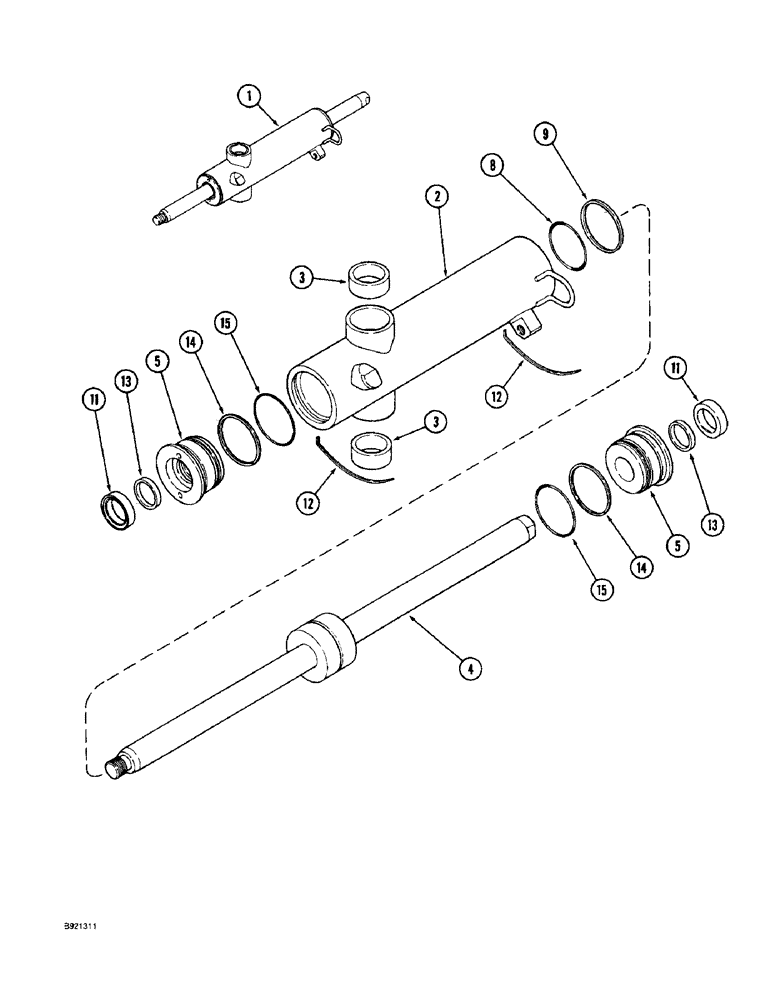

Запчасти Case IH 1800 (5-10) - POWER STEERING CYLINDER, PRIOR TO P.I.N. JJC133070 (04) - STEERING

1

1255300C3

STEERING CYLINDER

CYLINDER ASSEMBLY - steering

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder

1шт.

3

1255304C1

BUSHING

- trunnion

2шт.

4

1255306C2

ROD

- piston (Replaces rod 1255306C1)

1шт.

5

1255310C1

HEAD (CYLINDER)

GLAND - cylinder

2шт.

80448C2

SEAL KIT

KIT - seal (Replaces kit 80448C1)

1шт.

8

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

1шт.

9

1255309C1

SEAL,61.19mm ID x 67.28mm OD x 2.92mm Thk

SEAL - piston

1шт.

11

D95141

WIPER SEAL

WIPER - piston rod

2шт.

12

1255312C1

RETAINING WIRE

WIRE - retaining, 8-1/16 inch (205 mm) long, cut from 140600C1 bulk wire below

2шт.

NOTE: See page 5-23 for steering cylinder used on models P.I.N. JJC133070 and after.

1шт.

13

119188C1

SEAL,32.03mm ID x 37.84mm OD x 4.04mm Thk

- rod

2шт.

14

1255311C1

WASHER

- backup

2шт.

15

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

140600C1

RETAINING WIRE

WIRE - bulk, retaining, 12-13/16 inch (325 mm) long

1шт.

NOTE: See page 5-23 for steering cylinder used on models P.I.N. JJC133070 and after.

1шт.
