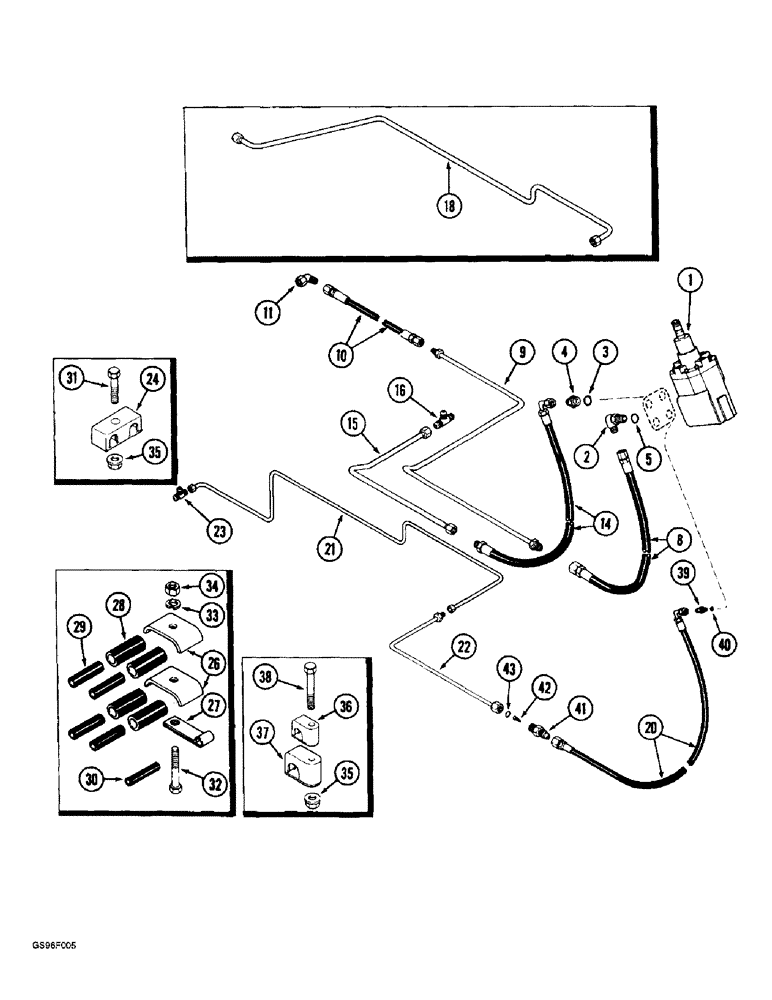

Запчасти Case IH 1800 (5-06) - STEERING SYSTEM, SUPPLY, RETURN AND SENSING SYSTEM (04) - STEERING

1

1978328C3

PUMP

ASSEMBLY - steering, parts list page 5-9

1шт.

2

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adjustable O-ring boss

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

1979138C1

HOSE

- pressure, steering, 42 inch (1068 mm) long

1шт.

9

1978087C1

TUBE

- supply, steering

1шт.

10

1270453C1

HYDRAULIC HOSE

HOSE - supply, steering

1шт.

11

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

14

1977123C1

HOSE

- steering return, 46-11/32 inch (1177 mm) long

1шт.

15

1285364C3

TUBE

- steering tank, middle

1шт.

16

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

1шт.

18

1285363C3

TUBE

- steering tank

1шт.

20

1977124C3

HOSE

- steering sensing, 44-3/32 inch (1120 mm) long

1шт.

21

1285357C2

TUBE

- steering sense

1шт.

22

1980247C1

TUBE

- steering, sensing

1шт.

23

218-591

TEE,7/16"-20, 37 Degree

- 7/16-20 inch flare branch x flare x flare

1шт.

24

183824C1

CLAMP

- 1/4 inch ID

1шт.

24

183825C1

CLAMP

- 3/8 inch ID

1шт.

26

165601C1

CLAMP

- reservoir drain tube

2шт.

27

633125R2

CLAMP

- tube (Replaces clamp 633125R1)

1шт.

28

163491C1

RUBBER INSULATOR

INSULATOR - rubber, 1/2 ID x 1-13/64 inch long

4шт.

29

163490C1

RUBBER INSULATOR

INSULATOR - rubber, 3/8 ID x 1-13/64 inch long

4шт.

30

163489C1

STRIP

INSULATOR - rubber, 1/4 ID x 1-13/64 inch long

1шт.

32

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

1шт.

33

492-11038

LOCK WASHER,3/8"

1шт.

34

425-106

NUT,3/8"-16, Cl 5

1шт.

35

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

36

183820C1

CLAMP

- 1/4 inch ID

1шт.

37

183821C1

CLAMP

- 3/8 inch ID

1шт.

38

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

39

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 inch thread

1шт.

40

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

41

1980237C2

CHECK VALVE

VALVE ASSEMBLY - check

1шт.

42

NSS

NOT SOLD SEPARAT

SCREEN - flow, order valve assembly 1980237C2

1шт.

43

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

31

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
