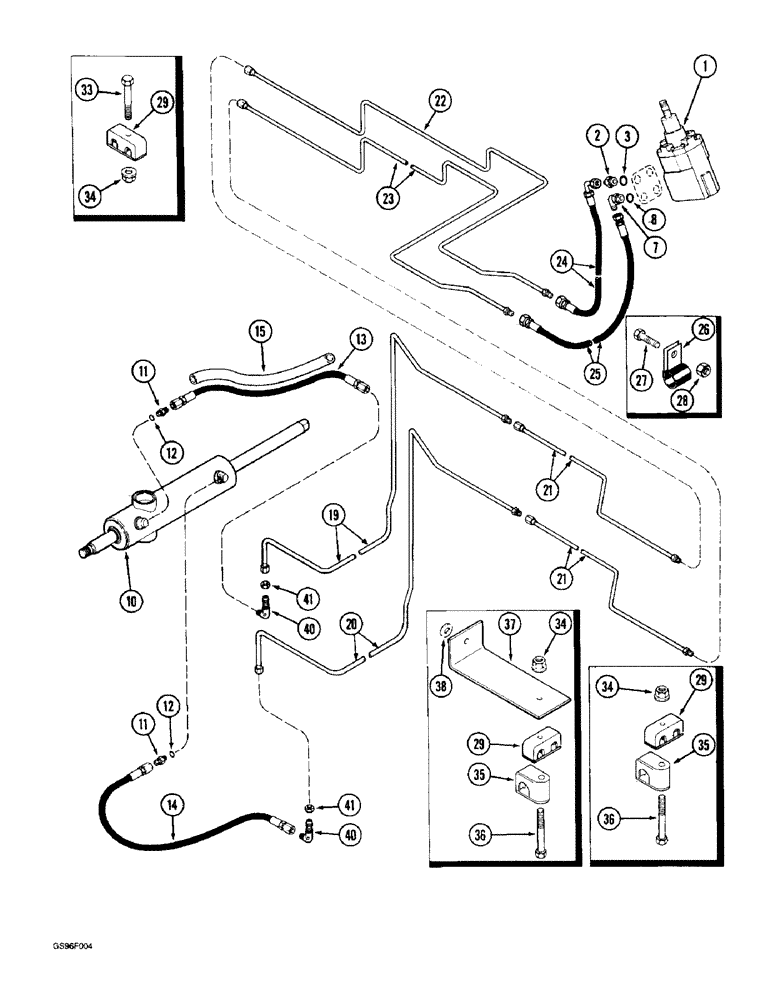

Запчасти Case IH 1800 (5-04) - STEERING SYSTEM, STEERING PUMP TO STEERING CYLINDER (04) - STEERING

1

1978328C3

PUMP

ASSEMBLY - steering, parts list page 5-9

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adjustable O-ring boss

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

REF

INSTRUCTION

CYLINDER ASSEMBLY - power steering, parts list page 5-11 or 5-23

1шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

2шт.

13

1284338C1

HYDRAULIC HOSE

HOSE - left-hand turn, rear

1шт.

14

1270453C1

HYDRAULIC HOSE

HOSE - right-hand turn, rear

1шт.

15

87137C1

HOSE PROTECTION,26.19 mm ID x 787.40 mm

Cut From Bulk Sleeve 87283C2 26.19 mm ID x 787.40 mm

2шт.

19

1329205C3

TUBE

- left-hand turn, third

1шт.

20

1329204C3

HYD TUBE

TUBE - right-hand turn, third

1шт.

21

1285305C3

HYD TUBE,0.375" OD, 1657.3, 124.4 mm Length

TUBE - left-hand and right-hand turn, second

2шт.

22

1285310C3

HYD TUBE

TUBE - left-hand turn, first

1шт.

23

1285303C3

TUBE

- right-hand turn, first

1шт.

24

1979139C1

HOSE

- left-hand turn, front, 53-1/8 inch (1350 mm) long

1шт.

25

1977125C1

HOSE

- right-hand turn, front, 52-3/8 inch (1330 inch) long

1шт.

26

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

4шт.

27

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

28

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

29

183825C1

CLAMP

- first and second turn tubes

8шт.

34

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

35

183822C1

CLAMP

- tube

2шт.

36

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

37

288201C1

SUPPORT

BRACKET - clamp support

1шт.

38

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

40

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- 90 degree, 9/16-18 inch flare x bulkhead flare

2шт.

41

425-159

JAM NUT,Jam, 9/16"-18, G5

- hex jam, 9/16 inch NF

2шт.

87283C2

HOSE,26.194 mm ID x 15240 mm Bulk

Sleeve 26.194 mm ID x 15240 mm Bulk

1шт.

33

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

6шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
