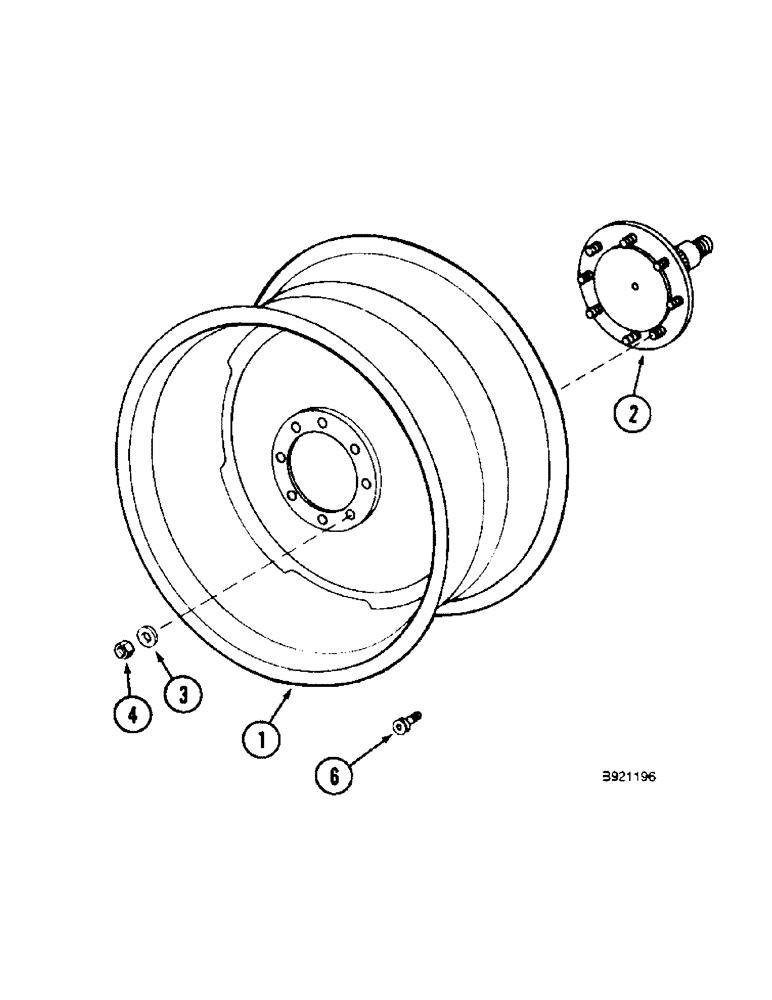

Запчасти Case IH 1800 (6-48) - DRIVE WHEEL (03) - POWER TRAIN

1

1278318C1

WHEEL

- drive, for use with 18.4-34 tires without mud shield and scraper attachment

2шт.

1

86969C1

RIM

WHEEL - drive, for use with 20.8-34 tires with mud shield and scraper attachment

2шт.

2

REF

INSTRUCTION

SHAFT - final drive, see page 6-47

2шт.

3

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

16шт.

4

429-1112

NUT,3/4"-16, G5

- hex, 3/4 inch NF, grade 8

16шт.

6

179482C1

VALVE STEM

VALVE - inflation, 7/16 inch diameter

2шт.
