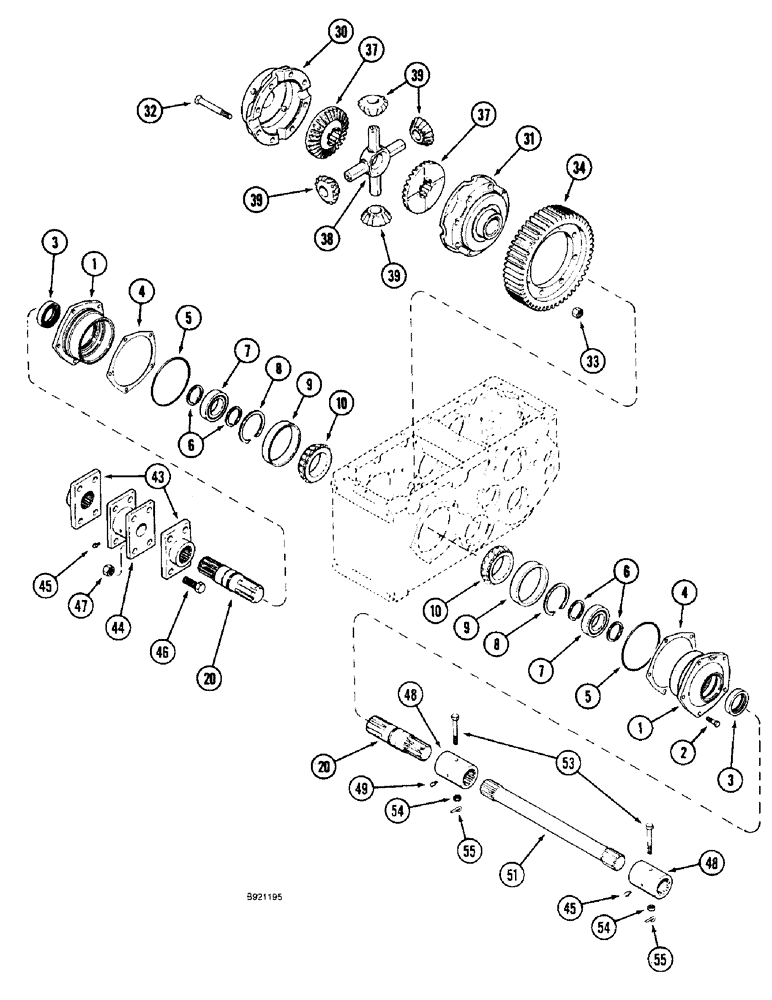

Запчасти Case IH 1800 (6-42) - TRANSMISSION (03) - POWER TRAIN

1349465C1

TRANSMISSION ASSEMBLY - harvester, differential

1шт.

1

379445R1

BEARING ASSY,61.9 mm ID x 76.2 mm

- bearing, differential

2шт.

2

326-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 8

Differential Hex, 3/8"-16 x 1 1/8", G8, Full Thd

10шт.

3

380182R91

OIL SEAL,42.42mm ID x 62.05mm OD x 8.41mm Thk

- oil, differential

2шт.

4

573976R1

DISC

SHIM - cage, 0.003 inch thick, differential

1шт.

4

573977R1

SHIM

- cage, 0.005 inch thick, differential

1шт.

4

573978R1

SHIM

- cage, 0.010 inch thick, differential

1шт.

5

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

Differential -247, 70 Duro, 4.609" ID x .139" Thk

2шт.

6

101-11177

SNAP RING,#177, 1.657", Ext

RING - external retaining, No. 177, differential

4шт.

7

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

BEARING - ball, differential shaft

2шт.

8

379485R1

RING

- snap, differential

2шт.

9

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP - tapered roller bearing (Replaces cup A26744), differential

2шт.

10

ST2039

BEARING CONE,68.26mm ID x 22.07mm W

BEARING - tapered roller, 2-11/16 inch ID, differential

2шт.

20

533847R3

SHAFT

- differential

2шт.

395631R92

PACKAGE

KIT - differential case

1шт.

30

NSS

NOT SOLD SEPARAT

HOUSING - differential, order kit 395631R92

1шт.

31

NSS

NOT SOLD SEPARAT

HOUSING - differential, order kit 395631R92

1шт.

32

395636R2

BOLT,1/2" - 20 x 3.87"

- differential case

8шт.

32

113-345

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

- hex, 7/16 NC x 3-1/2 inch, differential

2шт.

33

29-218

NUT,1/2"-20, G8, Hvy

- hex, 1/2 inch NF, grade 8, differential

8шт.

33

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC, Differential

2шт.

34

NSS

NOT SOLD SEPARAT

GEAR - driven, 53 tooth, order kit 395631R92, differential

1шт.

37

360962R2

GEAR

- differential bevel, 28 tooth

2шт.

38

388093R1

U-JOINT SPIDER

SPIDER - differential

1шт.

39

360961R1

GEAR

- differential spider, 15 tooth

4шт.

43

214639C1

HUB

- axle DRIVE

3шт.

44

1278328C3

SPACER

- axle DRIVE

1шт.

45

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch, Axle

1шт.

46

414077C1

BOLT,Hex, 5/8" - 18 x 1 3/4"

- hex, 5/8 NC x 1-3/4 inch DRIVE AXLE

8шт.

47

414089C1

FLANGE NUT,5/8" - 18

NUT - hex, 5/8 inch NC DRIVE AXLE

8шт.

48

184342C1

COUPLING

ASSEMBLY - axle shaft DRIVE

2шт.

49

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch, Axle

1шт.

51

1288901C1

SHAFT

- drive AXLE

1шт.

53

27652R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex drilled, 3/8 NC x 3 inch, grade 8 DRIVE AXLE

2шт.

54

654049R1

LOCK NUT

- hex, self-locking, 3/8 inch NC DRIVE AXLE

2шт.

55

21864R1

COTTER PIN

- retaining, S-type DRIVE AXLE

2шт.
