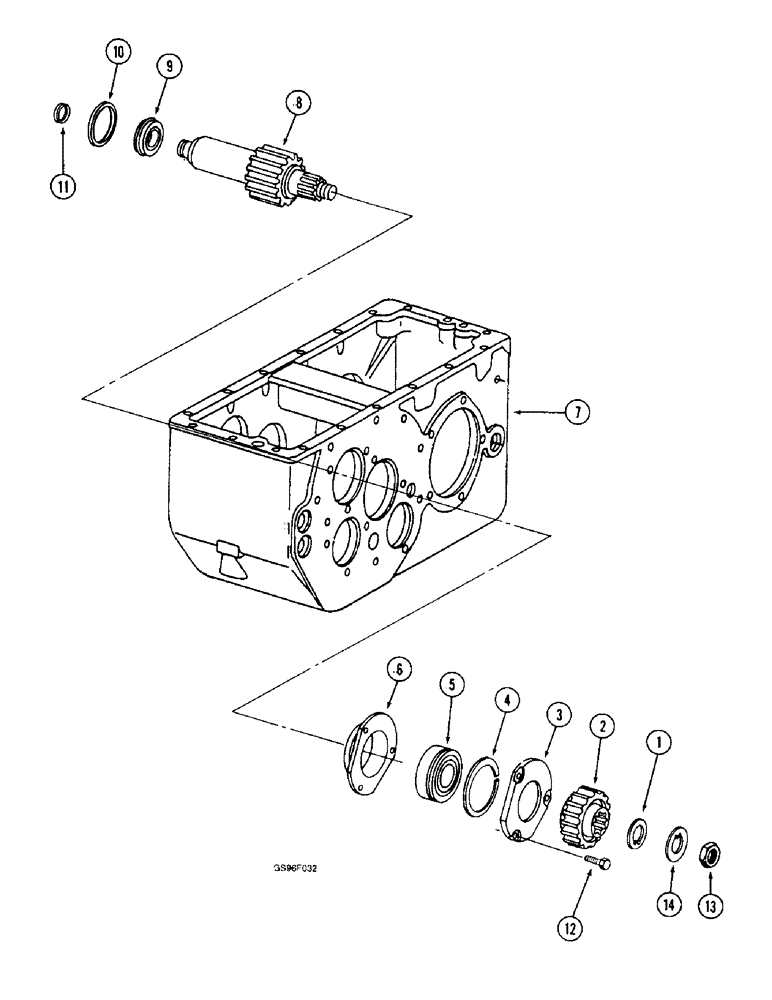

Запчасти Case IH 1800 (6-38) - TRANSMISSION, INTERMEDIATE SHAFT (03) - POWER TRAIN

1349465C1

TRANSMISSION ASSEMBLY - harvester

1шт.

1

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

- flat, intermediate shaft

1шт.

2

402840R1

GEAR

- driven, 28 tooth

1шт.

3

395645R1

RETAINER

- bearing

1шт.

4

934593R1

CIRCLIP,#80, 75.4 x 4.85 x 1.7

RING - snap, bearing

1шт.

5

395643R91

BEARING, ROLLER, CYL,40mm ID x 80mm OD x 30.1mm W

- intermediate shaft, 3-5/32 inch OD

1шт.

6

395644R2

NEEDLE BEARING CAGE

CAGE - intermediate shaft bearing

1шт.

7

184079C1

CASE

- transmission, see page 6-33

1шт.

8

402839R1

SHAFT

- gear, 17 tooth

1шт.

9

ST364

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING - ball, 2-7/16 inch OD, intermediate shaft

1шт.

10

404207R1

RING,61.6mm ID x 68.4mm OD x 2.54mm Thk

- transmission case square seal

1шт.

11

370504R1

RING

- retaining, bearing, 1-1/16 inch ID

1шт.

12

310-1514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 8

- hex, self-locking, 5/16 NC x 7/8 inch, grade 8

3шт.

13

382879R1

NUT

- hex, intermediate shaft

1шт.

14

382900R1

LOCK WASHER

- lock, intermediate shaft

1шт.
