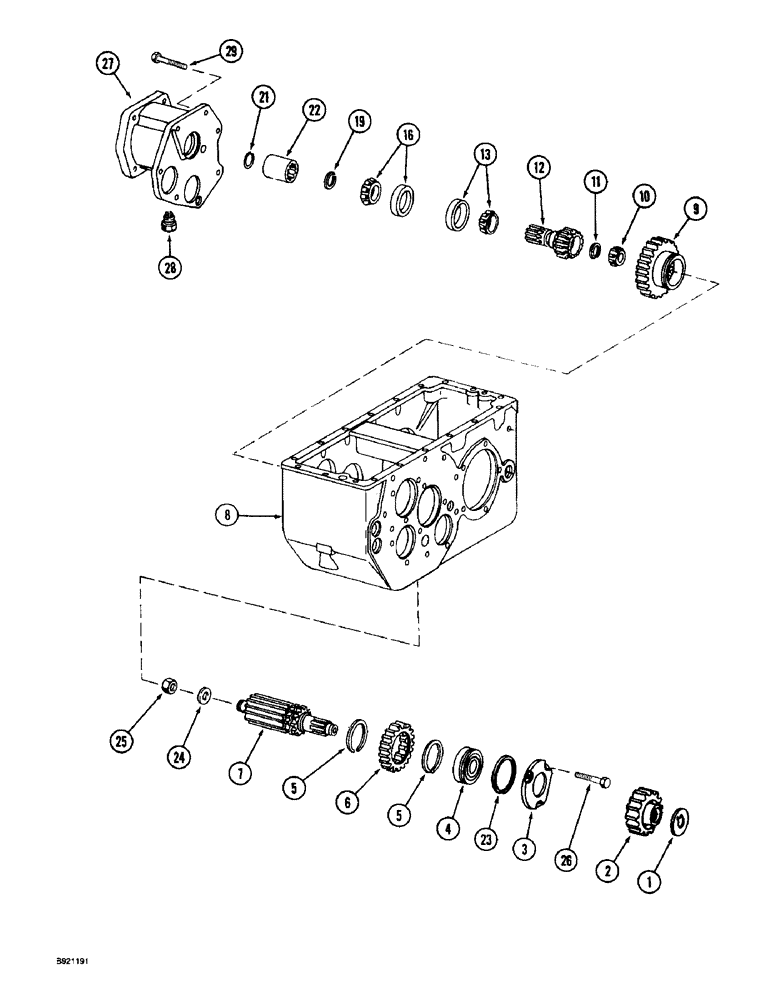

Запчасти Case IH 1800 (6-34) - TRANSMISSION, INPUT DRIVE SHAFT (03) - POWER TRAIN

1349465C1

TRANSMISSION ASSEMBLY - harvester

1шт.

1

382900R1

LOCK WASHER

- lock, input drive shaft

1шт.

2

402845R1

GEAR

- change drive, 27 tooth

1шт.

3

379481R1

RETAINER

- shaft bearing

1шт.

4

379438R91

ROLLER BEARING,34.99mm ID x 80mm OD x 21mm W

- straight roller, 3-5/32 inch OD

1шт.

5

100070R1

RING

- input shaft drive shaft snap

2шт.

6

402844R1

GEAR

- driven, 30 tooth

1шт.

7

402842R3

SHAFT

- input drive

1шт.

8

184079C1

CASE

- transmission, see page 6-33

1шт.

9

395652R1

GEAR

- first and third sliding, 20 and 38 tooth

1шт.

10

358035R91

BEARING, ROLLER, CYL,25mm ID x 44.82mm OD x 20.64mm W

- straight roller, 1-49/64 inch OD, input pinion shaft

1шт.

11

A32438

SNAP RING

RING - snap, 57/64 inch ID, input pinion shaft

1шт.

12

402846R2

SHAFT

- input pinion

1шт.

13

671028R91

BEARING ASSY,38.1mm ID x 72.02mm OD x 20.64mm W

- tapered roller, inner pinion shaft

1шт.

16

184076C91

BEARING ASSY,33.45mm ID x 69.04mm OD x 19.9mm W

BEARING - tapered roller, outer pinion shaft

1шт.

19

A21619

CIRCLIP

RING - snap, 1-17/64 inch ID, pinion shaft bearing

1шт.

80644C91

SPLINED COUPLING

COUPLING ASSEMBLY - input pinion shaft

1шт.

21

402848R1

RING

- retaining

1шт.

22

NSS

NOT SOLD SEPARAT

COUPLING ASSEMBLY- shaft, order coupling assembly 80644C91

1шт.

23

934593R1

CIRCLIP,#80, 75.4 x 4.85 x 1.7

RING - snap, input drive shaft bearing

1шт.

24

382901R1

LOCK WASHER,26.16mm ID x 47.8mm OD x 3.18mm Thk

- flat, input drive shaft

1шт.

25

382879R1

NUT

- hex, input drive shaft

1шт.

26

310-1514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 8

- hex, self-locking, 5/16 NC x 7/8 inch, grade 8

3шт.

27

402849R1

HOUSING

- hydrostatic motor

1шт.

28

700518C1

PLUG

- magnetic, 1/4 inch PT

1шт.

29

326-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

7шт.
