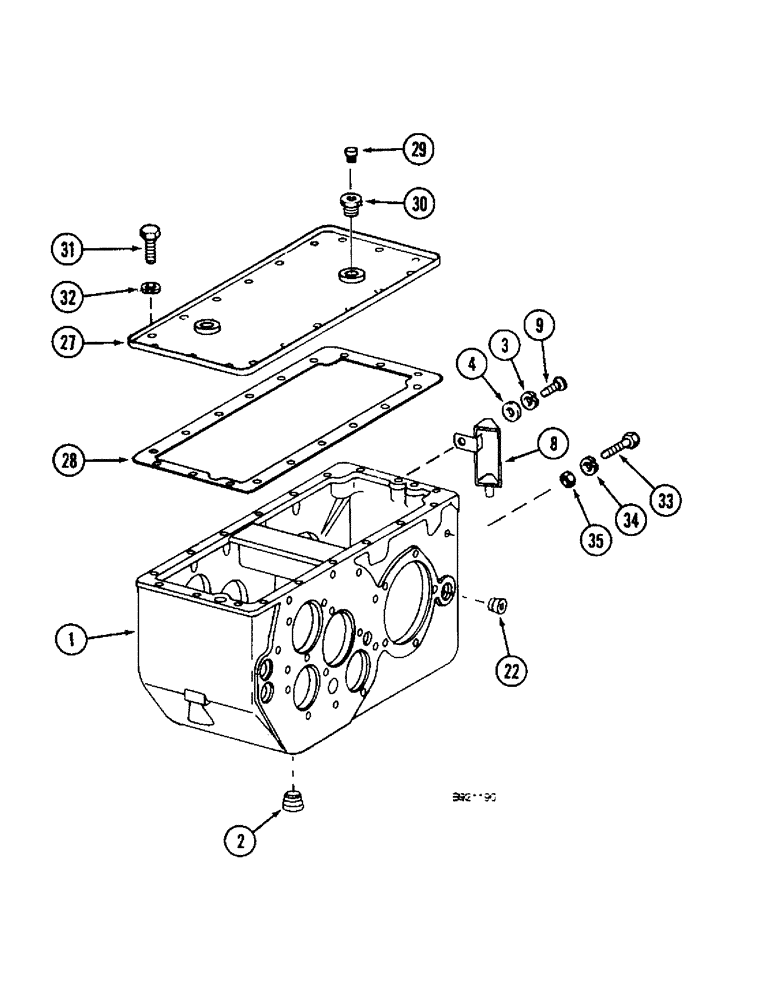

Запчасти Case IH 1800 (6-32) - TRANSMISSION, HOUSING (03) - POWER TRAIN

1349465C1

TRANSMISSION ASSEMBLY - harvester

1шт.

1

184079C1

CASE

HOUSING - transmission

1шт.

2

221-887

PLUG

- square socket, 3/4 inch PT

2шт.

3

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

1шт.

4

95-81115

WASHER,#12

- flat, 1/4 x 9/16 x 3/64 inch

1шт.

8

402838R1

TROUGH

- oil

1шт.

9

470-12510

SCREW,Slotted Pan Hd, 1/4"-20 x 5/8"

- machine, pan head slotted, 1/4 NC x 5/8 inch

1шт.

22

217-442

PLUG,3/4" - 14

- hex socket, 3/4 inch PT (Replaces plug 444595)

1шт.

27

184074C2

COVER

- transmission housing

1шт.

28

573998R2

GASKET

- transmission case cover

1шт.

29

219-436

BREATHER,3/8" - 18 NPT, Short, W/ Washer

- straight, 3/8 PT x 1-1/2 inch

1шт.

30

217-46

REDUCER,3/4" - 14 NPTF x 3/8" - 18 Fem NPTF

- 3/4 PT x 3/8 inch female PT

1шт.

31

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

15шт.

32

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

15шт.

33

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

33

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

35

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
