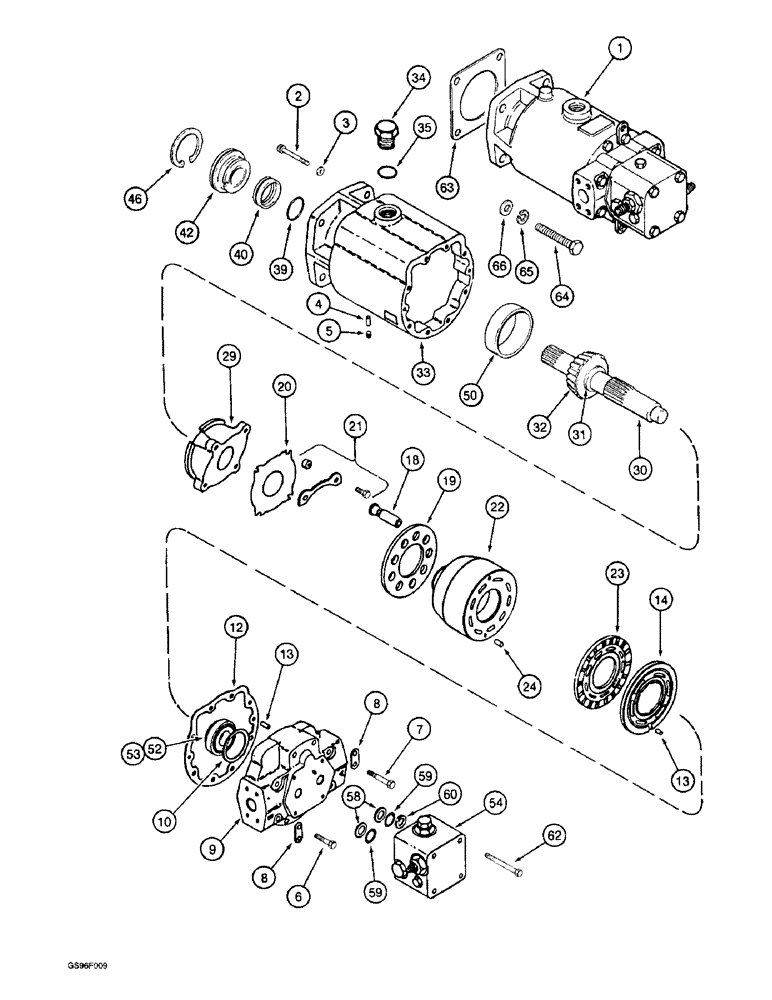

Запчасти Case IH 1800 (6-26) - HYDROSTATIC MOTOR (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1286305C93
MOTOR, HYDRAULIC
Hydraulic Motor
1шт.
1286306C92
REMAN-HYDROSTAT MOTO
MOTOR ASSEMBLY - hydrostatic, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly
1шт.
1978049C1
CORE-HYDROSTAT MOTOR
CORE ASSEMBLY - motor, use this part number to return motor core for credit when using a remanufactured assembly
1шт.
1
1286305C93
MOTOR, HYDRAULIC
MOTOR ASSEMBLY - hydrostatic, new
1шт.
2
61-33148
HEX SOC SCREW,5/16"-18 x 3"
SCREW, Hex Soc Hd, 5/16"-18 x 3"
2шт.
3
92734C1
SEALING WASHER
WASHER - sealing
2шт.
4
37-1516
DOWEL,5/16" x 1"
PIN - dowel, 5/16 x 1 inch, hardened
1шт.
5
217-430
PLUG,Hex Soc, 1/8" - 27 NPTF
PLUG - hex socket headless, 1/8 inch PT
1шт.
6
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
BOLT - hex, 3/8 NC x 1-1/2 inch
2шт.
7
413-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
BOLT - hex, 3/8 NC x 2-3/4 inch
6шт.
8
NSS
NOT SOLD SEPARAT
STRAP - shipping
2шт.
9
NSS
NOT SOLD SEPARAT
COVER - end
1шт.
140760C91
SHIM KIT
KIT - bearing shim
1шт.
10
NSS
NOT SOLD SEPARAT
SHIM - 0.003 inch, order kit 140760C91
1шт.
10
NSS
NOT SOLD SEPARAT
SHIM - 0.005 inch, order kit 140760C91
1шт.
10
NSS
NOT SOLD SEPARAT
SHIM - 0.010 inch, order kit 140760C91
1шт.
10
NSS
NOT SOLD SEPARAT
SHIM - 0.015 inch, order kit 140760C91
1шт.
10
NSS
NOT SOLD SEPARAT
SHIM - 0.020 inch, order kit 140760C91
1шт.
10
NSS
NOT SOLD SEPARAT
SHIM - 0.030 inch, order kit 140760C91
1шт.
12
92735C2
GASKET
GASKET - end cover
1шт.
13
140754C1
PIN
PIN - dowel, 5/16 x 5/8 inch
5шт.
14
92732C1
PLATE
PLATE - valve
1шт.
1978053C1
KIT
KIT - rotating, cylinder
1шт.
18
NSS
NOT SOLD SEPARAT
PISTON - cylinder, order kit 1978053C1
9шт.
19
NSS
NOT SOLD SEPARAT
PLATE - retaining, order kit 1978053C1
1шт.
20
NSS
NOT SOLD SEPARAT
PLATE - retaining, clear, order kit 1978053C1
1шт.
21
NSS
NOT SOLD SEPARAT
KIT - hold down, order kit 1978053C1
1шт.
22
NSS
NOT SOLD SEPARAT
BARREL - cylinder, order kit 1978053C1
1шт.
23
NSS
NOT SOLD SEPARAT
PLATE - bearing, order kit 1978053C1
1шт.
24
140754C1
PIN
PIN - dowel, 5/16 x 5/8 inch
2шт.
29
NSS
NOT SOLD SEPARAT
PLATE - swash, order kit 1978053C1
1шт.
REF
INSTRUCTION
MOTOR ASSEMBLY - hydrostatic, continued
1шт.
30
1346188C1
SHAFT
SHAFT ASSEMBLY - output
1шт.
31
NSS
NOT SOLD SEPARAT
RING - retaining, order shaft assembly 1346188C1
1шт.
32
92742C1
TAPERED BEARING
BEARING - tapered roller, 1-7/8 inch ID
1шт.
33
NSS
NOT SOLD SEPARAT
HOUSING - motor, order motor assembly
1шт.
34
218-5158
PLUG,Hex Hd, 1 1/16"-12 ORB
PLUG, Hex Hd, 1 1/16"-12 ORB
1шт.
35
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
O-RING, 12-1, 90 Duro, .924 ID x .116" Thk
1шт.
1346205C1
SEAL KIT
SEAL ASSEMBLY - shaft, three-piece
1шт.
39
NSS
NOT SOLD SEPARAT
O-RING - shaft, order seal assembly 1346205C1
2шт.
40
NSS
NOT SOLD SEPARAT
SEAL - shaft, rotating, order seal assembly 1346205C1
1шт.
42
NSS
NOT SOLD SEPARAT
SEAL - shaft, stationary, order seal assembly 1346205C1
1шт.
46
606937C1
SNAP RING,2.835", Int, #281
Ring, Snap, 2.835", Int, #281
1шт.
50
317706C1
BEARING, CUP,88.925 mm OD x 25.6 mm
CUP - tapered roller bearing, 3-1/2 inch OD, drive shaft
1шт.
52
140758C91
ROLLER BEARING,0.88" ID x 2.25" OD x 0.6875"
BEARING - tapered roller, 5/8 inch ID, end cover
1шт.
53
140759C1
BEARING CUP
CUP - tapered roller bearing, 2-1/4 inch OD, end cover
1шт.
54
1971432C2
VALVE
BLOCK ASSEMBLY - relief valve, parts list page 6-31
1шт.
58
631458C1
RING
RING - backup
2шт.
59
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
O-RING, -018, 90 Duro, .739" ID x .070" Thk
2шт.
62
413-664
BOLT,Hex, 3/8" - 16 x 4", Gr 5
BOLT - hex, 3/8 NC x 4 inch
4шт.
63
166506C1
GASKET,0.81mm Thk
GASKET - mounting
1шт.
64
113-2410
SCREW
BOLT - hex, 1/2 NC x 1-3/4 inch (Replaces bolt 27406R1)
4шт.
65
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
4шт.
66
396-21053
WASHER,17/32" x 1 1/16" x .134"
WASHER, , Hardened 17/32" x 1 1/16" x .134"
4шт.
Выбрано товаров: 56
