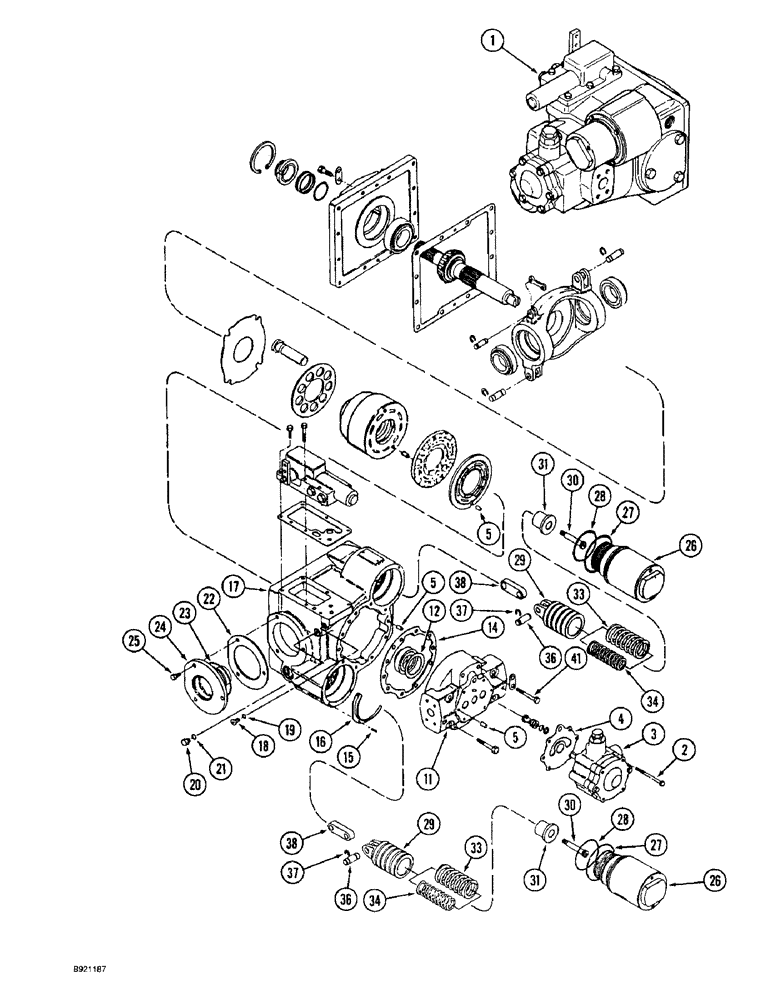

Запчасти Case IH 1800 (6-18) - HYDROSTATIC PUMP (03) - POWER TRAIN

1976869C2

REMAN-HYD PUMP

PUMP ASSEMBLY - hydrostatic, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly

1шт.

1976870C1

CORE-HYDRAULIC PUMP

CORE ASSEMBLY - pump, use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

1976868C3

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, new (Replaces pump assembly 1976868C2)

1шт.

2

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

4шт.

3

REF

INSTRUCTION

PUMP ASSEMBLY - charge, parts list page 6-25

1шт.

4

133760C2

GASKET

- charge pump

1шт.

5

140754C1

PIN

- dowel, 5/16 x 5/8 inch

7шт.

11

NSS

NOT SOLD SEPARAT

COVER - end pump

1шт.

140760C91

SHIM KIT

KIT - shim, end cover (replaces 140783C91)

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.003 inch, order kit 140783C91

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, order kit 140783C91

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, order kit 140783C91

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch, order kit 140783C91

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch, order kit 140783C91

1шт.

12

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch, order kit 140783C91

1шт.

14

140756C2

GASKET

- end cover

1шт.

15

461-3086

HEX SOC SCREW,#8 - 32 x 3/8"

BOLT, Hex Soc Hd, #8-32 x 3/8"

6шт.

16

140774C1

RETAINER

- servo piston

2шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - pump, order pump assembly

1шт.

18

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

19

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

20

9672438

PLUG,7/16" - 20 ORB

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

142386C91

SHIM KIT

KIT - shim, trunnion bearing

1шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.002 inch, order kit 142386C91

6шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, order kit 142386C91

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, order kit 142386C91

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.015 inch, order kit 142386C91

4шт.

22

NSS

NOT SOLD SEPARAT

SHIM - 0.025 inch, order kit 142386C91

4шт.

23

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

2шт.

24

NSS

NOT SOLD SEPARAT

TRUNNION - pump, order pump assembly

2шт.

25

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

6шт.

26

140773C1

KIT

SLEEVE - servo

2шт.

27

238-5147

O-RING,0.103" Thk x 2.675" ID, -147, Cl 5, 75 Duro

2шт.

28

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

29

1980166C1

PISTON

ASSEMBLY - servo

2шт.

30

NSS

NOT SOLD SEPARAT

SCREW - hex socket, order piston assembly 1980166C1

1шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - servo spring, order piston assembly 1980166C1

1шт.

33

NSS

NOT SOLD SEPARAT

SPRING - servo, heavy, order piston assembly 1980166C1

1шт.

34

NSS

NOT SOLD SEPARAT

SPRING - servo, normal, order piston assembly 1980166C1

1шт.

36

NSS

NOT SOLD SEPARAT

PIN - link, order piston assembly 1980166C1

1шт.

37

NSS

NOT SOLD SEPARAT

RING - link retaining, order piston assembly 1980166C1

2шт.

38

NSS

NOT SOLD SEPARAT

LINK - servo, order piston assembly 1980166C1

1шт.

41

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

6шт.
