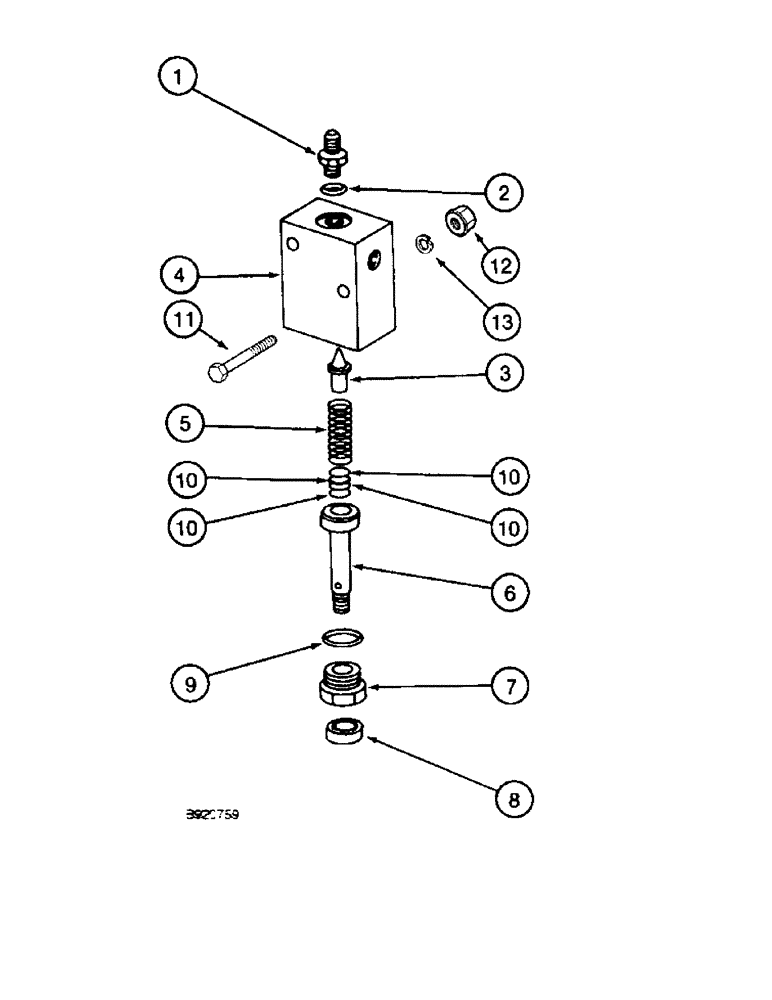

Запчасти Case IH 1800 (6-14) - FOOT-N-INCH VALVE (03) - POWER TRAIN

398705R91

VALVE

ASSEMBLY - Foot-N-Inch

1шт.

1

398709R2

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 JIC

- poppet valve

1шт.

2

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

3

398710R1

VALVE POPPET

POPPET - valve

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly 398705R91

1шт.

5

398731R1

SPRING

- valve

1шт.

6

398708R1

STOP

ROD - poppet spring

1шт.

7

398707R1

GUIDE

RETAINER - oil seal

1шт.

8

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

- oil

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

530575R91

SHIM KIT

KIT - shim, relief valve

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, order kit 530575R91

4шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch, order kit 530575R91

4шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch, order kit 530575R91

2шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 0.042 inch, order kit 530575R91

1шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

11

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

12

231-5146

FLANGE NUT,3/8"-16

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.
