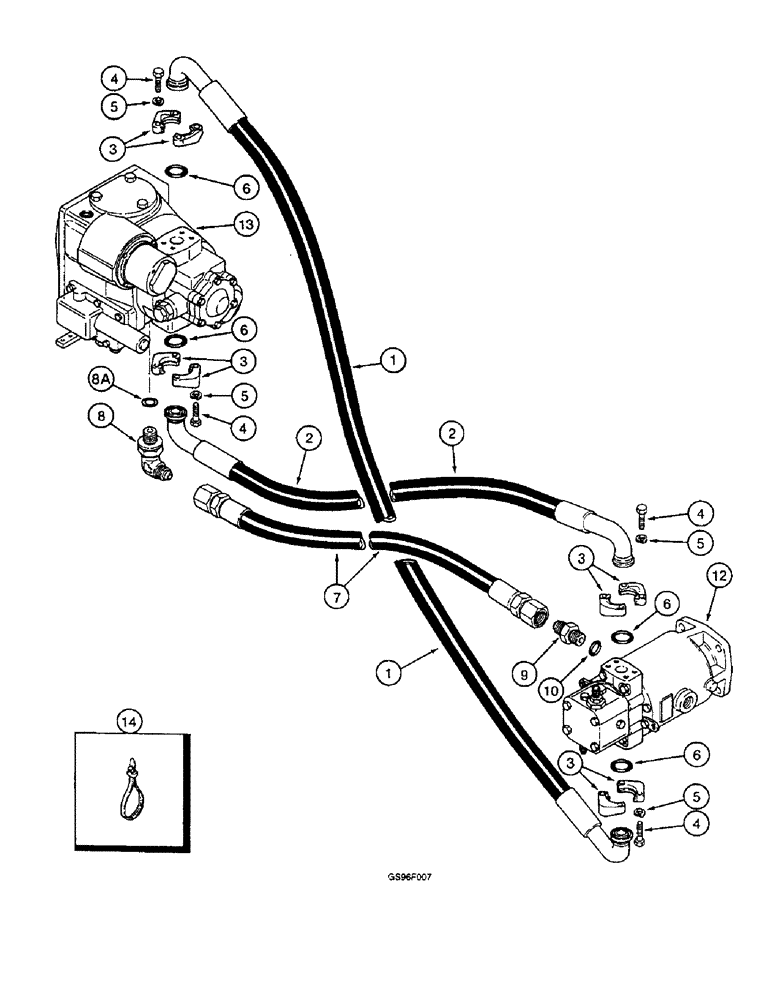

Запчасти Case IH 1800 (6-08) - HYDROSTATIC PUMP AND MOTOR SYSTEM (03) - POWER TRAIN

1

1260301C3

HOSE

- forward pressure, prior to P.I.N. JJC133070

1шт.

1

1541334C1

HYDRAULIC HOSE,1.00" ID x 31.00"

- Forward pressure, P.I.N. JJC133070 and after 1.00" ID x 31.00"

1шт.

2

1260300C3

HOSE

- reverse pressure, prior to P.I.N. JJC133070

1шт.

2

1260301C3

HOSE

- reverse pressure, P.I.N. JJC133070 and after

1шт.

3

877949C2

CLAMP

- hose

8шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

16шт.

5

492-11038

LOCK WASHER,3/8"

16шт.

6

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

7

1339197C1

HOSE

- motor drain

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adjustable O-ring boss

1шт.

8a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

REF

INSTRUCTION

MOTOR - hydrostatic, parts list page 6-27

1шт.

13

REF

INSTRUCTION

PUMP - hydrostatic, parts list page 6-19

1шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

4шт.
