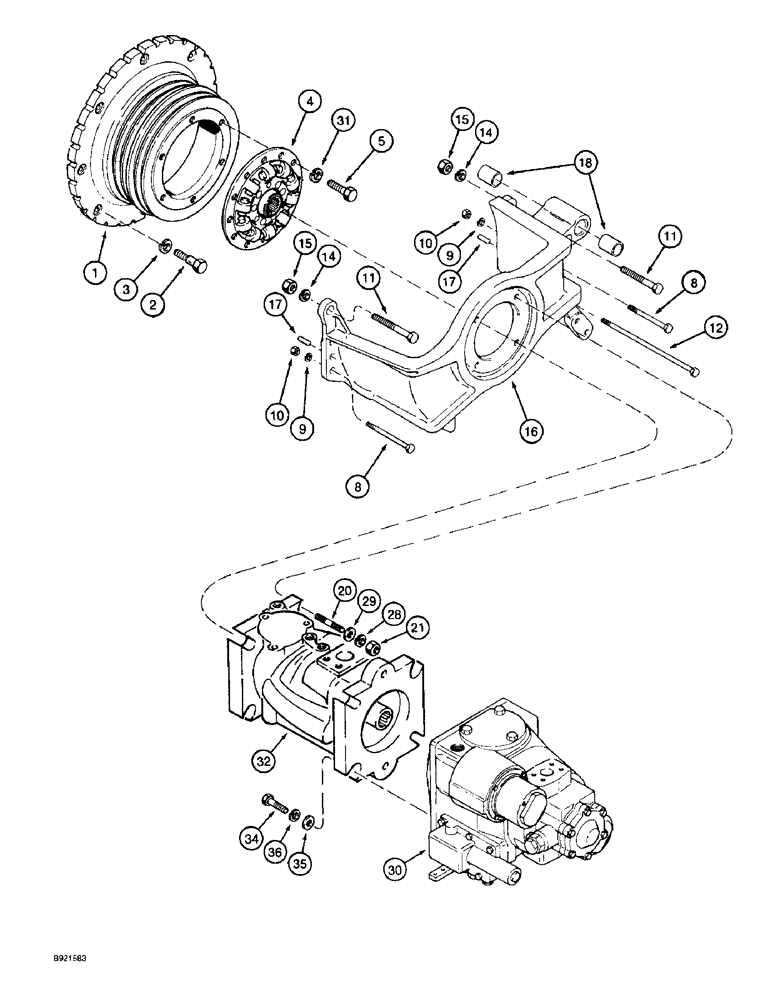

Запчасти Case IH 1800 (6-07A) - FAN DRIVE HOUSING, PULLEY, AND HYDROSTATIC PUMP DRIVE PLATE P.I.N. JJC133070 AND AFTER (03) - POWER TRAIN

1

1338629C1

PULLEY

- drive, fan

1шт.

2

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

3

392-21038

LOCK WASHER,3/8"

3/8"

8шт.

4

131366C1

LARGE PLATE

PLATE - drive

1шт.

5

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

6шт.

8

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

3шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

11

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

12

113-2431

BOLT,Hex, 1/2" - 13 x 11", Gr 5

1шт.

14

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

15

425-1012

NUT,3/4"-10, G5

2шт.

1990144C3

HOUSING

ASSEMBLY - pulley

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING - pulley, order housing assembly 1990144C3

1шт.

17

37-1816

DOWEL,1/2" x 1"

PIN - dowel, 1/2 x 1 inch, hardened

2шт.

18

87800C1

BUSHING,25.53mm ID x 31.81mm OD x 38.1mm L

- oilite, 1 inch

2шт.

20

1338122C1

STUD

- unit drive pump to pulley housing, 1/2 inch NC

4шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

29

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened 17/32" x 1 1/16" x .134"

4шт.

30

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, parts list page 6-19

1шт.

31

492-11038

LOCK WASHER,3/8"

6шт.

32

1998916C1

PUMP, HYDRAULIC

PUMP ASSEMBLY - unit drive, also see pages 8-49 - 8-53

1шт.

33

1542989C1

SEAL

- shaft, unit drive pump, not shown

2шт.

238-5159

O-RING,0.103" Thk x 4.987" ID, -159, Cl 5, 75 Duro

1шт.

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

34

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Hydrostatic pump to unit drive pump Hex, 1/2"-13 x 2", G5

4шт.

35

495-81268

WASHER - flat, 17/32 x 1-1/2 x 9/32 inch

4шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.
