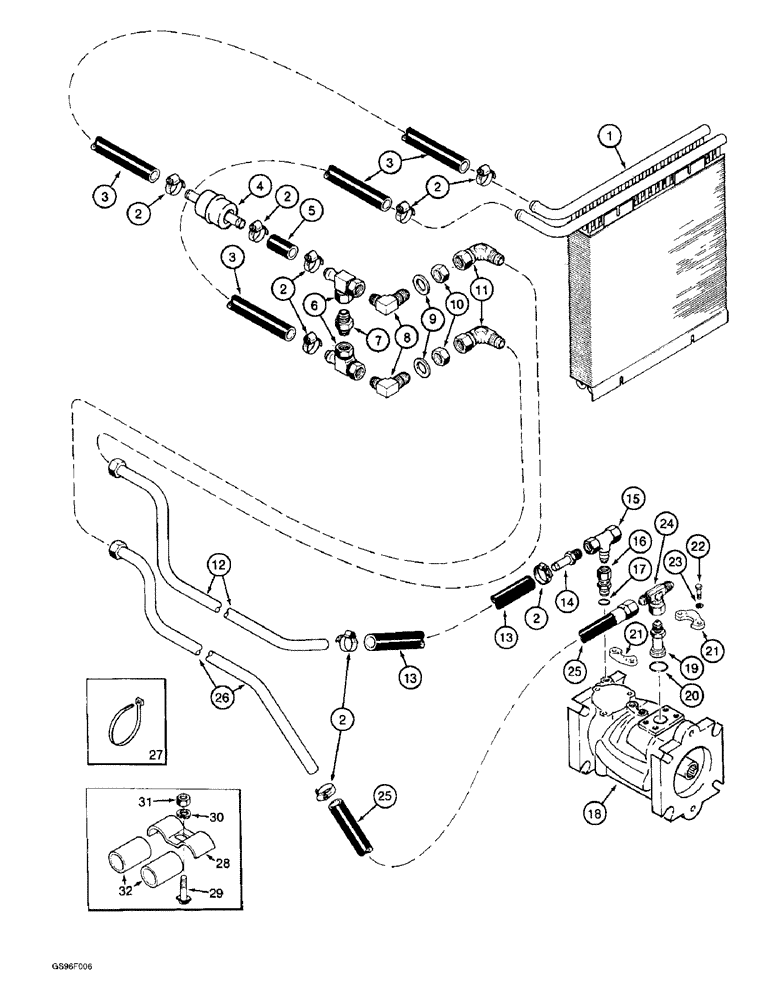

Запчасти Case IH 1800 (6-03A) - OIL COOLER SYSTEM, P.I.N. JJC133070 AND AFTER (03) - POWER TRAIN

1

REF

INSTRUCTION

COOLER ASSEMBLY - hydraulic oil, parts list page 6-5

1шт.

2

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

9шт.

3

NSS

NOT SOLD SEPARAT

HOSE - 49 inch (1245 mm) long, cut from bulk hose 364361C1 below

2шт.

4

1541319C1

FILTER, ENGINE OIL

FILTER - hydraulic, in-line

1шт.

5

NSS

NOT SOLD SEPARAT

HOSE - 3 inch (1245 mm) long, cut from bulk hose 364361C1 below

2шт.

6

86893C1

FITTING

TEE - special 3-way, 1 inch

2шт.

7

86892C2

VALVE

- oil cooler check

1шт.

8

218-698

ELBOW,90 Degree Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

- 90 degree, 1-5/16-12 inch flare x bulkhead flare

2шт.

9

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

- flat, 1-11/32 x 2 x 7/64 inch

2шт.

10

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

2шт.

11

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel

2шт.

12

1285307C3

HYD TUBE,1" OD, 985.8, 269.7 mm Length

TUBE - cooler supply

1шт.

13

1541323C1

HOSE

- oil cooler to unit drive pump, 22 inch (559 mm) long

1шт.

14

1541241C1

FITTING

- 1 inch hose barb

1шт.

15

1541321C1

TEE

- special

1шт.

16

1541320C1

ADAPTER

- special

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

1998916C1

PUMP, HYDRAULIC

PUMP ASSEMBLY - unit drive, parts list page 6-7B

1шт.

19

1541240C1

ADAPTER

- 1-5/8-12 inch flare x 2 inch O-ring

1шт.

20

238-8228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 8, 90 Duro

- 2-1/4 ID x 1/8 inch wide

1шт.

21

1541237C1

FIXING BRACKET

FLANGE - adapter, two piece

1шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

24

218-839

TEE,37 Degree, 1 5/8"-12 x 1 5/8"-12, Fem Sw Br

- 1-5/8-12 inch swivel branch x flare x flare

1шт.

25

1541324C1

HOSE

- return, unit drive pump to oil cooler, 26 inch (660 mm) long

1шт.

26

1285308C3

HYD TUBE

TUBE - cooler return

1шт.

27

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

2шт.

28

157678C1

CLAMP

- hydraulic tube

1шт.

29

111-123

CARRIAGE BOLT,1/4"- 20 x 5 1/2"

BOLT - carriage, 1/4 NC x 5-1/4 inch, grade 2

1шт.

30

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

32

1285771C1

PLASTIC-RUBBER TUBE

STRIP - tube clamp, 1 inch

2шт.

364361C1

HOSE

- bulk, 1 (25) x 600 inch (15240 mm) long

1шт.
