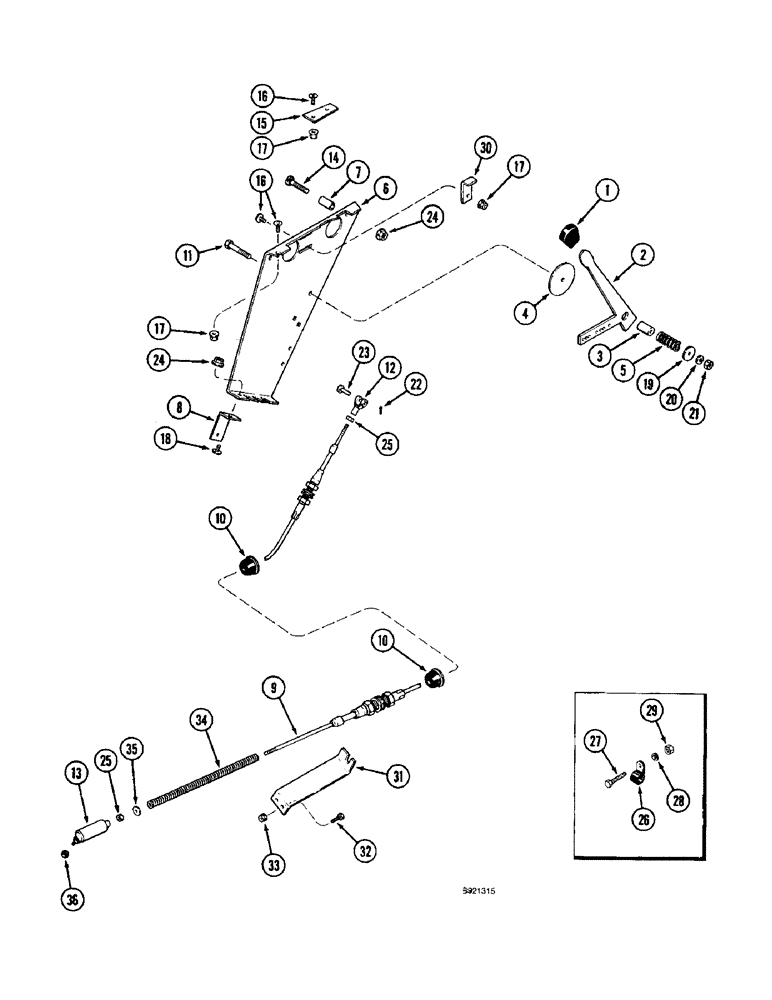

Запчасти Case IH 1800 (3-12) - THROTTLE CONTROLS (02) - FUEL SYSTEM

1

1259760C1

BALL KNOB

KNOB - throttle lever (Replaces knob 120197C2)

1шт.

2

1301183C96

LEVER ASSY.

LEVER - throttle control (Replaces lever 1301183C94)

1шт.

3

154397C1

SPACER,5/8" Tube x 1 1/4"

- tubular, 5/8 OD x 1-1/4 inch long

1шт.

4

941133C1

WASHER

- throttle lever

1шт.

5

PO22

SPRING

- throttle control lever

1шт.

6

1977092C4

SUPPORT

- throttle control

1шт.

7

K11064

SPACER,3/8" Pipe x 1 1/4"

- 3/8 ID x 1-1/4 inch

2шт.

8

1301242C1

BRACKET

ANGLE - throttle support

1шт.

9

1329385C1

CABLE

- throttle

1шт.

10

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

- rubber, 3/8 inch ID, throttle cable grain tank

2шт.

11

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

12

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, No. 10 NF x 1-9/16 inch

1шт.

13

1977009C4

BALL JOINT

JOINT - ball, No. 10 NF (Replaces joing 1977009C3)

1шт.

14

12-632

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G2

2шт.

15

1329861C2

PLATE

- throttle control, no longer used

1шт.

16

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

5шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

18

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

19

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch

1шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

23

427-3071

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch, hardened

1шт.

24

231-5146

FLANGE NUT,3/8"-16

3шт.

25

225-14210

NUT,#10-32

3шт.

26

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

2шт.

27

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

30

1338891C4

ANGLE

- throttle stop

1шт.

31

1979324C3

SUPPORT

- throttle cable

1шт.

32

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch

2шт.

33

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

34

1979551C1

SPRING

- return, throttle

1шт.

35

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

- flat, 13/64 x 3/4 x 1/16 inch

1шт.

36

425-114

NUT,1/4"-28, G5

1шт.
