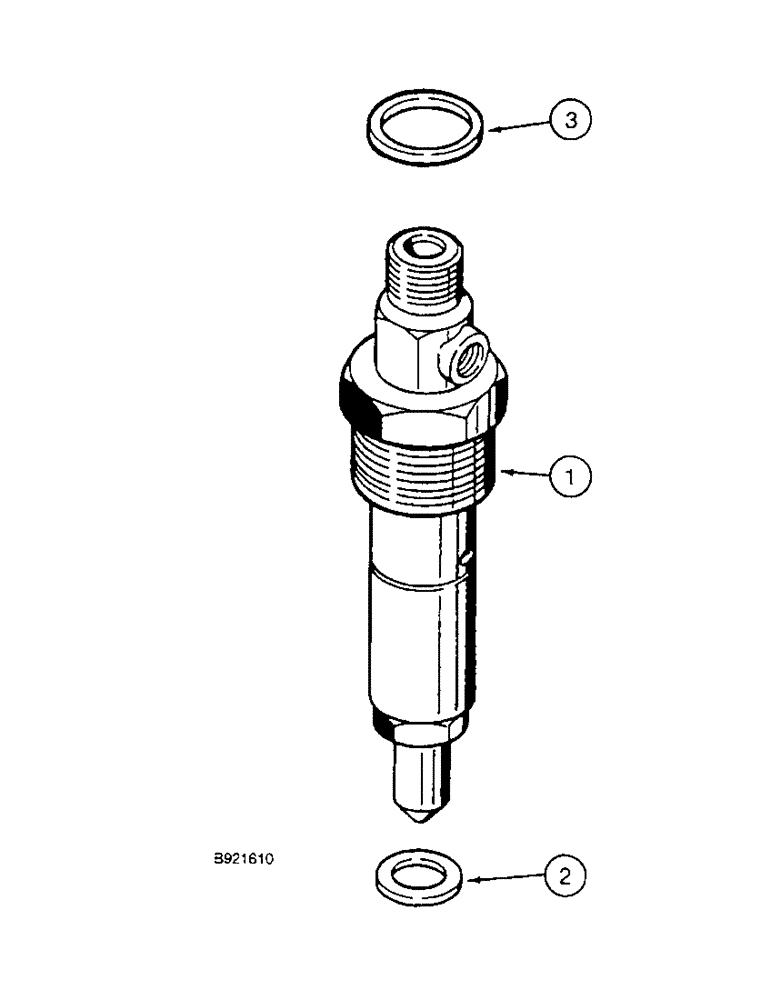

(3-08) - FUEL INJECTION NOZZLE, 6TA-590 ENGINE

Запчасти Case IH 1800 (3-08) - FUEL INJECTION NOZZLE, 6TA-590 ENGINE (02) - FUEL SYSTEM

Схема запчастей Case IH 1800 - (3-08) - FUEL INJECTION NOZZLE, 6TA-590 ENGINE (02) - FUEL SYSTEM
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J919332

INJECTOR ASSY.

NOZZLE ASSEMBLY - fuel injection, 7 mm tip

6шт.

1

JR919332

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

1

JC919332

CORE-FUEL INJECTOR

Return No, INJECTION NOZZLE

6шт.

2

J906659

SEAL

injector nozzle, Replaces seal J920174

1шт.

Whenever a nozzle is removed from the cylinder head, J906659 seal must be replaced.

1шт.

3

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - sealing, Serial Range: body-nut

6шт.
