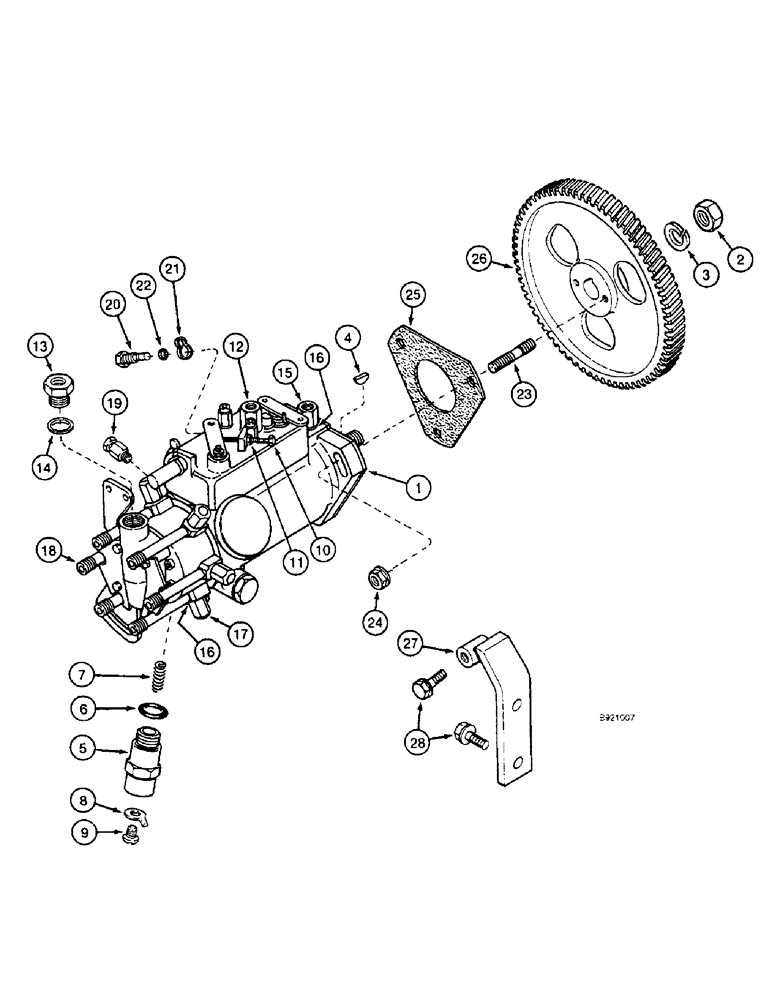

Запчасти Case IH 1800 (3-06) - FUEL INJECTION PUMP AND DRIVE, 6TA-590 ENGINE (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
J915155
PUMP, FUEL INJECTION
PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new
1шт.
1
JR915155
REMAN-INJECTION PUMP
PUMP ASSEMBLY - fuel injection, remanufactured, component parts shown on this page do not apply to the remanufactured assembly
1шт.
1
JC915155
CORE-INJECTION PUMP
Return Number - use this part number to return pump core for credit when using a remanufactured assembly
1шт.
2
J903738
NUT
NUT - hex, special, 14 mm - 2.0
1шт.
3
492-11056
LOCK WASHER,9/16"
WASHER, LOCK, 9/16"
1шт.
4
126-112
WOODRUFF KEY,#6, 5/32" x 5/8", HT
WOODRUFF KEY, #6, 5/32" x 5/8", HT
1шт.
6
J904635
O-RING
O-RING - solenoid
1шт.
7
J904777
SPRING
SPRING - plunger
1шт.
8
A187990
TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm
TERMINAL - Male
1шт.
9
614-5008
BOLT,Hex, M5 x 0.8 x 8mm, Cl 8.8, Full Thd
BOLT - hex, full threads, 5 x 0.8 x 8 mm (Replaces bolt A77413)
1шт.
10
J904637
SET SCREW
SCREW - adjusting, low idle
1шт.
11
131-1144
LOCK NUT,Jam, #10 - 24
NUT - self-locking, No. 10 NF
1шт.
12
J904640
VENT
ORIFICE - bleed
1шт.
13
J904641
FITTING
FITTING - inlet
1шт.
14
K962748
WASHER
WASHER - inlet fitting, copper
1шт.
15
J904643
FITTING
FITTING - return
1шт.
16
J904644
WASHER
WASHER - sealing
9шт.
17
J904646
BANJO BOLT
BOLT - banjo
6шт.
18
K962755
ADAPTER
FITTING - banjo
6шт.
19
K963867
SCREW
SCREW - bleed, pump head
1шт.
20
J904778
BOLT
BOLT - hex, special
1шт.
21
J904779
WASHER
WASHER - locking, special
1шт.
22
J904780
SEAL
SEAL - locking bolt
1шт.
23
J902501
STUD
STUD - pump mounting, 8 - 1.25 x 48 mm
3шт.
24
J900589
NUT
NUT - hex flange, special, 8 mm
8шт.
25
J914389
GASKET
GASKET - pump mounting
1шт.
26
J920594
PINION
GEAR - pump drive
1шт.
27
J905387
BRACE
BRACE - fuel pump
1шт.
28
845-8020
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
BOLT - heavy hex flange, 8 - 1.25 x 20 mm
3шт.
Выбрано товаров: 30
