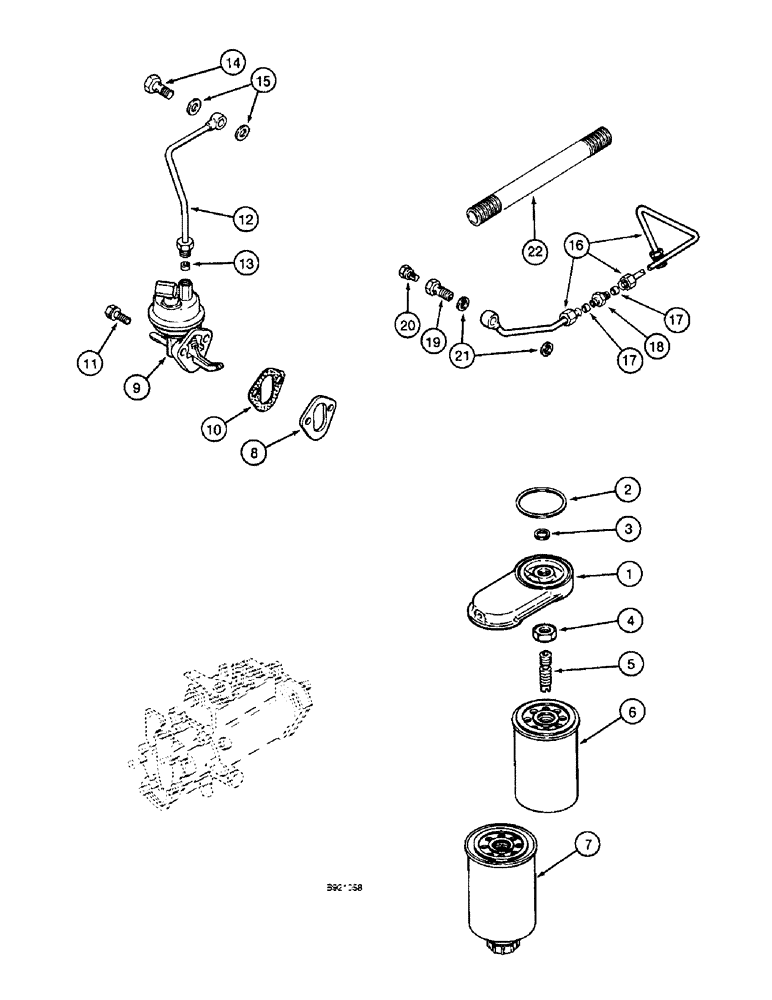

Запчасти Case IH 1800 (3-04) - FUEL FILTER AND LIFT PUMP, 6TA-590 ENGINE (02) - FUEL SYSTEM

1

J897331

SUPPORT

HEAD - fuel filter (Replaces head J915240)

1шт.

2

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID, fuel filter head

1шт.

3

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, fuel filter stud

1шт.

4

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

5

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter (Replaces adapter J903845)

1шт.

6

J925274

FILTER, FUEL

FILTER - fuel, primary (Replaces filter J903410)

1шт.

7

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

8

J914284

SPACER

- fuel transfer pump mounting

1шт.

9

J918076

PUMP

- transfer, fuel, see item 23 for repair kit

1шт.

10

J923054

GASKET

- mounting, fuel transfer pump (Replaces gasket J914304)

2шт.

11

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm

2шт.

12

J914753

FUEL TUBE,8 mm OD x 292.3 mm L

TUBE ASSEMBLY - fuel supply, lift pump (Replaces tubes J917564 and J912783)

1шт.

13

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

14

J903035

BANJO BOLT

BOLT - banjo hex, 12 - 1.5 x 24 mm

1шт.

15

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

16

J918640

FUEL TUBE

TUBE ASSEMBLY - fuel supply, two-piece

1шт.

17

222-103

SLEEVE,5/16" Tube

5/16 inch tube OD

1шт.

18

222-4

FITTING,9/16"-24, Flex Tube

ADAPTER - compression, 5/16 inch tube OD

1шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex special, order bolt assembly J905860

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW - hex special, vent, order bolt assembly J905860

1шт.

21

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

22

1979552C1

FUEL TUBE,0.35 mm ID, 0.51 mm OD

CONDUIT - fuel tube, 4 inch (104 mm) long, if used

1шт.

J926764

GASKET KIT

KIT - repair, seal, lift pump (Replaces kit J920544)

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, order kit J926764

2шт.

NSS

NOT SOLD SEPARAT

GASKET - check valve, order kit J926764

2шт.

NSS

NOT SOLD SEPARAT

O-RING - seal, order kit J926764

1шт.

NSS

NOT SOLD SEPARAT

O-RING - seal, order kit J926764

2шт.

NSS

NOT SOLD SEPARAT

O-RING - seal, order kit J926764

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, order kit J926764

1шт.

J923054

GASKET

- lift pump

2шт.
