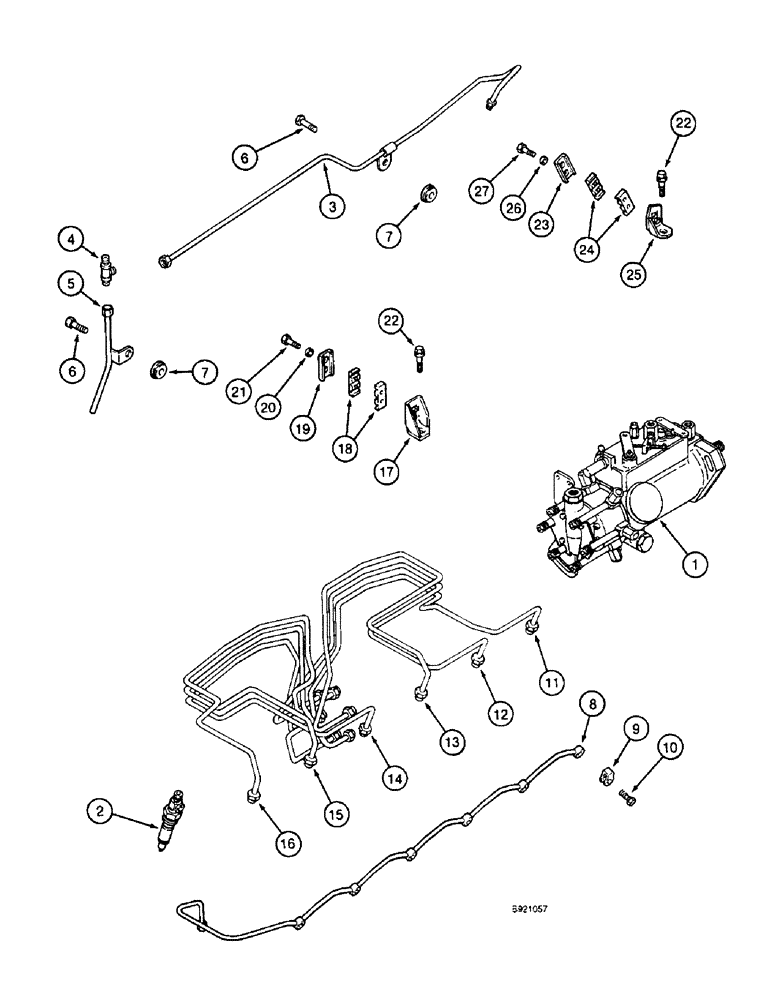

Запчасти Case IH 1800 (3-02) - FUEL INJECTION SYSTEM, 6TA-590 ENGINE (02) - FUEL SYSTEM

1

J915155

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, parts list page 3-7

1шт.

2

J919332

INJECTOR ASSY.

NOZZLE ASSEMBLY - fuel injection, parts list page 3-9

6шт.

2

JR919332

REMAN-FUEL INJECTOR

Remanufactured INJECTION NOZZLE

6шт.

2

JC919332

CORE-FUEL INJECTOR

Return No, INJECTION NOZZLE

6шт.

3

J920891

FUEL TUBE,4.76 mm OD x 909.3 mm L

TUBE - fuel drain (Replaces tube J905709)

1шт.

4

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing (See Note)

1шт.

Remove and discard hex nuts and sleeves before assembly.

1шт.

5

J905692

FUEL TUBE

TUBE - fuel return, tee to fuel tank

1шт.

6

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

7

J900267

SEAL

- cover bolt

2шт.

8

J909696

TUBE

TUBE - manifold, fuel drain

1шт.

9

J903380

SEAL

- connector

6шт.

10

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

11

J914043

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

12

J914044

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

13

J914090

FUEL TUBE,2 mm ID x 6.4 mm OD

TUBE - fule injector, No. 3 cylinder

1шт.

14

J914045

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

15

J914046

FUEL TUBE,2 mm ID x 6.4 mm OD x 863.6 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

16

J914091

FUEL TUBE,2 mm ID x 6.4 mm OD

TUBE - fuel injector, No. 6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, no longer available, order each component separately

2шт.

17

J917777

BRACE

- fuel tube

1шт.

18

J917747

CLAMP

- fuel tube

2шт.

19

J904519

SUPPORT

BRACE - tube retaining

1шт.

20

J903723

WASHER

- flat, special, 6 x 10 x 1 mm

2шт.

21

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, (Replaces bolt J917712) Hex Hd, M5 x .8 x 20, w/LW

2шт.

22

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special Hex Flg Hd, M8 x 1.25 x 25

3шт.

A77529

BRACKET

ASSEMBLY - fuel tube, no longer available, order each component separately

1шт.

23

J904519

SUPPORT

BRACE - tube retaining

1шт.

24

J917747

CLAMP

- fuel tube

2шт.

25

J917778

BRACE

- fuel tube

1шт.

26

J903723

WASHER

- flat, special, 6 x 10 x 1 mm

2шт.

27

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, (Replaces bolt J917712) Hex Hd, M5 x .8 x 20, w/LW

2шт.
