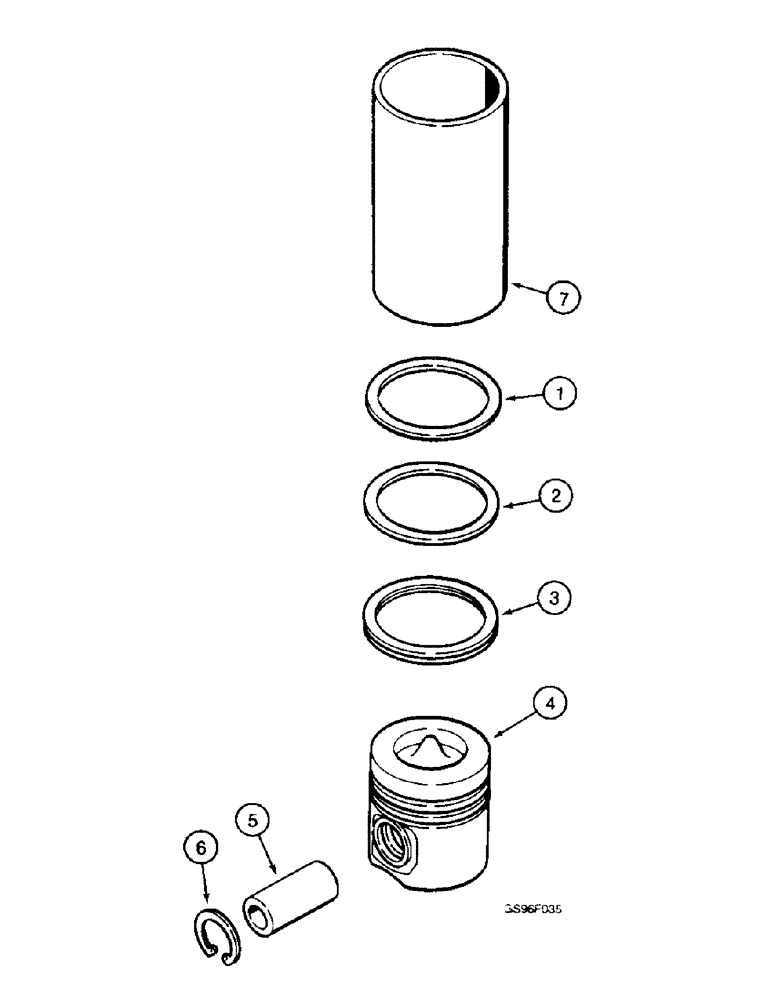

Запчасти Case IH 1800 (2-42) - PISTONS, 6TA-590 ENGINE (01) - ENGINE

A77733

PISTON

KIT - piston, standard

6шт.

A77727

PISTON RING SET

KIT - ring, standard

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top, order kit A77727

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle, order kit A77727

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom, order kit A77727

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, standard, stamped 7156, order kit A77733

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

A77734

PISTON

KIT - piston, 0.5 mm oversize

6шт.

A77728

PISTON RING SET

KIT - ring, 0.5 mm oversize

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top, order kit A77728

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle, order kit A77728

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom, order kit A77728

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 0.5 mm oversize, stamped 7157, order kit A77734

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

A77735

PISTON

KIT - piston, 1.0 mm oversize

6шт.

A77729

PISTON RING SET

KIT - ring, 1.0 mm oversize

1шт.

1

NSS

NOT SOLD SEPARAT

RING - compression, top, order kit A77729

1шт.

2

NSS

NOT SOLD SEPARAT

RING - compression, middle, order kit A77729

1шт.

3

NSS

NOT SOLD SEPARAT

RING - oil, bottom, order kit A77729

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, 1.0 mm oversize, stamped 7158, order kit A77735

1шт.

5

J901793

PISTON PIN

PIN - piston

1шт.

6

J901706

RING

- snap

2шт.

7

J904166

SLEEVE

LINER - piston, used only in engine block repair and with standard piston kit A77733

1шт.
