Запчасти Case IH 1800 (2-34) - CYLINDER BLOCK, 6TA-590 ENGINE (01) - ENGINE

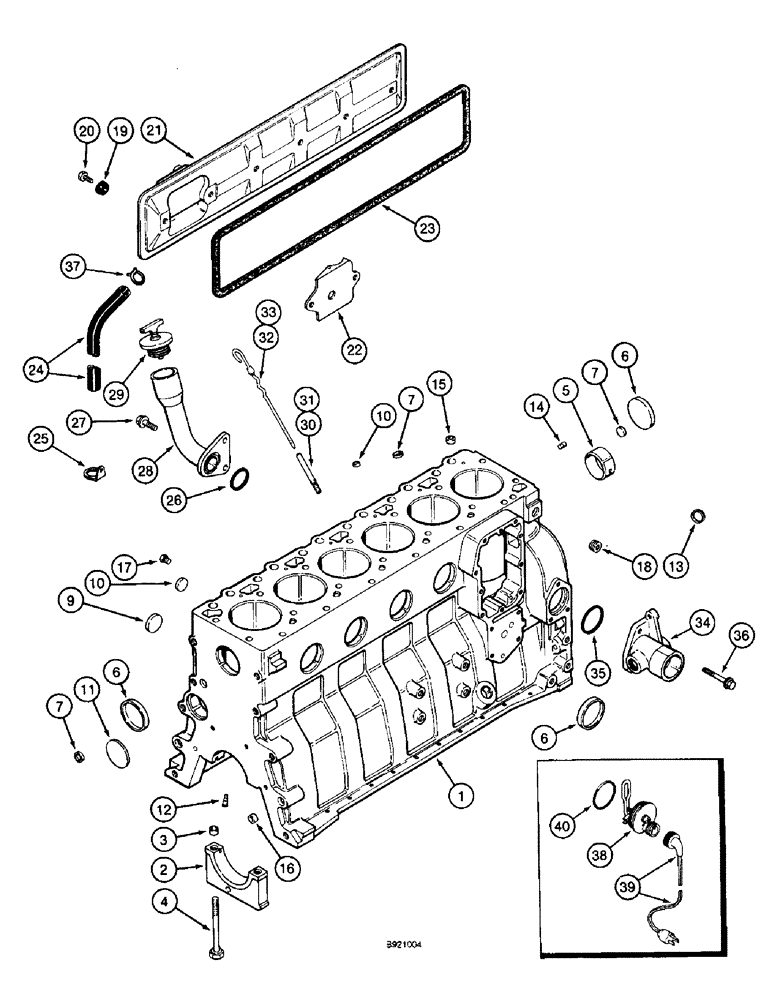

Схема запчастей Case IH 1800 - (2-34) - CYLINDER BLOCK, 6TA-590 ENGINE (01) - ENGINE
35
11
7
7
10
39
9
16
40
12
22
33
36
38
18
4
2
20
29
5
21
13
28
37
27
23
31
32
3
10
15
6
6
6
1
25
34
26
14
30
19
7
17
24

Артикул

Название

Примечание

Количество

1989104C3

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - complete, new, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine 1989097C3 below

1шт.

1989097C3

BASIC ENGINE

ENGINE ASSEMBLY basic, new

1шт.

Includes all parts except starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner, turbocharger and aftercooler (Replaces engine assembly 1989097C2)

1шт.

1989097C3R

ENGINE, EXCHANGE

Engine (EXCHANGE) Engine Assembly - basic, remanufactured, component parts shown on this page do not apply to the remanufactured assembly (Replaces engine assembly 1989097C2R)

1шт.

1989097C2C

CORE-ENGINE

Return Part Number use this part number to return basic engine core for credit when using a remanufactured assembly

1шт.

1989097C4R

REMAN-BASIC ENGINE

Remanufactured

1шт.

1989097C4C

CORE-BASIC ENGINE

Return Part Number

1шт.

A77763

SKELETON ENGINE

KIT - short block assembly, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, no longer available, order short block J920388 and hardware kit J920399

1шт.

AR77763

BLOCK

BLOCK ASSEMBLY - short, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly, no longer available, order block assembly JR927311 below

1шт.

JR933184

REMAN-SHORT ENGINE

Remanufactured

1шт.

JC933184

CORE-SHORT ENGINE

Return Part Number

1шт.

JR927311

BLOCK

BLOCK ASSEMBLY - short, new (Replaces block assembly AR77763)

1шт.

J920388

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings (See Note)

1шт.

A77760

CRANKCASE

BLOCK ASSEMBLY - stripped, engine, no longer available, order stripped block J916255 and hardware kit J920399

1шт.

1

J916255

CYLINDER BLOCK

BLOCK ASSEMBLY - stripped, engine (See Note)

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - main bearing cap, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, see page 2-33, item 2

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD (Replaces plug J900965)

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Not shown Cup, 1", Stainless

4шт.

J802641

PACKAGE, REPAIR

KIT - block hardware

1шт.

Order J920399 hardware kit, items 9 - 18, when ordering J920388 block assembly or J916255 stripped block, page 2-35.

1шт.

9

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

10

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

11

J900687

PLUG

PLUG - expansion, Welch, 60 mm OD, no longer available, order plug 172599

1шт.

11

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, 2-3/8 inch

1шт.

12

J919002

NOZZLE CAP

NOZZLE - piston cooling

6шт.

13

A77439

PLUG

PLUG - expansion, 22 mm OD

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, 16 mm long

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT

2шт.

18

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

19

J900267

SEAL

SEAL - cover bolt

4шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

4шт.

21

J927913

COVER

COVER - tappet (Replaces cover J911822)

1шт.

22

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

23

J928832

GASKET

GASKET - tappet cover (Replaces gasket J907617)

1шт.

24

J918614

TUBE,435.00 mm

HOSE - breather, 25 inch (635 mm) long (Replaces hose J908049)

1шт.

25

J909670

CLIP

CLIP - retaining

1шт.

26

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - sealing, oil filter, 1-1/2 inch (38 mm) ID

1шт.

27

854-12055

BOLT,Hvy Hex, M12 x 55mm, Cl 10.9

BOLT - heavy hex flange, 12 - 1.75 x 55 mm class 10.9

2шт.

28

J905440

TUBE

TUBE - oil fill

1шт.

29

A77424

FILLER CAP

CAP - oil fill tube

1шт.

30

J905425

TUBE,9.52 mm OD x 93 mm L

TUBE - dipstick, oil, 93 mm long, no longer used, order tube J905127, item 31

1шт.

31

J905127

TUBE,9.52 mm OD x 180 mm L

TUBE - dipstick, oil, 180 mm long

1шт.

32

J905786

DIPSTICK

DIPSTICK - engine oil level gauge, 219 mm long, no longer used, order dipstick J907714, item 33

1шт.

33

J907714

DIPSTICK

DIPSTICK - engine oil level gauge, 309 mm long

1шт.

34

J916625

CONNECTING BLOCK

CONNECTION - water inlet

1шт.

35

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

36

854-10025

BOLT,Hvy Hex, M10 x 25mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 25 mm, class 10.9

3шт.

37

214-1308

HOSE CLAMP,#8, 1/2", Spring

CLAMP, HOSE, #8, 1/2", Spring

1шт.

196803A1

KIT

KIT - engine block heater

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT - heater, order kit 196803A1 ENGINE BLOCK

1шт.

39

196466A1

ELECTRIC CABLE

CABLE - engine block heater (Replaces cable J905113)

1шт.

40

J910517

O-RING

O-RING - heater sealing ENGINE BLOCK

1шт.

Выбрано товаров: 58
