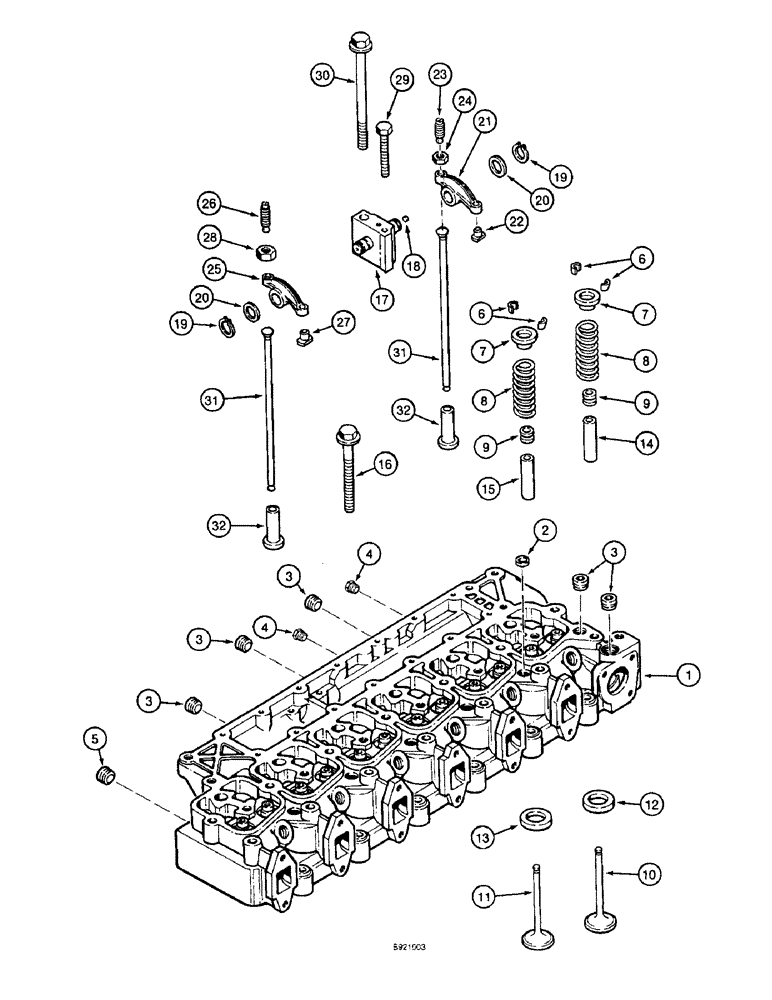

Запчасти Case IH 1800 (2-30) - CYLINDER HEAD AND VALVE MECHANISM, 6TA-590 ENGINE (01) - ENGINE

JR920612

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 7 mm injector, with valves, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly, no longer available, order remanufactured assembly JR929735

1шт.

JR929735

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, remanufactured (Replaces head assembly JR920612)

1шт.

JC920612

REMAN-CYLINDER HEAD

RETURN NUMBER - use this part number to return cylinder head core for credit when using a remanufactured assembly

1шт.

1

J920612

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 7 mm injector, with valves, new, no longer available, order head assembly J929735 below

1шт.

1

J929735

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, new (Replaces head assembly J920612)

1шт.

1

J917287

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, 7 mm injector, without valves

1шт.

2

A77783

PLUG

- expansion, 21 mm OD (Replaces plug J902606)

5шт.

3

A77429

PLUG

- hex socket, 1/2 inch PT

5шт.

4

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

5

A77505

PLUG

- hex socket, 3/4 inch PT

1шт.

6

J900250

SCREW

KEEPER - valve

24шт.

7

J900299

RETAINER

- valve spring

12шт.

8

J900276

VALVE SPRING

SPRING - valve

12шт.

9

J901097

SEAL

- valve stem

12шт.

10

J920867

VALVE

- intake

6шт.

11

J920868

VALVE

- exhaust

6шт.

12

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only

6шт.

13

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only

6шт.

14

J904408

GUIDE

- valve, intake, service repair only, 14 mm OD (See Note)

6шт.

These parts are semi-finished valve guides.

1шт.

15

J904409

GUIDE

- valve, exhaust, service repair only, 14 mm OD (See Note)

6шт.

These parts are semi-finished valve guides.

1шт.

16

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long, if used (Replaces bolts J903938 and J918471)

6шт.

16

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- hex flange, 12 - 1.75 x 120 mm, if used (Replaces bolts J903939 and J918472)

14шт.

17

J910814

SUPPORT

AND SHAFT ASSEMBLY - rocker arm

6шт.

18

J907555

PLUG

- rocker arm shaft, 1/4-18 PT

1шт.

19

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

20

J900245

WASHER

- thrust, rocker arm

12шт.

21

J910811

ROCKER

ARM ASSEMBLY - rocker, intake

6шт.

22

NSS

NOT SOLD SEPARAT

INSERT - rocker arm, order arm assembly J910811

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

24

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

25

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust

6шт.

26

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

27

NSS

NOT SOLD SEPARAT

INSERT - rocker arm, order arm assembly J910810

1шт.

28

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

29

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - rocker arm and cylinder head, 180 mm long (Replaces bolts J903940 and J918473)

6шт.

31

J923262

PUSH ROD

ROD - push, rocker arm (Replaces rod J904679)

12шт.

32

J931623

TAPPET

- valve, push rod (Replaces tappet J907240)

12шт.
