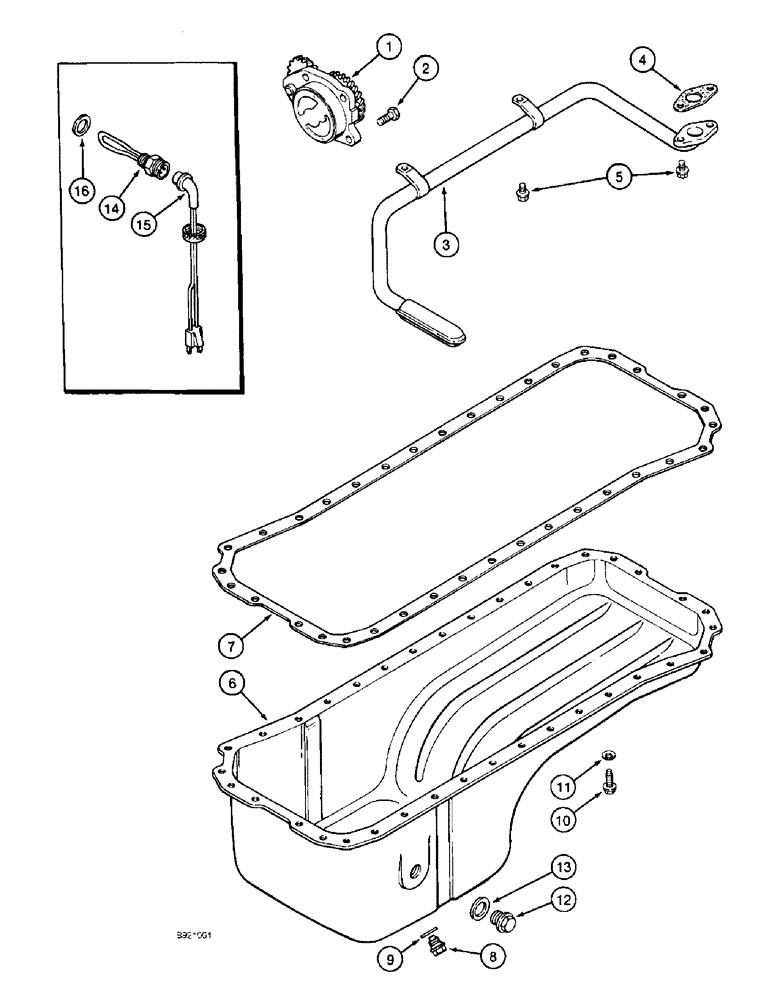

Запчасти Case IH 1800 (2-26) - OIL PUMP & OIL PAN, 6TA-590 ENGINE (01) - ENGINE

JR918212

REMAN-ENG OIL PUMP

PUMP ASSEMBLY - oil, remanufactured, North America only, component parts on this page do not apply to the remanufactured assembly, no longer available, order remanufactured pump JR926203 below

1шт.

JC918212

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

JR926203

REMAN-ENG OIL PUMP

PUMP ASSEMBLY - oil, remanufactured

1шт.

1

J918212

PUMP, ENGINE OIL

PUMP ASSEMBLY - engine oil, new, no longer available, order pump assembly J926203 below

1шт.

1

J926203

PUMP, ENGINE OIL

PUMP ASSEMBLY - engine oil, new (Replaces pump assembly J918212)

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J921992

TUBE,25.4 mm OD x 359, 234 mm L

TUBE - oil suction (Replaces tube J918268)

1шт.

4

J914383

GASKET

- mounting, oil suction tube

1шт.

See Figure Note.

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

3шт.

6

J915703

PAN, ENGINE OIL

PAN - oil, engine, order kit A77676 below

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order kit A77676 below

1шт.

See Figure Note.

1шт.

8

J924147

PLUG,M18 x 1.5

- hex magnetic, special, 18 mm - 1.5, oil drain (Replaces plug J911638)

1шт.

9

J920773

SEALING WASHER

WASHER - sealing, drain plug (Replaces washer J900216)

1шт.

See Figure Note.

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange cap, special, 8 - 1.25 x 25 mm (Replaces bolt J907860)

36шт.

11

J910266

LOCK WASHER

- Belleville spring, oil pan bolt, if used (Replaces washer J907537)

36шт.

12

J924148

PLUG,M22 x 1.5

- hex magnetic, special, 22 mm - 1.5, heater hole (Replaces plug J904386)

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug

1шт.

A77676

GASKET KIT

KIT - gasket, oil pan

1шт.

See Figure Note.

1шт.

A77490

KIT

- heater, engine oil (See Note)

1шт.

14

NSS

NOT SOLD SEPARAT

ELEMENT - heater, order kit A77490 ENGINE OIL

1шт.

15

196466A1

ELECTRIC CABLE

CABLE - engine block heater (Replaces cable J905113) OIL

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- sealing, plug ENGINE OIL HEATER

1шт.
