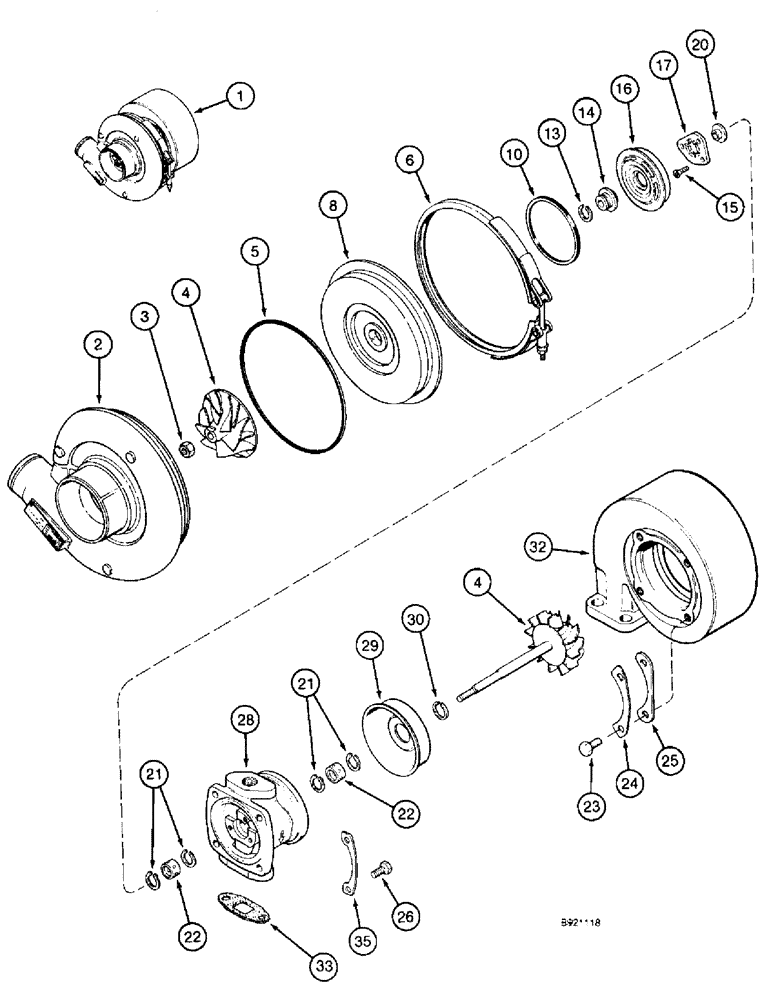

Запчасти Case IH 1800 (2-22) - TURBOCHARGER ASSEMBLY, 6TA-590 ENGINE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
J919113
TURBOCHARGER
TURBOCHARGER ASSEMBLY - engine, new, also order one adapter J919687, item 26 on page 2-21
1шт.
1
JR802289
REMAN-TURBOCHARGER
1800, Reman For New P/N J919113
1шт.
1
JC528741
CORE-TURBOCHARGER
Return Part Number
1шт.
1
JR907028
REMAN-TURBOCHARGER
Turbocharger Assembly - Engine, Remanufactured, Component parts shown on this page do not apply to the Remanufactured Assembly
1шт.
1
JC907028
CORE-TURBOCHARGER
Return Part Number - Use this part number to return turbocharger core for credit when using a Remanufactured assembly
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING - compressor
1шт.
3
NSS
NOT SOLD SEPARAT
NUT - hex lock
1шт.
4
NSS
NOT SOLD SEPARAT
ROTOR - turbocharger
1шт.
5
NSS
NOT SOLD SEPARAT
SEAL - housing, compressor
1шт.
6
NSS
NOT SOLD SEPARAT
CLAMP - compressor
1шт.
8
NSS
NOT SOLD SEPARAT
DIFFUSER - compressor
1шт.
10
NSS
NOT SOLD SEPARAT
SEAL - diffuser
1шт.
13
NSS
NOT SOLD SEPARAT
SEAL - slit ring, compressor
1шт.
14
NSS
NOT SOLD SEPARAT
SLINGER - oil
1шт.
15
NSS
NOT SOLD SEPARAT
SCREW - flat head torx
3шт.
16
NSS
NOT SOLD SEPARAT
BAFFLE - oil
1шт.
17
NSS
NOT SOLD SEPARAT
BEARING - thrust
1шт.
20
NSS
NOT SOLD SEPARAT
COLLAR - thrust
1шт.
21
NSS
NOT SOLD SEPARAT
RING - snap
4шт.
22
NSS
NOT SOLD SEPARAT
BEARING - impeller shaft
2шт.
23
NSS
NOT SOLD SEPARAT
BOLT - cap
4шт.
24
NSS
NOT SOLD SEPARAT
PLATE - lock, turbine housing
2шт.
25
NSS
NOT SOLD SEPARAT
PLATE - clamping, turbine housing
2шт.
26
NSS
NOT SOLD SEPARAT
BOLT - hex lock, includes washer
4шт.
28
NSS
NOT SOLD SEPARAT
HOUSING - bearing, turbine
1шт.
29
NSS
NOT SOLD SEPARAT
SHIELD - heat, turbine
1шт.
30
NSS
NOT SOLD SEPARAT
SEAL - piston ring, turbine
1шт.
32
NSS
NOT SOLD SEPARAT
HOUSING - turbine
1шт.
33
NSS
NOT SOLD SEPARAT
GASKET - housing
1шт.
35
NSS
NOT SOLD SEPARAT
PLATE - lock, turbine
2шт.
J545652
PACKAGE, REPAIR
KIT - overhaul, turbocharger
1шт.
Выбрано товаров: 31
