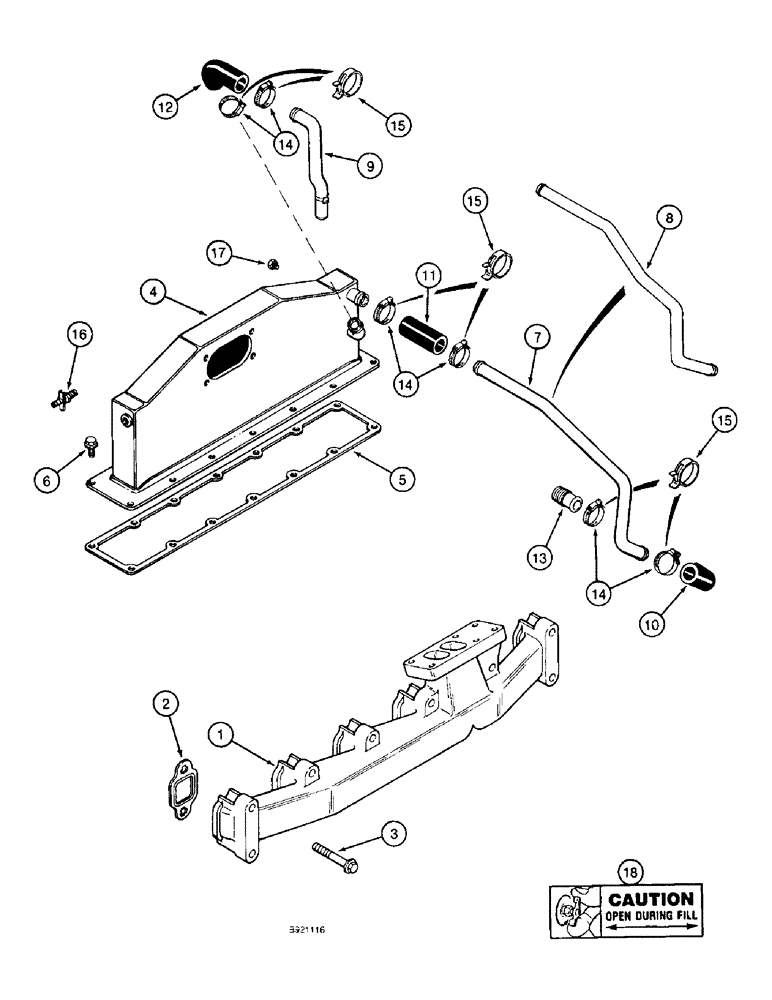

Запчасти Case IH 1800 (2-18) - MANIFOLDS, 6TA-590 ENGINE (01) - ENGINE

1

J901683

MANIFOLD

- exhaust

1шт.

2

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

3

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 65 mm, class 10.9

12шт.

4

J919806

AFTERCOOLER

- air intake

1шт.

5

J914029

GASKET

- mounting, manifold INTAKE AFTERCOOLER

1шт.

6

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

BOLT - hex flange, special INTAKE AFTERCOOLER MANIFOLD

14шт.

7

J907168

TUBE

- supply, aftercooler, if used INTAKE MANIFOLD

1шт.

8

J914855

TUBE,0.75" OD

- aftercooler return, if used INTAKE MANIFOLD

1шт.

9

J905639

TUBE,12.7 mm ID x 22.22 mm OD x 154.7 mm L

- aftercooler drain INTAKE MANIFOLD

1шт.

10

J918607

HOSE,43.20 mm

Block to Supply Tube, Replaces J917793, Intake Aftercooler Manifold 43.20 mm

1шт.

11

J918611

HOSE,18.50 mm ID x 63.00 mm

Supply Tube to Aftercooler, Replaces J917791 Hose, Intake Manifold 18.50 mm ID x 63.00 mm

1шт.

12

J918608

HOSE,18.50 mm ID x 69.50 mm

- aftercooler to drain tube, 4-1/2 inch (115 mm) long (Replaces hose J917792) INTAKE MANIFOLD

1шт.

13

J907167

SPLINED COUPLING

COUPLING - block to hose INTAKE AFTERCOOLER MANIFOLD

1шт.

14

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, , Intake aftercooler manifold #12, 0.69/1.25 Type F Worm

6шт.

15

J918163

CLIP

CLAMP - spring type INTAKE AFTERCOOLER MANIFOLD

6шт.

16

J909394

COCK, DRAIN

VALVE - drain INTAKE AFTERCOOLER MANIFOLD

1шт.

17

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT INTAKE AFTERCOOLER MANIFOLD

1шт.

18

J910778

DECAL

- Caution, open during fill INTAKE AFTERCOOLER MANIFOLD

1шт.
