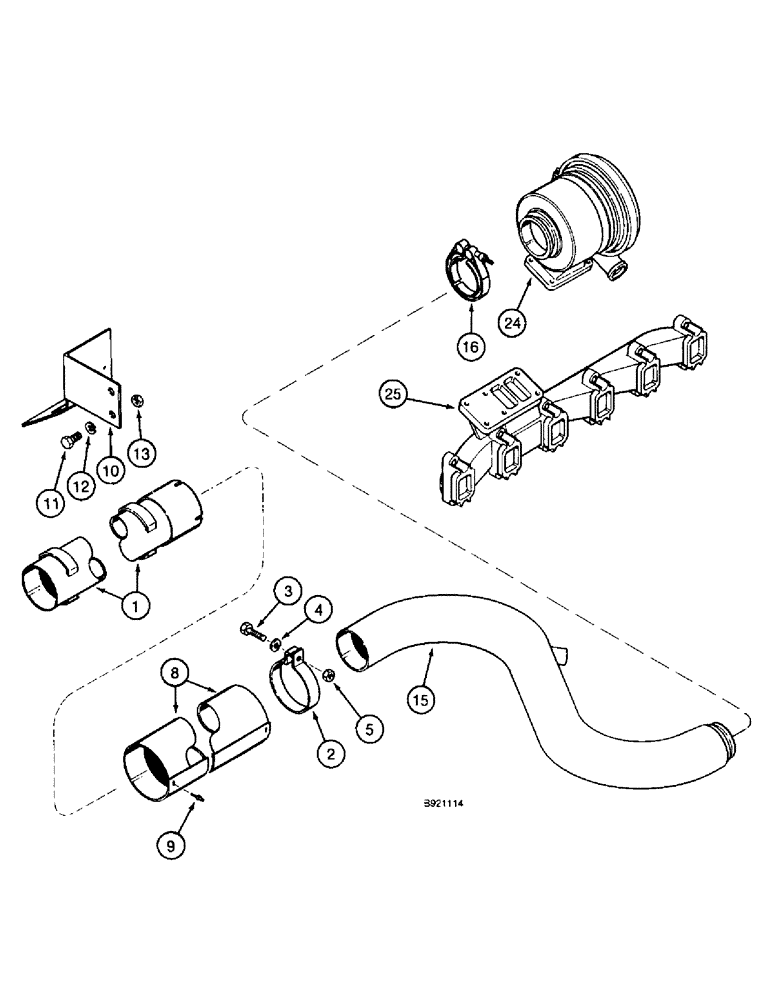

Запчасти Case IH 1800 (2-16) - EXHAUST SYSTEM, 6TA-590 ENGINE (01) - ENGINE

1

1260035C3

TUBE,1895, 50 mm Length

PIPE - exhaust

1шт.

2

1321280C2

CLAMP,92mm

- exhaust pipe

1шт.

3

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

If used (Replaces bolt 187620C1) Hex Flg, 3/8"-16 x 1 1/2", Serr

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, if used

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

425-106

NUT,3/8"-16, Cl 5

1шт.

8

1260034C2

TUBE,119 mm OD, 2030 mm Length

SHIELD - tube, exhaust

1шт.

9

151-509

RIVET,Pop, 3/16" x .325"

- break mandrel, 3/16 x 5/16 inch (Replaces rivet 201946C1)

7шт.

10

86978C1

GUARD

SHIELD - pipe, exhaust

1шт.

11

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

15

84619C1

TUBE,88.9 mm OD x 670, 265 mm L

- exhaust

1шт.

16

A170467

CLAMP,72mm ID

- tube retaining, T-bolt, includes hardware

1шт.

24

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, see page 2- 23 for correct assembly and parts list information

1шт.

25

J901683

MANIFOLD

- exhaust, see page 2-19 for mounting

1шт.
