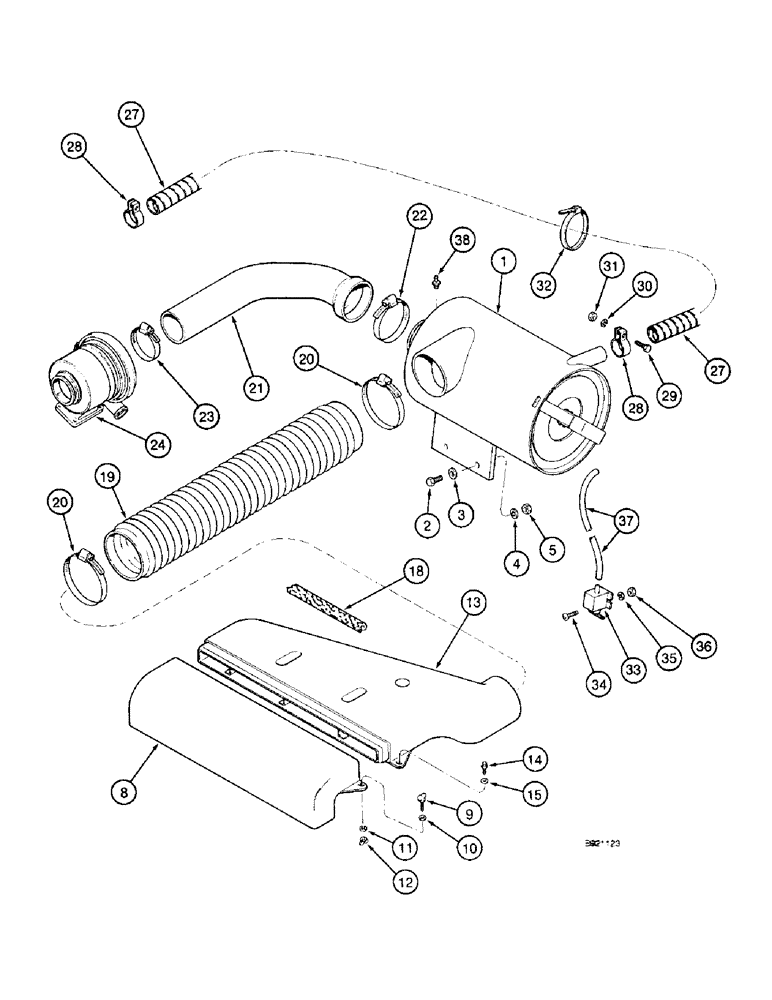

Запчасти Case IH 1800 (2-10) - AIR INDUCTION SYSTEM, 6TA-590 ENGINE (01) - ENGINE

1

A190713

FILTER ASSY

CLEANER ASSEMBLY - air, parts list page 2-13

1шт.

2

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

8

1262792C2

SUPPORT

DUCT - extension, air intake

1шт.

9

532400R1

THUMB SCREW

- thumb, 1/4 NC x 1 inch

2шт.

10

495-81107

WASHER,.281" x 7/8" x .060"

- flat, 9/32 x 7/8 x 3/64 inch

6шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

2шт.

13

1262786C3

SUPPORT

DUCT - intake, air

1шт.

14

280-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

2шт.

15

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - foam, 53-5/16 inch (1354 mm) long, cut from bulk seal 87084C1 below

1шт.

19

1338497C1

LARGE HOSE

HOSE - inlet, air cleaner

1шт.

20

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

CLAMP, HOSE, , Adj. #80, 4.62/5.50 Type F Worm

2шт.

21

84562C2

INTAKE AIR HOSE,75.00 mm ID, 100.00 mm ID x 375.00 mm, SAE J200

HOSE - outlet, air

1шт.

22

146570C1

CLAMP

- hose, No. 72 type F

1шт.

23

146569C1

CLAMP

- hose, No. 56 type F

1шт.

24

REF

INSTRUCTION

TURBOCHARGER ASSEMBLY - engine, see page 2-23 for correct assembly and parts list information

1шт.

27

1982309C4

TUBE

- aspirator, flex metal

1шт.

28

1275854C1

CLAMP

- aspirator tube

2шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

30

492-11038

LOCK WASHER,3/8"

2шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

2шт.

33

533917C1

GAUGE

INDICATOR - air restriction

1шт.

34

440-10820

SCREW,Cross Pan Hd, #8-32 x 1 1/4"

- machine, pan Phillips, No. 8 NC x 1-1/4 inch

2шт.

35

492-11008

LOCK WASHER,#8

Washer, Lock, #8

2шт.

36

225-14108

NUT,#8-32

- hex, No. 8 NC

2шт.

37

NSS

NOT SOLD SEPARAT

HOSE - restriction, 25-3/16 inch (640 mm) long, cut from bulk hose 990015C1 below

1шт.

38

533916C1

FITTING

CONNECTOR - restriction gauge hose

1шт.

87084C1

SEAL

- foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

990015C1

LARGE HOSE

HOSE - bulk, 3/32 (2.5) ID x 300 inch (7620 mm) long

1шт.
