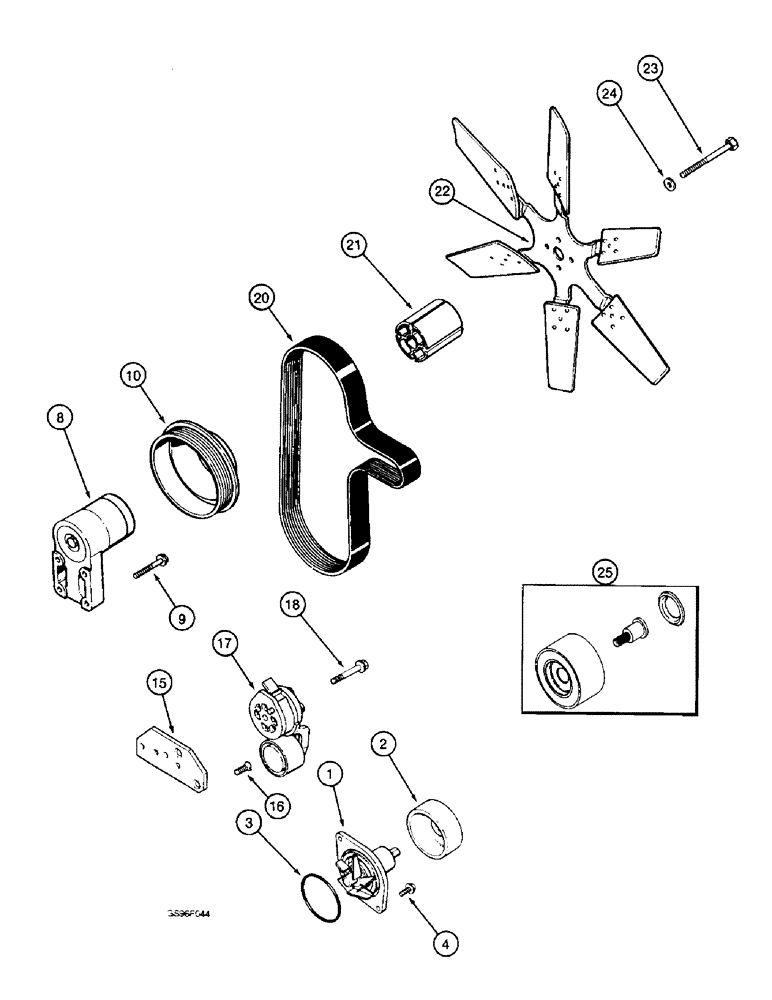

Запчасти Case IH 1800 (2-06) - WATER PUMP, FAN AND FAN BELT, 6TA-590 ENGINE (01) - ENGINE

AR77703

PUMP

ASSEMBLY - water, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly, no longer available, order kit A77703 below

1шт.

J286278R

REMAN-WATER PUMP

1800

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77703

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

A77703

PUMP, WATER

KIT - water pump, new

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

1800

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water, order pump assembly

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump, order pump assembly

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J913433

BRACKET

ASSEMBLY - fan pulley

1шт.

J911924

HUB

- fan

1шт.

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

BEARING - ball

1шт.

J923044

RETAINER

- hub

1шт.

J913434

SUPPORT

- fan drive

1шт.

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

- hex, special, M10 x 70, class 12.9

1шт.

J911205

BRACKET

SUPPORT - fan

1шт.

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, 2.50", Int, #250

2шт.

9

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8

4шт.

10

J914462

PULLEY,163mm OD

- fan, 1.1 to 1 ratio

1шт.

15

J925207

SUPPORT

BRACKET - belt tensioner (Replaces bracket J919985)

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, torx, special, 8 - 1.25 x 25 mm (Replaces screw J903095)

2шт.

17

J918944

BELT TENSIONER

TENSIONER - belt, for service order kit A77817 , item 25 below

1шт.

18

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

20

J911562

V-BELT,27.92mm W x 1460.5mm L, 8 Ribs

Fan, Replaces J911565 3.56 mm W x 1460.50 mm L, 8 Ribs

1шт.

21

A184548

SPACER,Fan, 89/90mm Thk

- fan, 90 mm long

1шт.

22

84583C2

FAN

- engine, puller

1шт.

23

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 - 1.5 x 130 mm, class 10.9

4шт.

24

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 2.5 mm, hardened

12шт.

25

A77817

KIT

KIT - pulley, belt tensioner

1шт.
