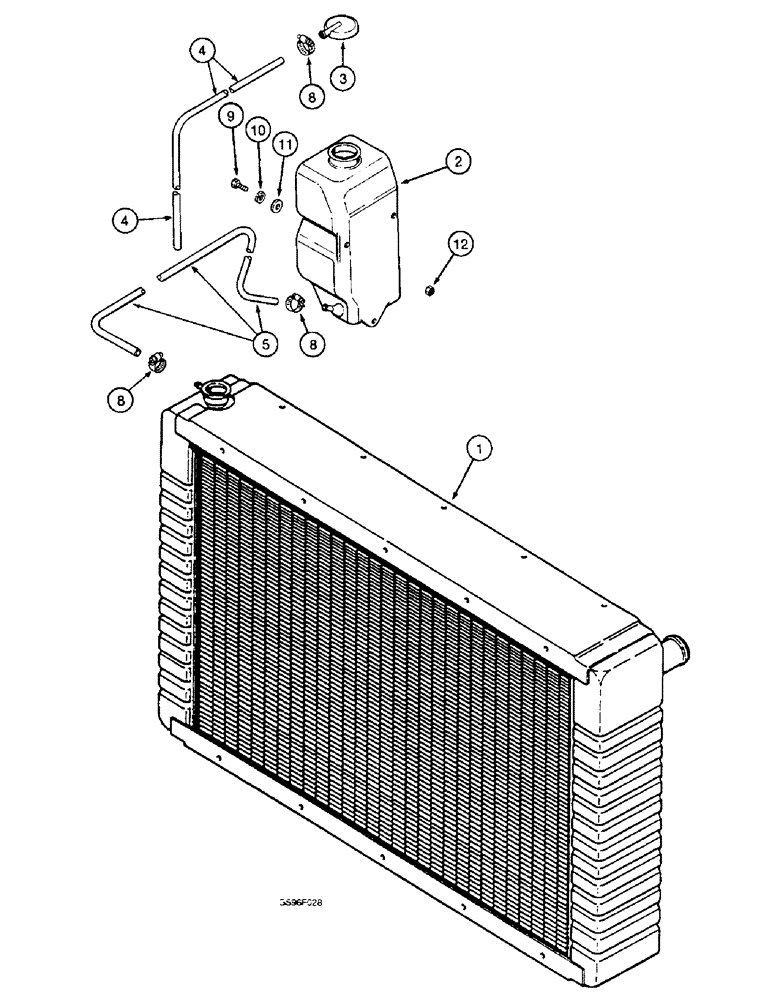

Запчасти Case IH 1800 (2-04) - COOLANT RECOVERY SYSTEM (01) - ENGINE

1

84357C2

RADIATOR

- coolant, engine, see page 2-3

1шт.

2

437703C2

TANK

RESERVOIR - coolant recovery

1шт.

3

437702C1

CAP

- reservoir tank

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - reservoir, 34-1/2 inch (876 mm) long, cut from bulk hose 87086C1 below

1шт.

5

NSS

NOT SOLD SEPARAT

HOSE - reservoir, 16-1/2 inch (419 mm) long, cut from bulk hose 87086C1 below

1шт.

8

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adjustable, 1/4 - 5/8 inch diameter

3шт.

9

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

11

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

87086C1

RADIATOR HOSE,7.90 mm ID

HOSE, 7.90 mm ID

1шт.
