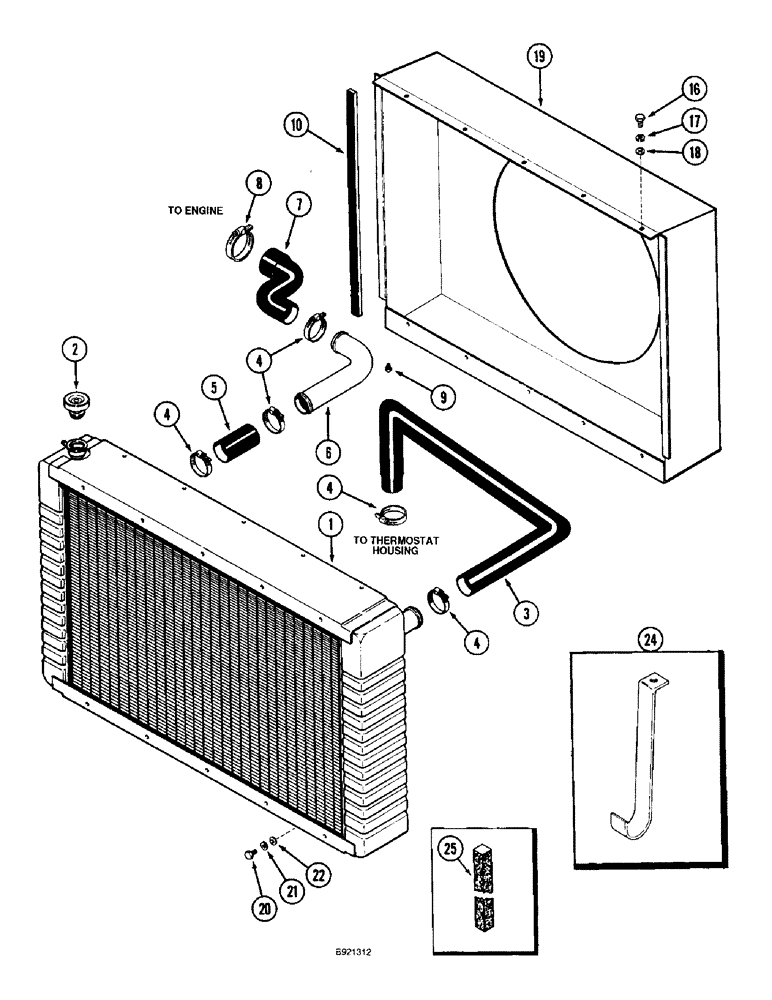

Запчасти Case IH 1800 (2-02) - RADIATOR AND FAN SHROUD (01) - ENGINE

1

84357C2

RADIATOR

- coolant, engine

1шт.

2

121951C1

CAP

- radiator pressure, 10 PSI

1шт.

3

1338667C1

HOSE

- coolant, radiator upper outlet

1шт.

4

214-1532

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm, W/ Liner

Adj. (Replaces clamp 681209C1) #32, 1.56/2.50 Type F Worm, W/liner

5шт.

5

1329393C1

RADIATOR HOSE,50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

Straight, Lower 50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

1шт.

6

1338664C2

TUBE,246, 160 mm Length

- coolant, engine inlet

1шт.

7

1338665C1

HOSE

- coolant, water inlet

1шт.

8

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adjustable, 2-1/16 - 3 inch diameter (Replaces clamp 401345R1)

1шт.

9

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - foam, 26-13/32 inch (671 mm) long, cut from bulk hose 87084C1 below

2шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

19

1338787C2

ORIFICE RING

SHROUD - fan

1шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

10шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

22

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

10шт.

24

1345172C2

SUPPORT

BRACKET - radiator hose hanger

1шт.

25

1994996C1

SEAL - radiator sides, upper and lower, 5-1/8 inch (130 mm) long, cut from bulk seal 1264566C1 below

4шт.

87084C1

SEAL

- foam, adhesive-backed, 600 inch (15240 mm) long

1шт.

1264566C1

SEAL,1219mm L

SEAL - foam, adhesive-backed, 48 inch (1219 mm) long

1шт.
