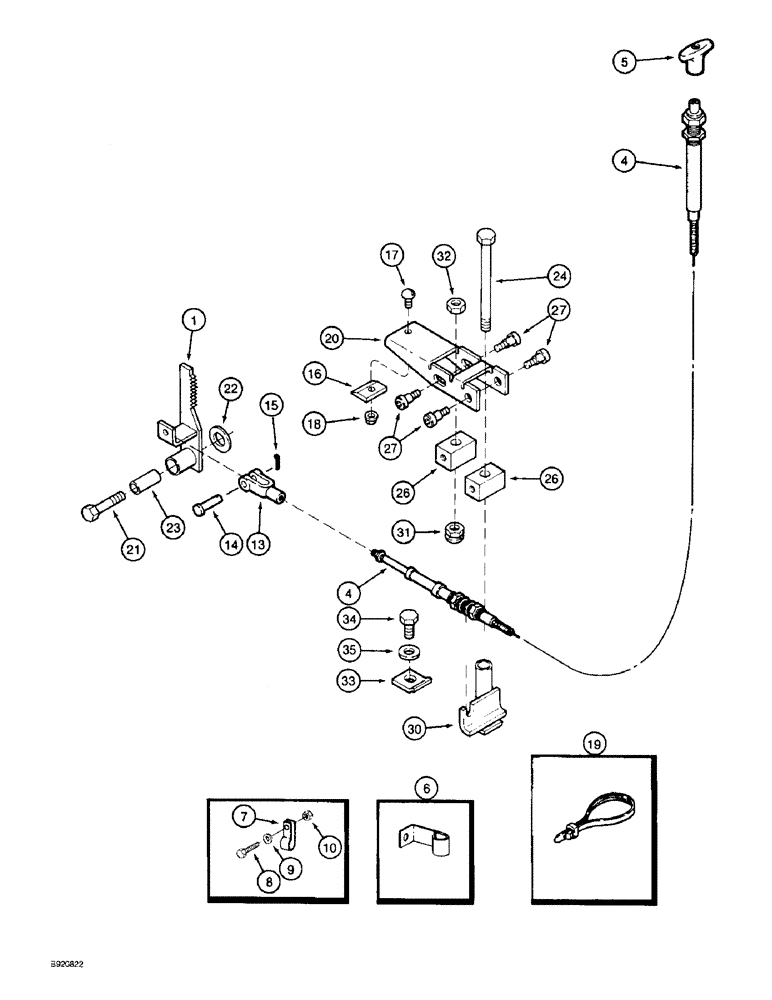

Запчасти Case IH 1800 (7-14) - PARKING BRAKE AND CONTROLS, USED WITH MASTER BRAKE ON PAGE 7-7 (5.1) - BRAKES

1

1342474C1

PLATE

RACHET - parking brake (See Note)

1шт.

No longer available, order items 9, 30 - 45, and 50, on Figure 7-08 and items 1, 13, and 16 on Figure 7-16.

1шт.

4

166149C91

CABLE

ASSEMBLY - parking brake, 125 inch (3175 mm) long

1шт.

5

170273C1

HANDLE

- control

1шт.

6

370383R1

CLIP

CLAMP - brake cable

1шт.

7

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

1шт.

8

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

13

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, No. 10 NF

1шт.

14

427-3071

CLEVIS PIN,3/16" x .719"

PIN - clevis, 3/16 x 23/32 inch, hardened

1шт.

15

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

1шт.

16

1349455C1

BAR

- park brake rachet

1шт.

17

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

19

702093C1

CABLE TIE

STRAP - tie, cable retaining

5шт.

20

1342446C1

LEVER

- park brake

1шт.

21

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

1шт.

22

495-11081

WASHER,3/4", SAE

1шт.

23

1342477C1

SPACER

- rachet pivot

1шт.

24

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

- hex, 1/2 NC x 6 inch

1шт.

26

1342334C1

PLATE,SMALL SQUARE

BLOCK - park brake lever pivot

2шт.

27

121-227

STEP BOLT,Hex Skt, 3/8" - 16 - 1/2" x 1/2"

SCREW, Hex Soc Hd, Shdr, 3/8"-16 x 1/2"

4шт.

30

1342472C1

SUPPORT

- park brake

1шт.

31

A157951

NUT

- hex

1шт.

32

25-157

JAM NUT,Jam, 7/16"-20, G5

- hex jam, 7/16 inch NF

1шт.

33

1342455C1

LARGE PLATE

CLAMP - actuator plate

1шт.

34

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

35

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.
