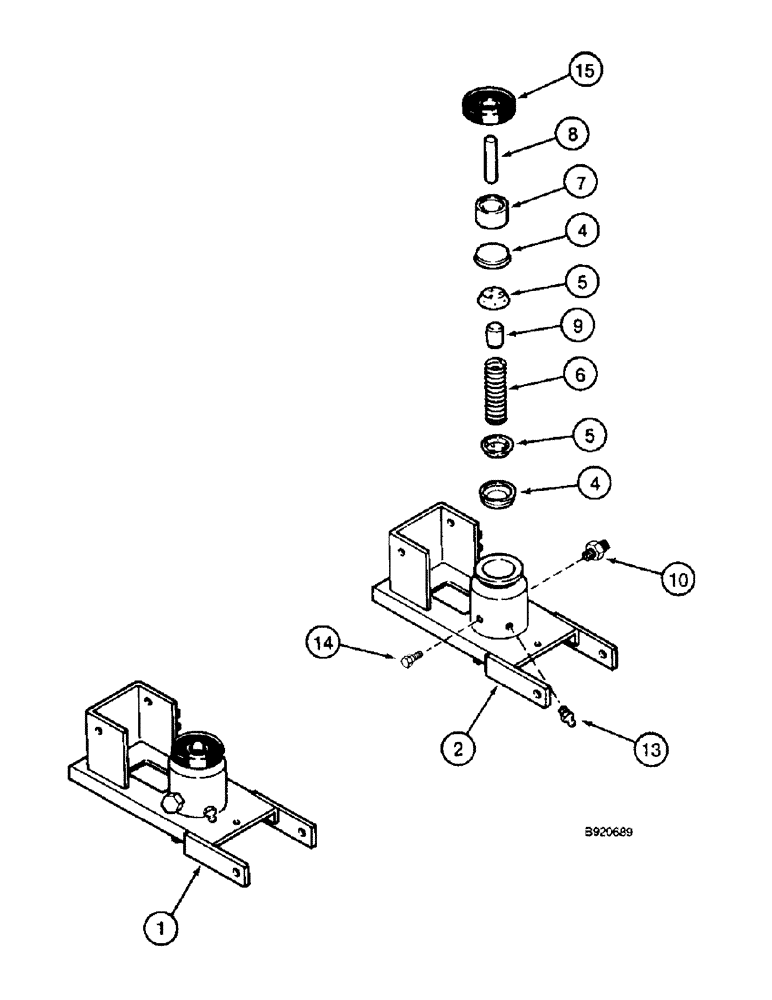

Запчасти Case IH 1800 (7-10) - BRAKE PISTON ACTUATOR ASSEMBLY (5.1) - BRAKES

1

1329740C2

SUPPORT ASSY.

ACTUATOR ASSEMBLY - brake cylinder, right-hand

1шт.

1

1330122C2

SUPPORT

ACTUATOR ASSEMBLY - brake cylinder, left-hand

1шт.

2

NSS

NOT SOLD SEPARAT

SUPPORT - brake actuator, order actuator assembly

1шт.

4

51906H

CUP

- wheel cylinder, 1-1/4 inch diameter

2шт.

5

85105C1

EXPANDER

CUP - wheel cylinder

2шт.

6

84940C1

SPRING

- wheel cylinder

1шт.

7

662616R1

PISTON

- wheel cylinder

1шт.

8

184325C2

PLUNGER

- wheel cylinder

1шт.

9

1281779C1

LARGE PIN

PIN - brake piston spacer

1шт.

10

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.

13

660901R1

VALVE

- bleeder

2шт.

14

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT

1шт.

15

662620R1

COVER

BOOT - wheel cylinder

1шт.

1288942C92

KIT

- repair, wheel cylinder

2шт.
