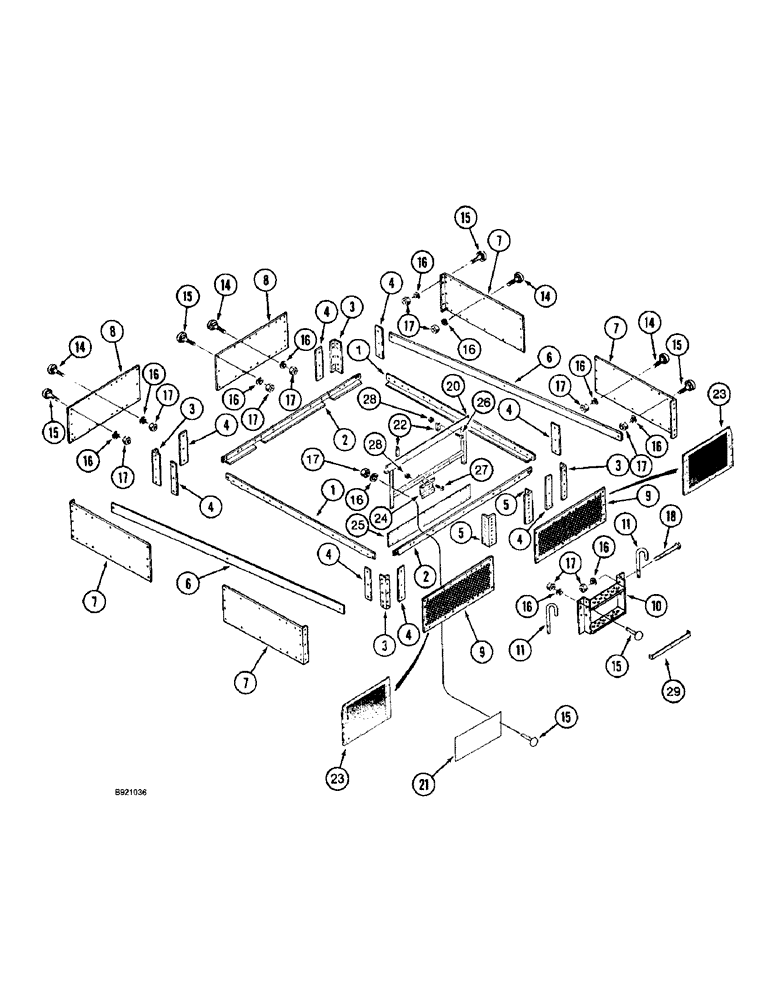

Запчасти Case IH 1800 (9C-22) - BASKET EXTENSION (16) - BASKET

1

1260247C1

SUPPORT

ANGLE - basket extension side

2шт.

2

1260294C2

ANGLE BAR

ANGLE - basket extension end

2шт.

3

1278592C1

SUPPORT

BRACKET - extension corner support

4шт.

4

1288850C1

LARGE PLATE

PLATE - spacer, basket extension

8шт.

5

1278603C1

ANGLE

BRACKET - upper cover, two shown

4шт.

6

1979669C2

FIXING STRIP

STRAP - basket extension

2шт.

7

1278590C1

EXTENSION

- panel side

4шт.

8

1278591C2

COVER

- basket extension end, rear (Replaces cover 1278591C1)

2шт.

9

87261C1

COVER

- basket extension end, front, if used

2шт.

10

1278731C1

STEP

- basket

1шт.

11

1278736C1

COVER

HANDLE - basket

2шт.

14

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

38шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

46шт.

16

492-11038

LOCK WASHER,3/8"

88шт.

17

425-106

NUT,3/8"-16, Cl 5

88шт.

18

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

20

1541084C1

FRAME

- basket opening

1шт.

21

1541101C1

PLATE

- filler

2шт.

22

1541301C1

BRACKET

- support

2шт.

23

1541291C1

EXTENSION

- front

2шт.

24

1541089C1

PIVOT

BRACKET - pivot mount

1шт.

25

1541297C1

PLATE

- filler, center

1шт.

26

470-13812

SCREW,Slotted Pan Hd, 3/8"-16 x 3/4"

- machine, pan head slotted, 3/8 NC x 3/4 inch

4шт.

27

470-13816

SCREW,Slotted Pan Hd, 3/8"-16 x 1"

- machine, pan head slotted, 3/8 NC x 1 inch

6шт.

28

230-4116

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

13шт.

29

1541296C1

SUPPORT

- basket step

1шт.
