(9C-14) - BASKET FLOOR

Запчасти Case IH 1800 (9C-14) - BASKET FLOOR (16) - BASKET

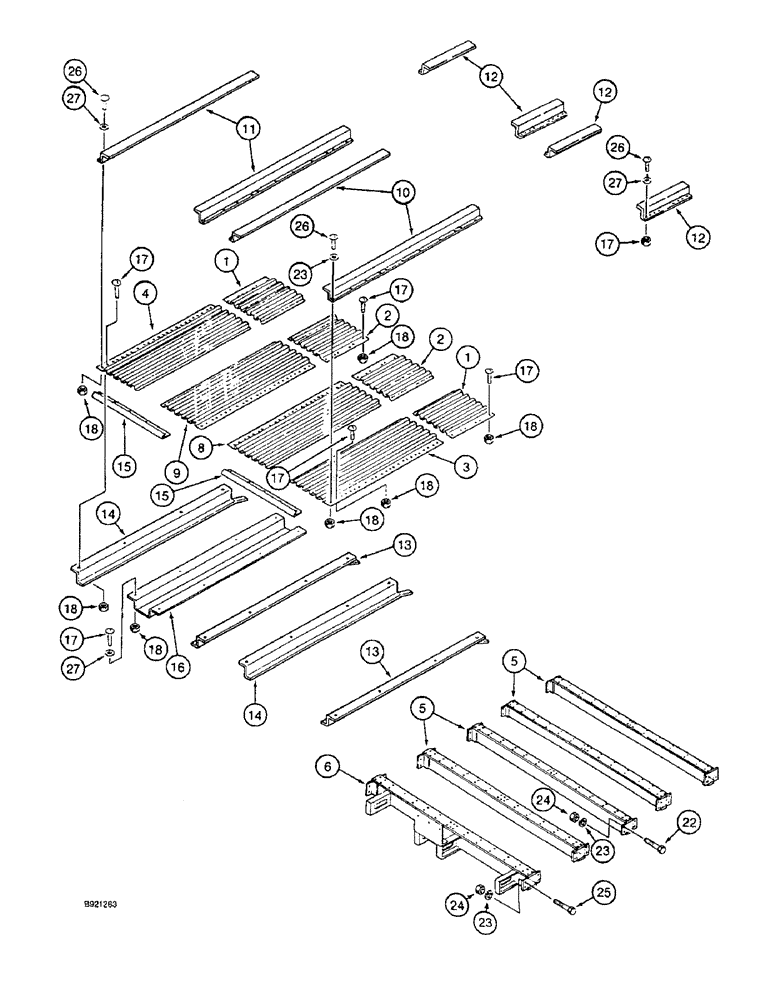

Схема запчастей Case IH 1800 - (9C-14) - BASKET FLOOR (16) - BASKET
1
18
13
18
18
23
18
15
8
26
14
3
12
5
6
17
17
26
25
12
18
23
5
18
17
23
17
1
10
12
13
14
27
27
15
22
2
18
24
4
17
24
17
27
16
11
26
2
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1338887C3

HOPPER

BASKET ASSEMBLY - cotton harvester (See Note)

1шт.

1

1260260C1

PANEL

- floor

2шт.

2

1260274C1

PANEL

- floor

2шт.

3

1260269C2

PANEL

- floor

1шт.

4

1260270C2

PANEL

- floor

1шт.

5

1260275C3

SUPPORT

STRUT - floor (Replaces strut 1260275C1)

4шт.

6

1260290C2

SUPPORT

PANEL - floor

1шт.

8

1262484C2

PANEL

- floor

1шт.

9

1262485C2

PANEL

- floor

1шт.

10

1270076C1

GUIDE

- bracket, basket chain

2шт.

11

1270077C1

GUIDE

- bracket, basket chain

2шт.

12

1270078C1

GUIDE

- bracket, basket chain

4шт.

13

1339112C1

ANGLE

BAR - support, lower front

2шт.

14

1339113C1

ANGLE

BAR - support, lower rear

2шт.

15

1278298C1

GUIDE

- chain

2шт.

16

1278058C1

SUPPORT

- center

1шт.

17

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

425-106

NUT,3/8"-16, Cl 5

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

26

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.
