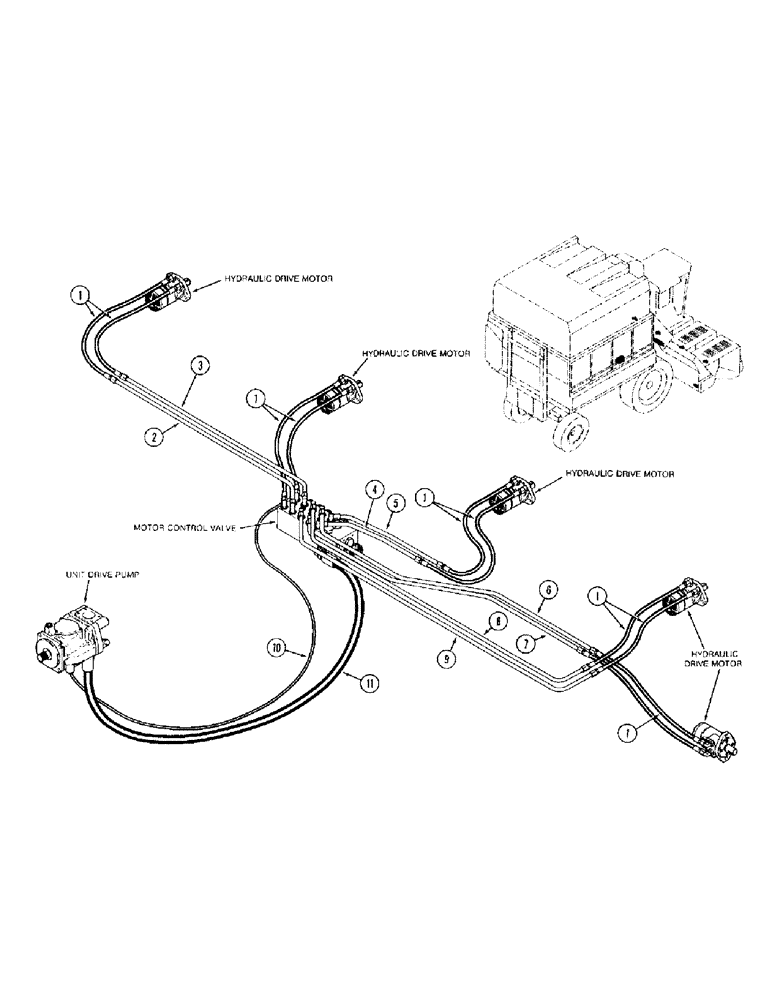

Запчасти Case IH 1800 (1-28) - PICTORIAL INDEX, BRUSH UNIT AND HEADER DRIVE HYDRAULIC SYSTEM (00) - PICTORIAL INDEX

1

Hydraulic Motor Supply and Return Hoses, Page 8-46

1шт.

2

Unit 1 Return Tube, Page 8-46

1шт.

3

Unit 1 Supply Tube, Page 8-46

1шт.

4

Unit 3 Return Tube, Page 8-46

1шт.

5

Unit 3 Supply Tube, Page 8-46

1шт.

6

Auger Drive Supply Tube, Page 8-46

1шт.

7

Auger Drive Return Tube, Page 8-46

1шт.

8

Unit 4 Supply Tube, Page 8-46

1шт.

9

Unit 4 Return Tube, Page 8-46

1шт.

10

Motor Control Valve Sense Hose, Page 8-52

1шт.

11

Motor Control Valve Pressure Hose, Page 8-52

1шт.
