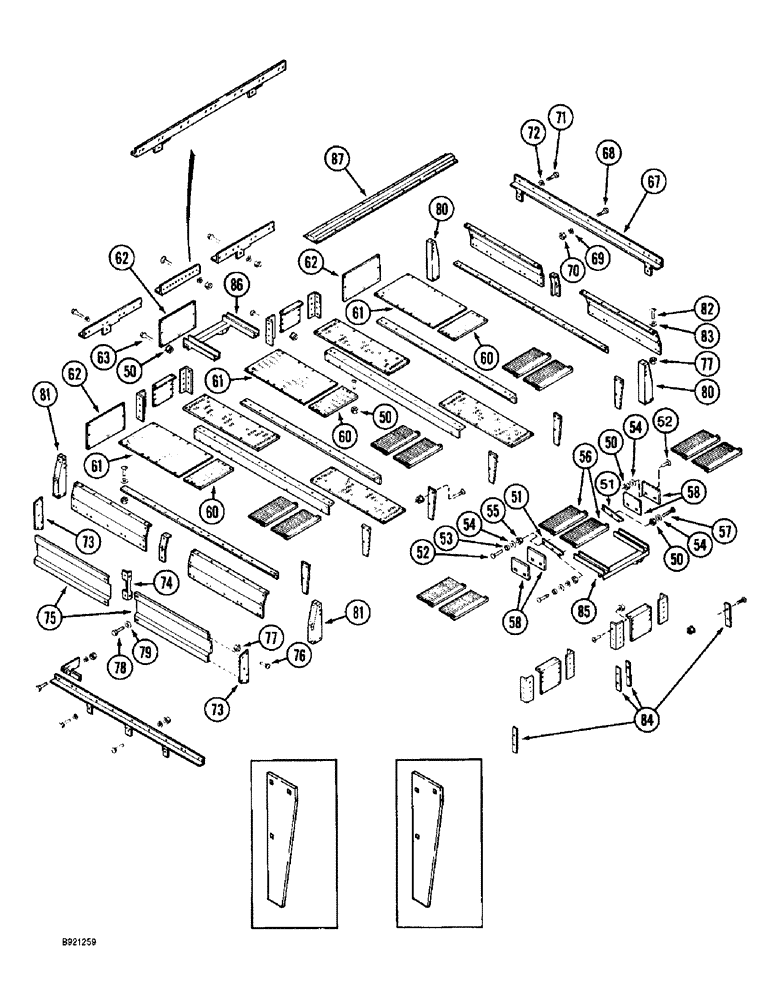

Запчасти Case IH 1800 (9C-04) - BASKET TOP (16) - BASKET

50

231-5146

FLANGE NUT,3/8"-16

1шт.

51

1260284C2

BAR

- cover door

2шт.

52

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - carriage, 3/8 NC x 1-1/2 inch

1шт.

53

561277R1

SPACER,5/8" Tube x 1/2"

- 13/32 x 5/8 x 7/16 inch

2шт.

54

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

55

1306680C1

FLANGE NUT

NUT - hex flange, self-locking, special, 3/8 inch NC

1шт.

56

1260285C1

DEFLECTOR

- basket door

2шт.

57

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

58

1288762C1

LARGE PLATE

PLATE - support

4шт.

60

87008C2

LARGE PLATE

PLATE - top, rear (Replaces plate 87008C1)

3шт.

61

87793C2

LARGE PLATE

PLATE - top, front (Replaces plate 87793C1)

3шт.

62

1270164C2

COVER

- rear

3шт.

63

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

1шт.

67

1288785C3

SUPPORT

BRACKET - side, left-hand

1шт.

68

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

69

492-11038

LOCK WASHER,3/8"

1шт.

70

425-106

NUT,3/8"-16, Cl 5

1шт.

71

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

72

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

73

1278767C1

LARGE PLATE

END - channel

2шт.

74

1278768C1

SUPPORT

- center

1шт.

75

1278766C2

CONDUIT

CHANNEL - side

2шт.

76

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

77

231-5146

FLANGE NUT,3/8"-16

1шт.

78

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

79

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

1шт.

80

1260278C3

LARGE PLATE

PLATE - end, left-hand (Replaces plate 1260278C1)

2шт.

81

1260279C3

LARGE PLATE

PLATE - end, right-hand (Replaces plate 1260279C1)

2шт.

82

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

83

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

84

1270282C1

LARGE PLATE

BAR - spacer

12шт.

85

1278012C4

CHANNEL

- cylinder mount, front

1шт.

86

1278013C4

CHANNEL

- mount, rear

1шт.

87

87530C1

SUPPORT

- top

1шт.

59

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

1шт.
