(9C-02) - BASKET TOP

Запчасти Case IH 1800 (9C-02) - BASKET TOP (16) - BASKET

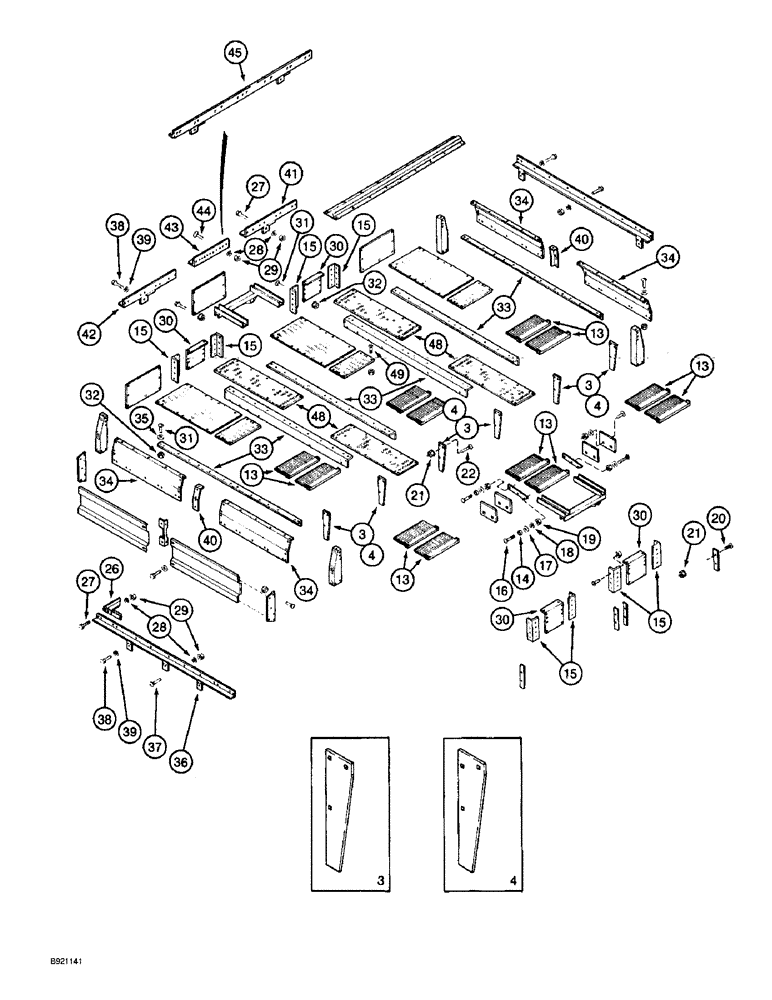

Схема запчастей Case IH 1800 - (9C-02) - BASKET TOP (16) - BASKET
13
3
38
44
4
15
42
48
31
34
36
39
27
28
16
49
13
20
29
14
17
30
40
13
29
26
30
13
34
35
3
33
4
13
4
37
22
34
15
48
43
45
19
33
28
31
3
41
32
15
40
30
18
38
32
4
21
21
34
33
15
15
15
27
3
39
30
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

3

87049C1

LARGE PLATE

PLATE - grate, side, if used

6шт.

4

1994942C1

LARGE PLATE

PLATE - grate, side, if used

6шт.

13

221224C1

DEFLECTOR

- basket

12шт.

14

612233R1

SPACER,5/8" Tube x 1 1/8"

- 13/32 x 5/8 x 1-3/16 inch

2шт.

15

223004C1

ANGLE

BRACKET - support

8шт.

16

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

2шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

21

231-5146

FLANGE NUT,3/8"-16

1шт.

22

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - carriage, 3/8 NC x 1-1/2 inch

12шт.

26

1278117C1

ANGLE

BRACE - corner

4шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

28

492-11038

LOCK WASHER,3/8"

1шт.

29

425-106

NUT,3/8"-16, Cl 5

1шт.

30

1260281C2

SUPPORT

- plate

4шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

32

231-5146

FLANGE NUT,3/8"-16

1шт.

33

1260291C5

SUPPORT

BRACKET - support (Replaces bracket 1260291C4)

6шт.

34

1260280C2

COVER

- side

4шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

36

1288774C3

SUPPORT

BRACKET - side, right-hand

1шт.

37

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

1шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

39

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

40

1260292C1

SUPPORT

- basket

2шт.

41

1288777C2

ANGLE BAR

ANGLE - support, left-hand, front and rear, if used

2шт.

42

1288778C2

ANGLE BAR

BRACKET - support, right-hand, front and rear, if used

2шт.

43

1270062C1

ANGLE BAR

BRACKET - support, tie, if used

2шт.

44

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

45

1994963C1

SUPPORT

BRACKET - support, front and rear, if used (Replaces items 41, 42 and 43)

2шт.

48

1260282C5

LARGE PLATE

PLATE - extension (Replaces plate 1260282C4)

4шт.

49

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.
