Запчасти Case IH 1800 (9B-28) - DISTRIBUTOR (15) - HANDLING SYSTEM

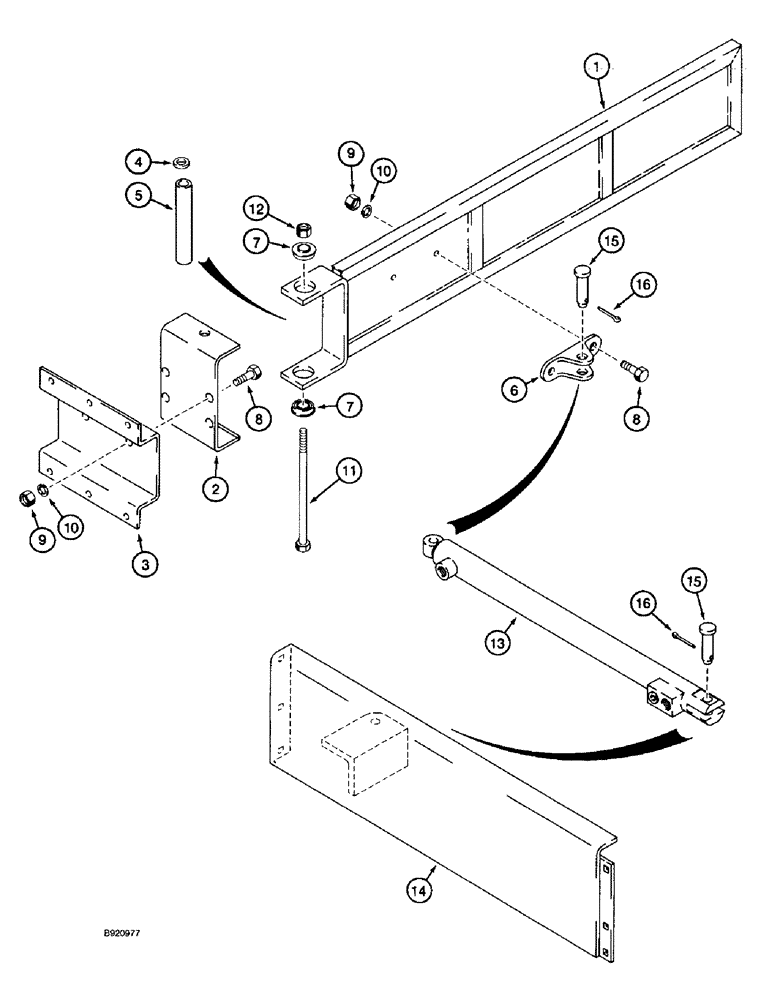

Схема запчастей Case IH 1800 - (9B-28) - DISTRIBUTOR (15) - HANDLING SYSTEM
10
3
10
4
5
15
16
16
6
13
11
9
15
1
2
7
14
8
12
9
8
7

Артикул

Название

Примечание

Количество

1

1541073C1

ARM ASSY.

ARM - distributor

1шт.

2

1541300C1

PIVOT

- distributor

1шт.

3

1541089C1

PIVOT

BRACKET - pivot mount

1шт.

4

1541302C1

SPACER

- bearing

1шт.

5

1541317C1

TUBE

SUPPORT - bearing

1шт.

6

1541088C1

BRACKET

- cylinder mounting, distributor

1шт.

7

1541318C1

BEARING,15.999 mm ID x 36 mm OD x 14.402 mm

- distributor (Replaces bearing 1541079C1)

2шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

6шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

11

413-10144

BOLT,Hex, 5/8" - 11 x 9", Gr 5

- hex, 5/8 NC x 9 inch

1шт.

12

230-41110

LOCK NUT,5/8"-11, GA

NUT - hex, self-locking, 5/8 inch NC

1шт.

13

1343726C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - distributor, parts list page 8-79

1шт.

14

1541080C1

MOUNTING PARTS

BRACKET - cylinder mounting

1шт.

15

1338701C2

CLEVIS PIN,15.87mm OD x 63mm L

PIN - 5/8 x 2-1/4 inch

2шт.

16

432-1216

COTTER PIN,3/16" x 1"

2шт.
