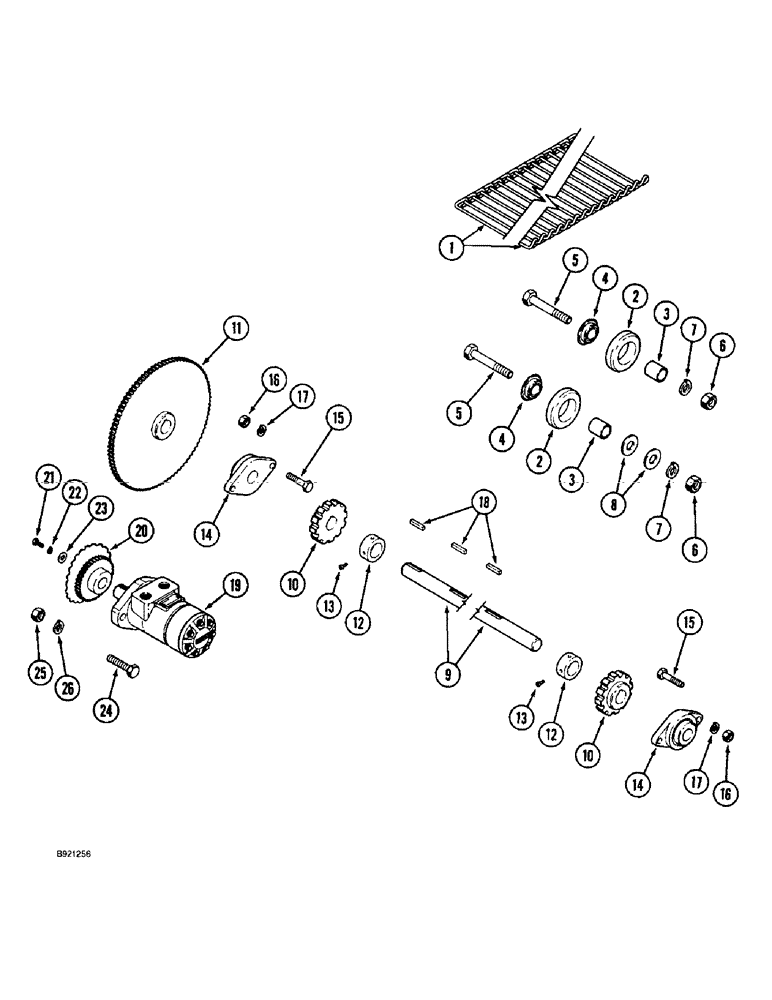

Запчасти Case IH 1800 (9B-22) - BOLL BOX, DRIVE (15) - HANDLING SYSTEM

1

1541110C1

CHAIN (AG)

CHAIN - boll conveyor

1шт.

2

1541111C1

CHAIN (AG)

IDLER - chain

4шт.

3

1541112C1

SPACER

- idler

4шт.

4

1541116C1

FRONT IDLER

BEARING - idler

4шт.

5

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

4шт.

6

425-1012

NUT,3/4"-10, G5

4шт.

7

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

8

495-11081

WASHER,3/4", SAE

8шт.

9

1541037C1

SHAFT

- chain drive

1шт.

10

1541038C1

SPROCKET ASSY.

SPROCKET - chain drive

2шт.

11

1541118C1

GEAR

- shaft

1шт.

12

1541120C1

COLLAR

- shaft

2шт.

13

83-1256

SET SCREW,Hex Soc, 1/4"-20 x 3/8"

SCREW - set, hex socket headless, 1/4 NC x 3/8 inch, cup point

4шт.

14

1541179C1

BEARING,34.03 mm ID x 69.85 mm OD x 31.24 mm

- chain drive

2шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

16

425-106

NUT,3/8"-16, Cl 5

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

1541176C1

KEY

- square

3шт.

19

1541141C2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic (Replaces motor assembly 1541141C1)

1шт.

1542724C2

KIT - seal (Replaces seal 1542724C1)

1шт.

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

20

1541072C1

GEAR

- motor

1шт.

21

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

195-81024

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch

1шт.

24

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

26

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
