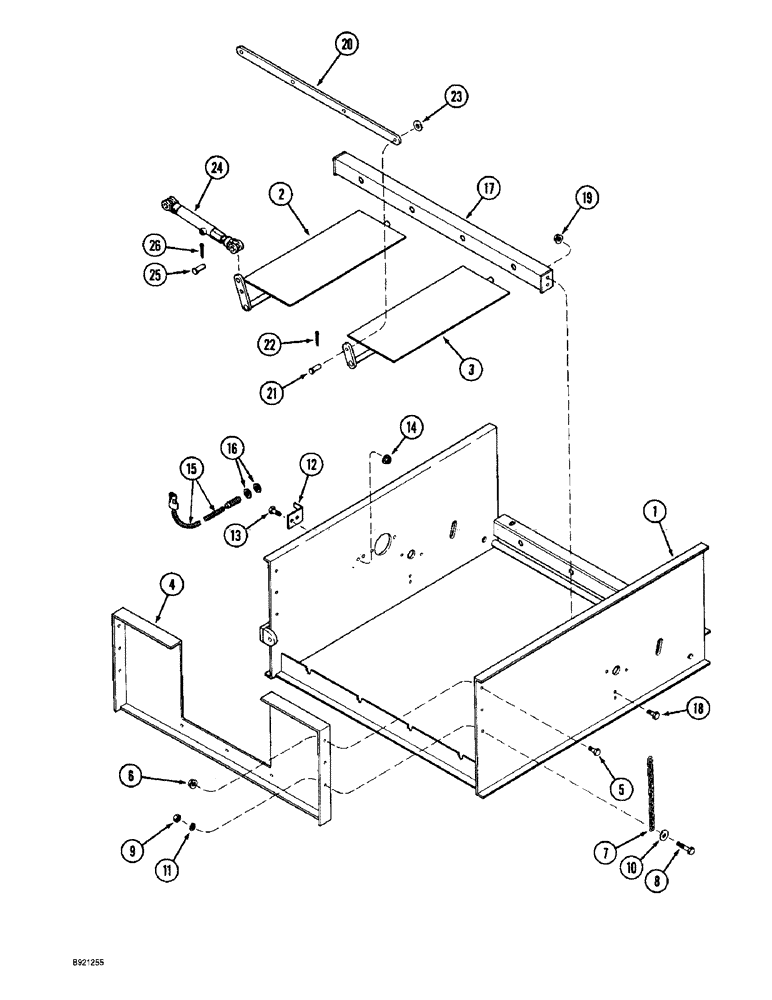

Запчасти Case IH 1800 (9B-20) - BOLL BOX, FRAME (15) - HANDLING SYSTEM

1

1541029C1

CHASSIS

FRAME - boll box

1шт.

2

1541113C1

SUPPORT

FLAP - cylinder, short

1шт.

3

1541114C1

SUPPORT

FLAP - short

3шт.

4

1541062C1

PANEL

- rear

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

6

231-5146

FLANGE NUT,3/8"-16

4шт.

7

1541061C1

CHAIN (AG)

CHAIN - hanger

2шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

10

195-81025

WASHER,3/8" x 13/16" x .065"

- flat, 13/32 x 13/16 x 1/16 inch

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

1541154C1

BRACKET

- pick-up sensor

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

14

231-5146

FLANGE NUT,3/8"-16

2шт.

15

1983681C1

SENSOR

- transducer reluctance

1шт.

16

84116C1

NUT

- hex, self-locking, 3/4 inch NC, sensor retaining

2шт.

17

1541060C1

SUPPORT

FLAP - support

1шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

19

231-5146

FLANGE NUT,3/8"-16

4шт.

20

1541069C1

LINK

- connecting plate

1шт.

21

439-1824

HEADED PIN,1/2" x 1 1/2", G2

PIN - headed, 1/2 x 1-1/2 inch, grade 2

4шт.

22

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

23

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

8шт.

24

REF

INSTRUCTION

CYLINDER ASSEMBLY - boll box, parts list page 8-93

1шт.

25

427-10161

CLEVIS PIN,15.88mm OD x 40.89mm L

PIN - clevis, 5/8 x 1-39/64 inch

2шт.

26

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.
