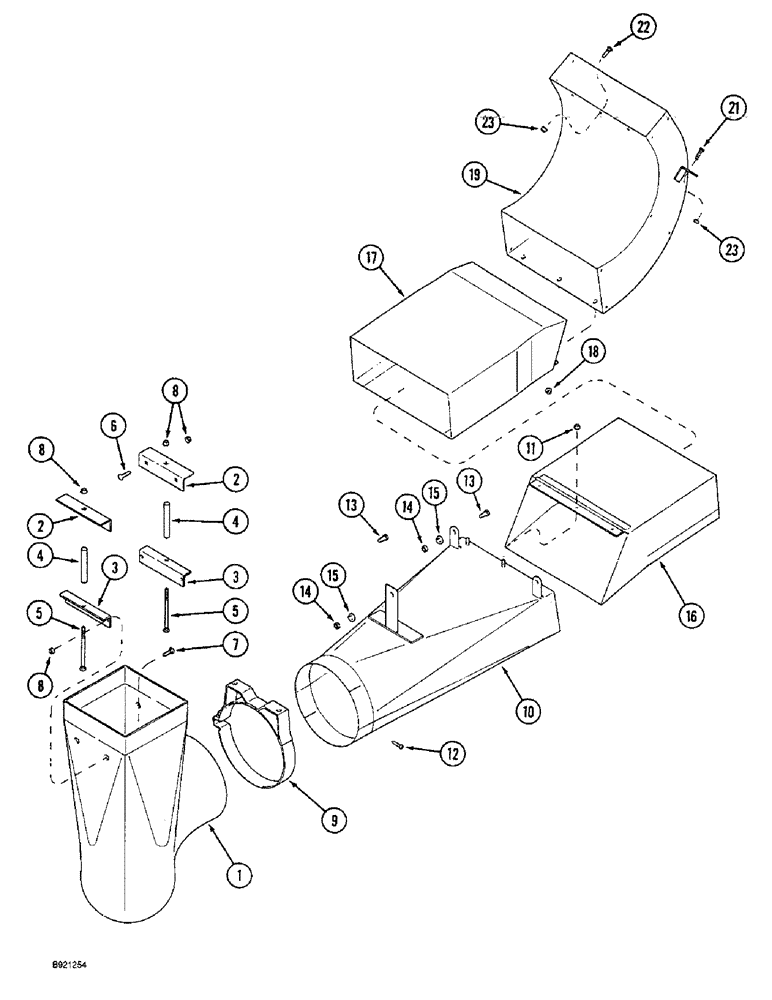

Запчасти Case IH 1800 (9B-18) - AIR SYSTEM (15) - HANDLING SYSTEM

1

220981C1

ELBOW

- fan outlet

1шт.

2

1541027C1

ANGLE

- pipe, upper

2шт.

3

222353C1

ANGLE

- pipe, lower

2шт.

4

1541098C1

SPACER

- pipe

2шт.

5

11-580

CARRIAGE BOLT,Short NK, 5/16"-18 x 5", G2

BOLT - carriage, 5/16 NC x 5 inch, grade 2

2шт.

6

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

4шт.

7

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

9

603697C91

CLAMP

BAND - air cleaner mounting, No. 154, Type F

1шт.

10

1998921C1

PIPE

- transition

1шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

12

24411R1

SELF-TAP SCREW

- tapping

4шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

14

425-106

NUT,3/8"-16, Cl 5

3шт.

15

492-11038

LOCK WASHER,3/8"

3шт.

16

1998917C1

CHUTE ASSY.

CHUTE - air

1шт.

17

1998910C1

CHUTE ASSY.

CHUTE - air

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

19

1998960C1

PIPE

- elbow nozzle

1шт.

21

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

22

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

3шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.
