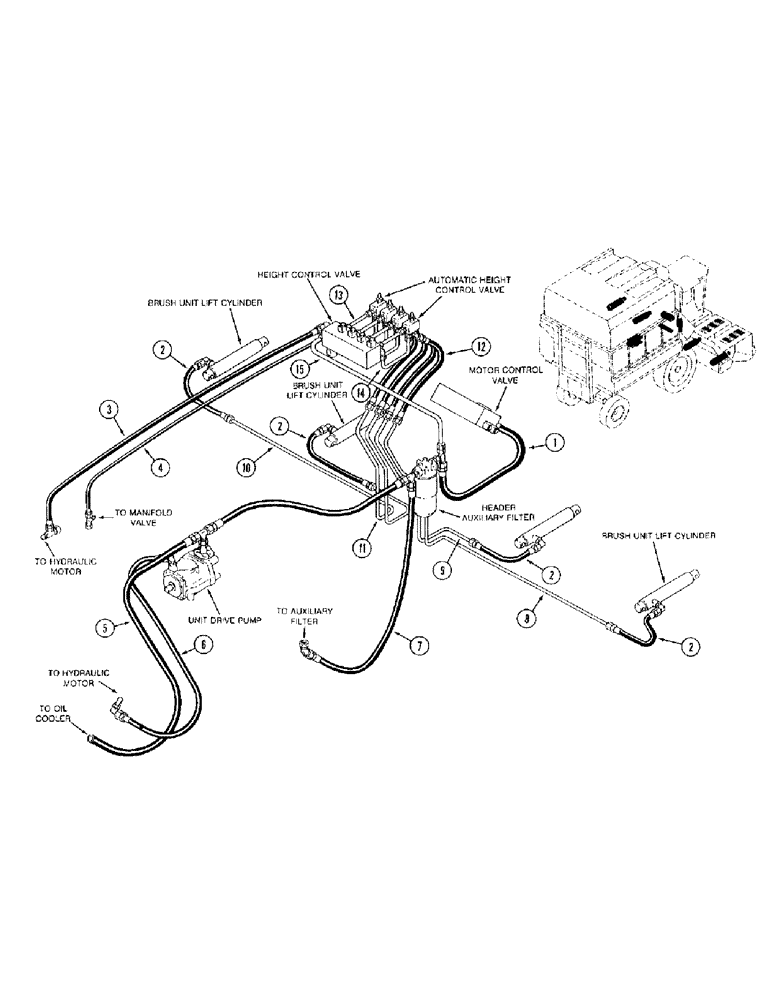

Запчасти Case IH 1800 (1-26) - PICTORIAL INDEX, HEADER HEIGHT AND BRUSH UNIT LIFT HYDRAULIC SYSTEM PRIOR TO P.I.N. JJC133070 (00) - PICTORIAL INDEX

1

Motor Control Valve Return Hose, Page 8-48

1шт.

2

Lift Cylinder Pressure Hoses, Page 8-34

1шт.

3

Height Control Valve Pressure Hose, Page 8-46

1шт.

4

Height Control Valve Sense Hose, Page 8-46

1шт.

5

Unit Drive Pump Return Hose, Page 8-46

1шт.

6

Unit Drive Pump Case Drain Hose, Page 8-46

1шт.

7

Header Auxiliary Filter Return Hose, Page 8-46

1шт.

8

Unit 4 Height Control Tube, Page 8-34

1шт.

9

Unit 3 Height Control Tube, Page 8-34

1шт.

10

Unit 1 Height Control Tube, Page 8-34

1шт.

11

Unit 2 Height Control Tube, Page 8-34

1шт.

12

Height Control Valve Pressure Hoses, Page 8-34

1шт.

13

Height Control Valve Return Tubes, Page 8-34

1шт.

14

Height Control Valve Supply Tubes, Page 8-34

1шт.

15

Flow Divider Return Tube, Page 8-48

1шт.
