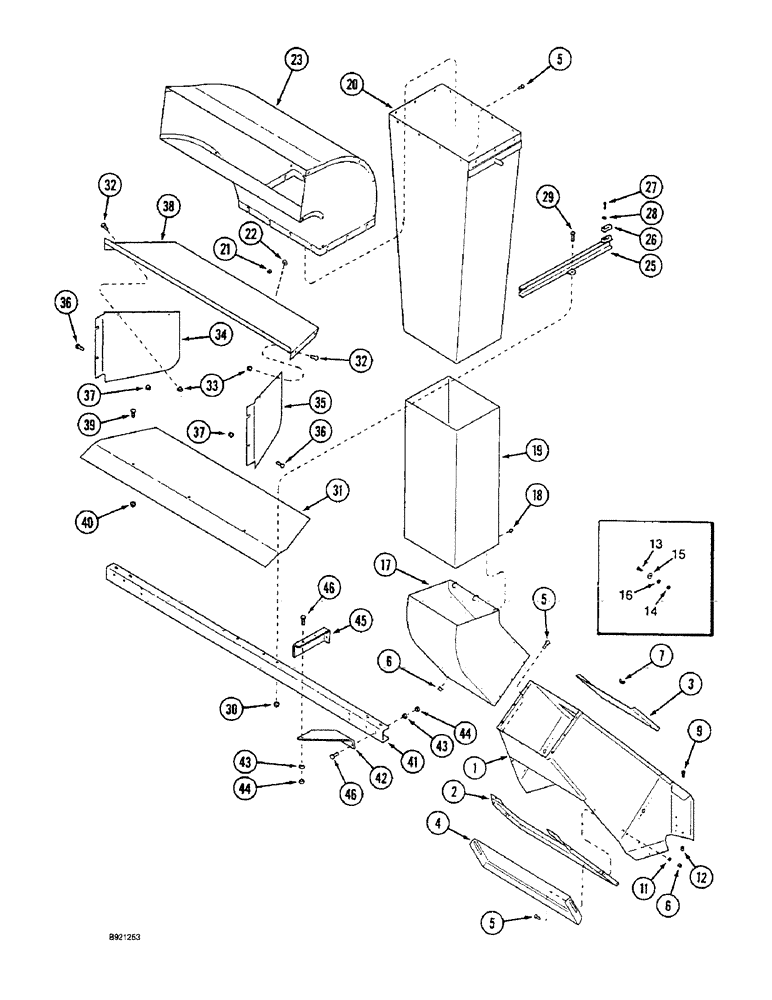

Запчасти Case IH 1800 (9B-16) - CONVEYOR SYSTEM (15) - HANDLING SYSTEM

1

1999003C1

CHAMBER

- air

1шт.

2

1999008C1

BAFFLE

- air chamber, lower

1шт.

3

222270C1

COVER

- boll separator

1шт.

4

1541028C1

BAFFLE

- air chamber, adjustable

1шт.

5

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

20шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

20шт.

7

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

3шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

12

231-5146

FLANGE NUT,3/8"-16

4шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

15

195-81024

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch

4шт.

16

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

17

1998923C1

CHUTE ASSY.

CHUTE - air

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

19

1998927C1

CHUTE ASSY.

CHUTE - air

1шт.

20

1999010C1

CHUTE ASSY.

CHUTE - vertical discharge

1шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

14шт.

22

95-11034

WASHER,1/4"

- flat, 11/32 x 11/16 x 1/16 inch

14шт.

23

1999092C1

HOOD

- elbow

1шт.

25

1999075C1

SUPPORT ASSY.

SUPPORT - elevator arm, right-hand

1шт.

25

1999074C1

SUPPORT ASSY.

SUPPORT - elevator arm, left-hand, not shown

1шт.

26

1999077C1

BLOCK

- pivot, upper

2шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

29

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

30

231-5146

FLANGE NUT,3/8"-16

2шт.

31

1541090C1

HOOD

- extension, lower

1шт.

32

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

3шт.

33

231-5146

FLANGE NUT,3/8"-16

3шт.

34

1541091C1

HOOD

- side shield, left-hand

1шт.

35

1541092C1

HOOD

- side shield, right-hand

1шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

37

231-5146

FLANGE NUT,3/8"-16

4шт.

38

1541093C1

HOOD

- cover

1шт.

39

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

4шт.

40

231-5146

FLANGE NUT,3/8"-16

4шт.

41

1278644C2

CHANNEL

- chute support

1шт.

42

1278646C1

SUPPORT

BRACE - upper channel support, right-hand

1шт.

42

1278645C1

SUPPORT

BRACE - upper channel support, left-hand, not shown

1шт.

43

492-11038

LOCK WASHER,3/8"

8шт.

44

425-106

NUT,3/8"-16, Cl 5

8шт.

45

1278642C1

ANGLE BAR

BRACKET - upper chute support, right-hand

1шт.

45

1278641C1

ANGLE BAR

BRACKET - upper chute support, left-hand, not shown

1шт.

46

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

27

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.
