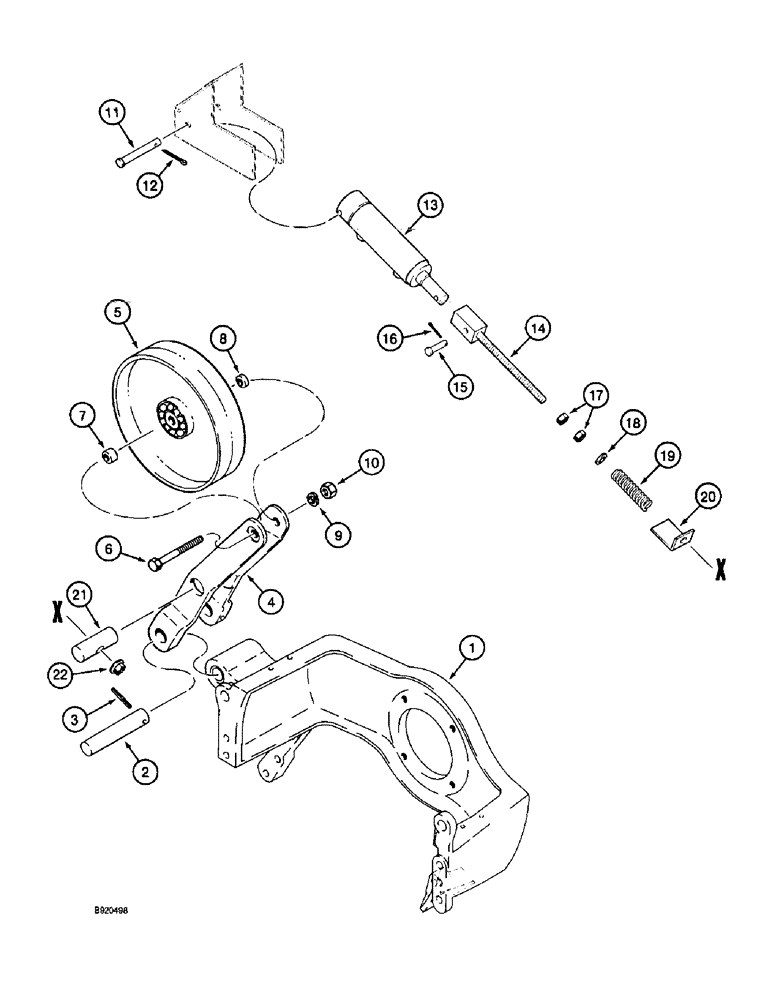

Запчасти Case IH 1800 (9B-12) - FAN PULLEY AND LINKAGE, USED WITH 10 INCH DIAMETER IDLER PULLEY (15) - HANDLING SYSTEM

1

1990144C3

HOUSING

ASSEMBLY - pulley, parts list page 6-7B

1шт.

2

1990151C1

SHAFT,25.4mm OD x 135mm L

- fan idler pivot

1шт.

3

438-11232

LOCK PIN,3/16" x 2", Slotted

Pin, 3/16" x 2", Slotted

1шт.

4

1546304C1

ARM

- fan pulley idler

1шт.

5

1990198C1

PULLEY

- fan engage idler, 10 inch diameter

1шт.

6

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

7

25847D

SPACER,1/2" X-Strng Pipe x 11/16"

- 1/2 X 11/16 inch, idler pulley

1шт.

8

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

- pipe, 1/2 ID x 7/16 inch, idler pulley (Replaces spacer 622535R1)

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

11

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch, grade 2

1шт.

12

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

13

133405C92

CYLINDER

ASSEMBLY - 2 (51) ID x 2-1/2 inch (63.5 mm) stroke, parts list page 8-59

1шт.

13

87337239R

REMAN-HYD CYLINDER

1800 CASE IH COTTON HARVESTER, Assembly 2 (51) ID x 2-1/2 inch (63.5 mm) stroke (7/91-), Reman for New PN 133405C92

1шт.

13

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

14

1990059C1

STEM

ROD - fan idler

1шт.

15

427-6156

CLEVIS PIN,9.53mm OD x 39.67mm L

PIN, CLEVIS, , Hardened 3/8" x 1 9/16"

1шт.

16

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

18

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

19

1990062C1

SPRING

- fan idler

1шт.

20

1990058C1

ANGLE

- spring gauge

1шт.

21

1990152C1

PIN,31.75mm OD x 90mm L

- pivot rod

1шт.

22

231-5348

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange, self-locking, 1/2 inch NC

1шт.
