Запчасти Case IH 1800 (9A-26) - HEIGHT CONTROL MOUNTING (13) - PICKING SYSTEM

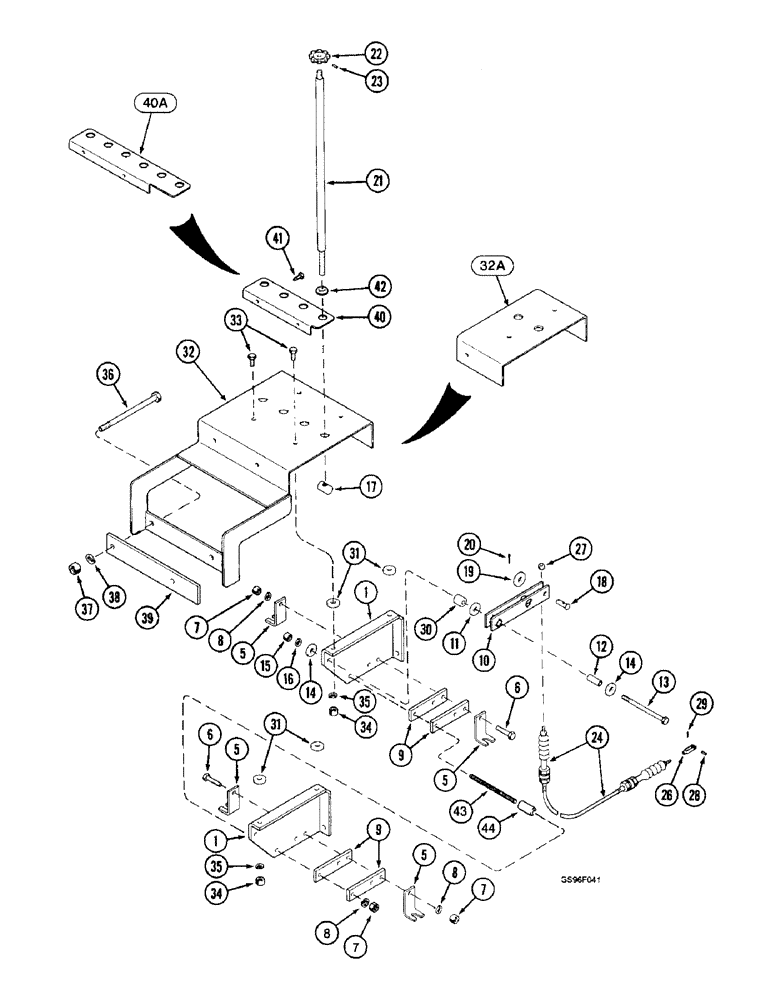

Схема запчастей Case IH 1800 - (9A-26) - HEIGHT CONTROL MOUNTING (13) - PICKING SYSTEM
23
5
38
18
5
19
8
17
7
37
24
8
14
40
21
20
6
5
32a
7
15
41
31
7
35
34
6
32
27
9
40a
39
31
33
5
9
30
22
14
13
29
1
44
16
1
11
43
36
8
26
12
28
34
35
10
42

Артикул

Название

Примечание

Количество

1

222199C1

SUPPORT

- valve

2шт.

5

202450C1

CLIP

- control cable

4шт.

6

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

203835C1

LARGE PLATE

SPACER - valve

4шт.

10

202053C2

ROCKSHAFT

- control valve

4шт.

11

495-81113

WASHER,0.34" ID x 0.75" OD x 0.18" Thk

- flat, 11/32 x 3/4 x 3/16 inch

2шт.

12

202059C1

SPACER

- long

4шт.

13

413-576

BOLT,Hex, 5/16" - 18 x 4-3/4", Gr 5

- hex, 5/16 NC x 4-3/4 inch

2шт.

14

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

4шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

16

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

202368C1

ROD

- trunnion control valve

4шт.

18

202371C1

PIN

- cable pivot

4шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

20

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

21

222198C1

ROD

- control valve

4шт.

22

672684R1

KNOB

- control valve

4шт.

23

38-1812

LOCK PIN,1/8" x 3/4", Slotted

Pin, (replaces pin 18607R1) 1/8" x 3/4", Slotted

4шт.

24

1329387C1

CABLE

- height control, unit No. 1, 2 and 3, 110 inch (2794 mm) long

3шт.

24

1329386C1

CABLE

- height control, unit No. 4, 144 inch (3658 mm) long

1шт.

24

1329427C1

CABLE

- height control, with cross auger extension, 200 inch (5080 mm) long

1шт.

26

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, No 10 NF (Replaces clevis 186956)

4шт.

27

225-14210

NUT,#10-32

12шт.

28

427-3058

CLEVIS PIN,3/16" x .580"

PIN, CLEVIS, , Hardened (Replaces pin 138082) 3/16" x .580"

4шт.

29

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

4шт.

30

88594H

SPACER

- pivot

4шт.

31

1541172C1

INSULATOR BLOCK

ISOMOUNT - support

4шт.

32

1541096C1

MOUNTING PARTS

MOUNTING - height control

1шт.

32a

1541303C1

MOUNTING - height control extension, used with six row harvesters

1шт.

33

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

8шт.

34

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

35

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

36

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.

37

425-106

NUT,3/8"-16, Cl 5

2шт.

38

492-11038

LOCK WASHER,3/8"

2шт.

39

1541173C1

SPACER

- rubber

1шт.

40

1541155C1

BRACKET

- height control rod

1шт.

40a

1541304C1

BRACKET - height control rod, used with six row harvesters

1шт.

1998946C1

PIPE - all thread, 5/16-18 inch, used with six row harvesters

2шт.

41

280-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

2шт.

42

248-1146

GROMMET,5/8" ID x 7/8" Groove Dia

- height control rod, rubber, 7/8 inch groove diameter (Replaces grommet 1541174C1)

4шт.

43

1541262C1

ROD

STUD - special, 5/16 inch NC, all-thread

2шт.

44

1541263C1

SPACER

- 15/16 inch long

2шт.

Выбрано товаров: 45
