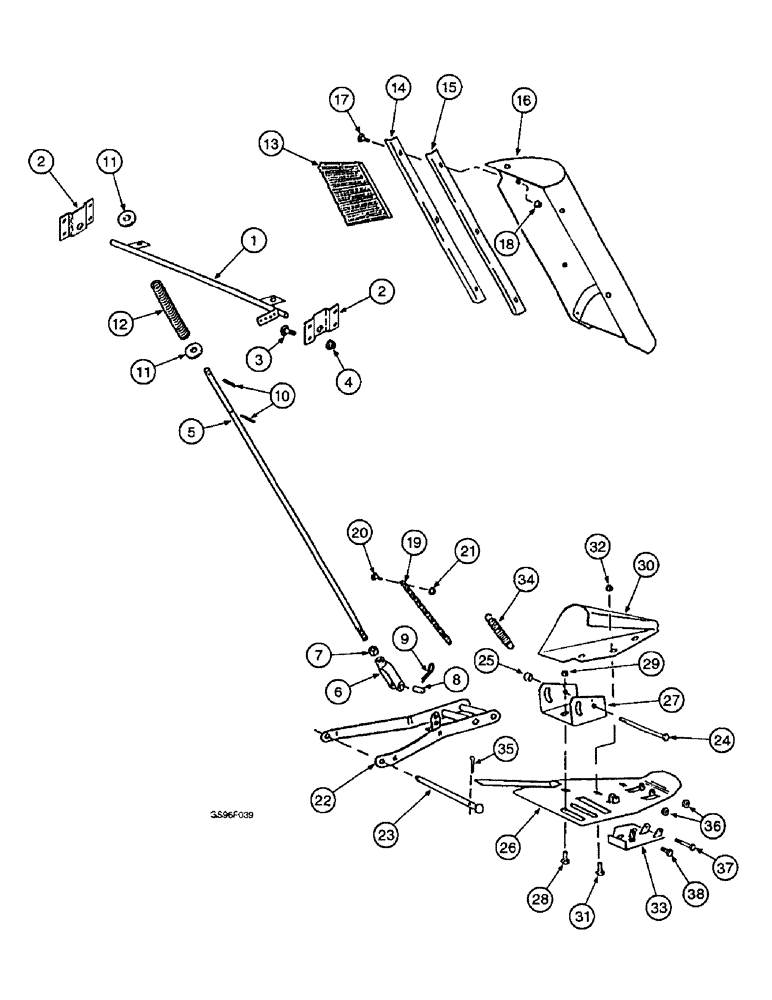

Запчасти Case IH 1800 (9A-25A) - HEIGHT CONTROL AND PLANT GUIDE, LOW PROFILE (13) - PICKING SYSTEM

1

1541372C1

ROCKSHAFT

- height control, low profile

1шт.

2

203409C1

SUPPORT

BRACKET - rockshaft

2шт.

3

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

8шт.

4

231-5146

FLANGE NUT,3/8"-16

8шт.

5

1541376C1

ROD

- shoe push

2шт.

6

213-128

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, ADJUSTABLE, 1/2"-20 x 3"

2шт.

7

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

8

384308R2

PIN,12.53mm OD x 28.45mm L

- clevis, push rod

2шт.

9

153528C1

COTTER PIN

- spring

2шт.

10

438-11216

LOCK PIN,3/16" x 1", Slotted

PIN - cotter, 3/16 x 1 inch

4шт.

11

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

6шт.

12

304505R1

SPRING

- push rod

2шт.

13

219628C1

BRUSH, COMMUTATOR

BRUSH - support

6шт.

14

1998978C1

SUPPORT

- long

2шт.

15

1998979C1

SUPPORT

- short

2шт.

16

1541051C1

GUIDE

- plant, right-hand, shown

1шт.

16

1541050C1

GUIDE

- plant, left-hand

1шт.

17

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

6шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

19

222388C1

CHAIN (AG)

CHAIN - stop

2шт.

20

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

BOLT - carriage, 1/4 NC x 1 inch

2шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

22

1541388C1

BRACKET

- height control pivot, right-hand, shown

1шт.

22

1541387C1

BRACKET

- height control pivot, left-hand

1шт.

23

1541422C1

PIN ASSY.

PIN - plant lifter pivot assembly

2шт.

24

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

4шт.

25

231-5146

FLANGE NUT,3/8"-16

4шт.

26

1541402C1

SUPPORT

LIFTER - plant, right-hand, shown

1шт.

26

1541401C1

SUPPORT

LIFTER - plant, left-hand

1шт.

27

1541400C1

PLATE

- plant lifter mounting

2шт.

28

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

4шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

30

1541417C1

SHEET

- plant lifter extension, right-hand, shown

1шт.

30

1541418C1

SHEET

- plant lifter extension, left-hand

1шт.

31

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

6шт.

32

231-5146

FLANGE NUT,3/8"-16

6шт.

33

1541430C1

SENSOR

- shoe, right-hand, shown

1шт.

33

1541431C1

SENSOR

- shoe, left-hand

1шт.

34

1998971C1

SPRING

- counter

2шт.

35

432-1216

COTTER PIN,3/16" x 1"

2шт.

36

230-4116

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

37

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

2шт.

38

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.
