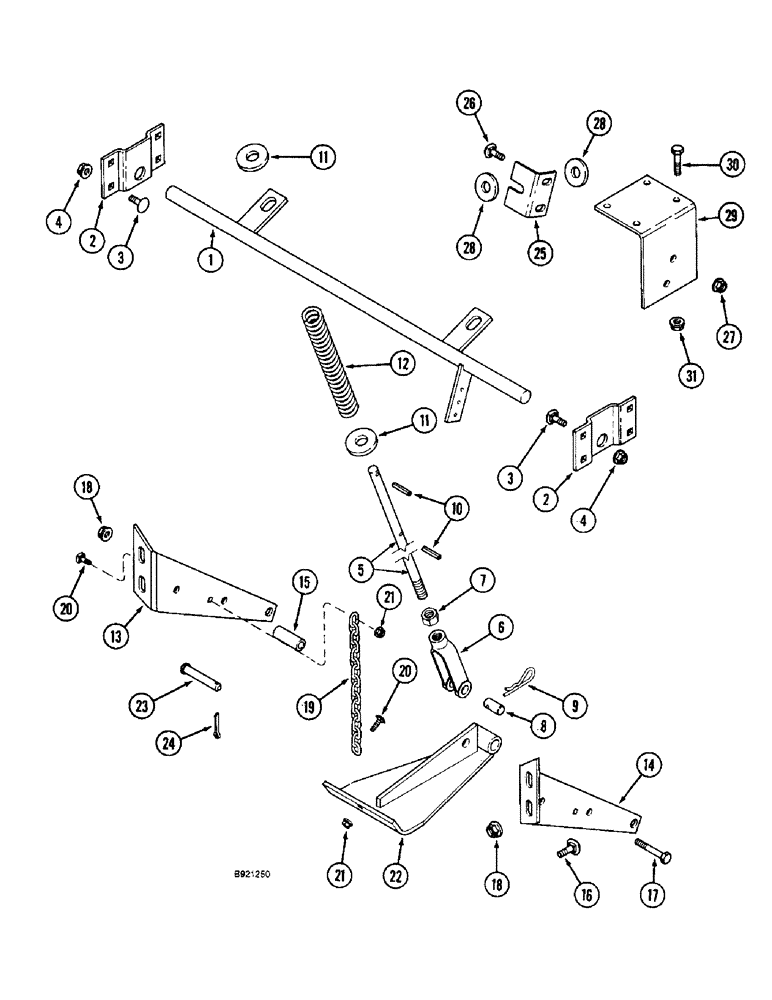

Запчасти Case IH 1800 (9A-24) - HEIGHT CONTROL (13) - PICKING SYSTEM

1

217806C1

ROCKSHAFT

- height control

1шт.

2

203409C1

SUPPORT

BRACKET - rockshaft

2шт.

3

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

8шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

5

217813C1

STEM

ROD - shoe push

2шт.

6

213-128

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS, ADJUSTABLE, 1/2"-20 x 3"

2шт.

7

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

8

384308R2

PIN,12.53mm OD x 28.45mm L

- rod clevis

2шт.

9

153528C1

COTTER PIN

- hair-type

2шт.

10

438-11216

LOCK PIN,3/16" x 1", Slotted

PIN - cotter, 3/16 25 mm

4шт.

11

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

6шт.

12

304505R1

SPRING

- push rod

2шт.

13

222134C1

SUPPORT

- height control, left-hand

2шт.

14

222135C1

SUPPORT

- height control, right-hand

2шт.

15

S3780

SPACER,3/8" Pipe x 1 3/4"

2шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

17

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

2шт.

18

231-5146

FLANGE NUT,3/8"-16

10шт.

19

222388C1

CHAIN (AG)

CHAIN - stop

2шт.

20

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

BOLT - carriage, 1/4 NC x 3/4 inch

4шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

22

203416C1

SKID/SHOE

SHOE - sensing control

2шт.

23

439-5840

HEADED PIN,1/2" x 2 1/2"

PIN - headed, 1/2 x 2-1/2 inch (Replaces pin 22804R1)

2шт.

24

432-1216

COTTER PIN,3/16" x 1"

2шт.

25

203411C1

SUPPORT

- control cable

1шт.

26

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.

28

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch

2шт.

29

217811C1

ANGLE

- cable bracket

1шт.

30

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.
