Запчасти Case IH 1800 (9A-20) - CROSS AUGER DRIVE (13) - PICKING SYSTEM

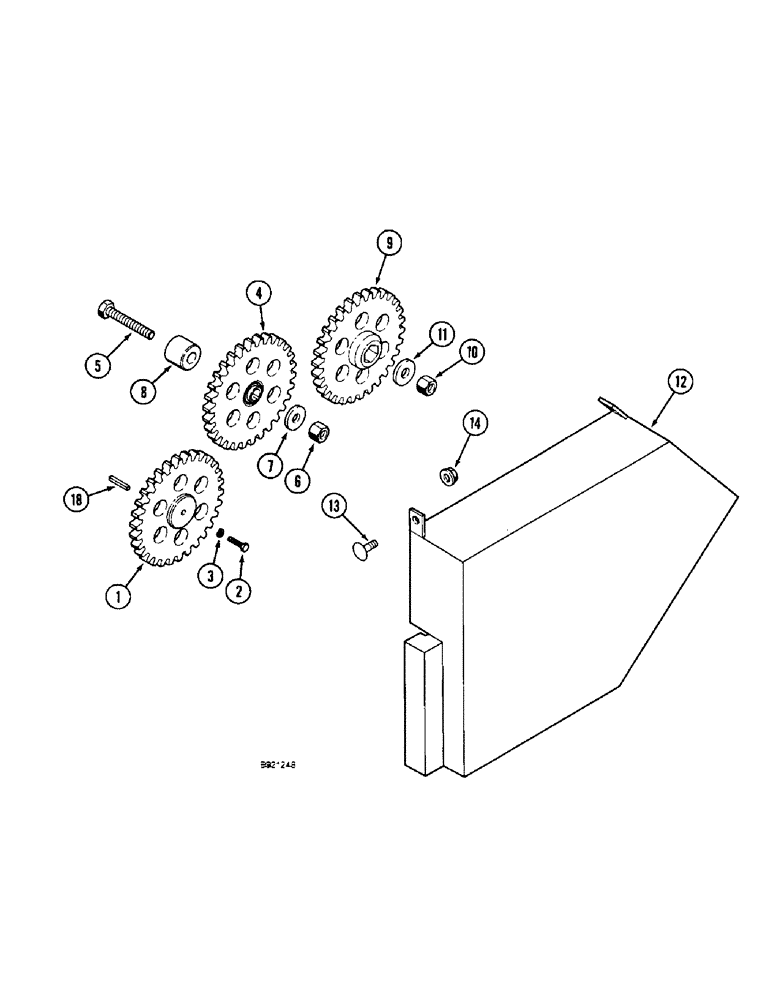

Схема запчастей Case IH 1800 - (9A-20) - CROSS AUGER DRIVE (13) - PICKING SYSTEM
10
14
7
9
2
4
11
18
12
1
6
5
8
3
13

Артикул

Название

Примечание

Количество

1

1999070C1

PINION

GEAR - cross auger drive

1шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

203519C2

PINION

GEAR - idler

1шт.

5

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

6

22047R1

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8 inch NC

1шт.

7

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

8

1999054C1

SPACER

- idler

1шт.

9

217423C1

PINION

GEAR - brush roll

1шт.

10

22047R1

LOCK NUT,5/8"-11

NUT - hex, self-locking, 5/8 inch NC

1шт.

11

495-81028

WASHER,21/32" x 1 1/2" x .240"

- flat, 21/32 x 1-3/4 x 15/64 inch

1шт.

12

1999091C1

PROTECTOR

GUARD - cross auger gear

1шт.

13

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

14

231-5146

FLANGE NUT,3/8"-16

2шт.

18

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

2

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

Выбрано товаров: 15
