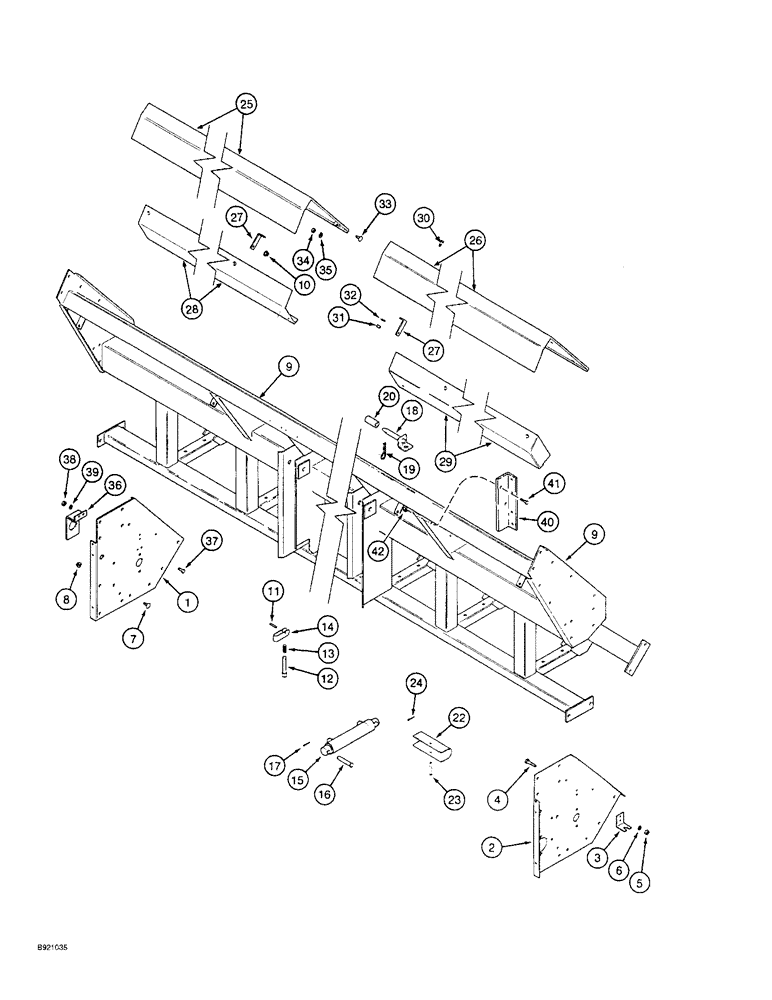

Запчасти Case IH 1800 (9A-18) - CROSS AUGER AND KICKER, SHIELDS AND SUPPORTS (13) - PICKING SYSTEM

1

1999049C1

HOLDER

SUPPORT - housing end, left-hand

1шт.

2

1999050C1

HOLDER

SUPPORT - housing end, right-hand

1шт.

3

1999086C1

ANGLE

- sensor

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

4шт.

8

231-5146

FLANGE NUT,3/8"-16

4шт.

9

1999035C1

FRAME ASSY

SUPPORT - cross auger

1шт.

10

29915C1

NUT - retainer, 5/16 inch NC

14шт.

11

38-11620

PIN,1/4" x 1 1/4", Slotted

2шт.

12

222416C1

PIN

- quick attach

2шт.

13

251262R2

VALVE SPRING

SPRING - handle bar

2шт.

14

222415C1

HOLDER

BAR - handle

2шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - auger lift, parts list page 8-43 or 8-45

4шт.

16

24478R1

HEADED PIN,5/8" x 3 1/4"

PIN - headed, 5/8 x 3-1/4 inch

4шт.

17

432-1216

COTTER PIN,3/16" x 1"

4шт.

18

219831C1

HEADED PIN

PIN - support

2шт.

19

1978738C1

HAIR PIN COTTER

2шт.

20

1998974C1

BUSHING,19.56 mm ID x 31.75 mm OD x 65.02 mm

- header sleeve

2шт.

22

219975C1

HOLDER

SUPPORT - cylinder lock

4шт.

23

439-5544

HEADED PIN,5/16" x 2.609"

PIN - headed, 5/16 x 2-3/4 inch

4шт.

24

586591R1

COTTER PIN

PIN - cotter, hair, 1/8 inch

4шт.

25

1999083C1

HOUSING

SHIELD - header front, left-hand

1шт.

26

1999084C1

HOUSING

SHIELD - header front, right-hand

1шт.

27

1999082C1

HOLDER

SUPPORT - front shield

2шт.

28

1541021C1

HOUSING

SHIELD - header, left-hand rear

1шт.

29

1541024C1

HOUSING

SHIELD - header, right-hand rear

1шт.

30

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

9шт.

31

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

9шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

33

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch

2шт.

34

425-106

NUT,3/8"-16, Cl 5

2шт.

35

492-11038

LOCK WASHER,3/8"

2шт.

36

1541026C1

PROTECTOR

GUARD - cross auger shaft

1шт.

37

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

38

425-106

NUT,3/8"-16, Cl 5

2шт.

39

492-11038

LOCK WASHER,3/8"

2шт.

40

1541177C1

HOLDER

BRACKET - tube clamp

1шт.

41

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

42

230-4115

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

2шт.
