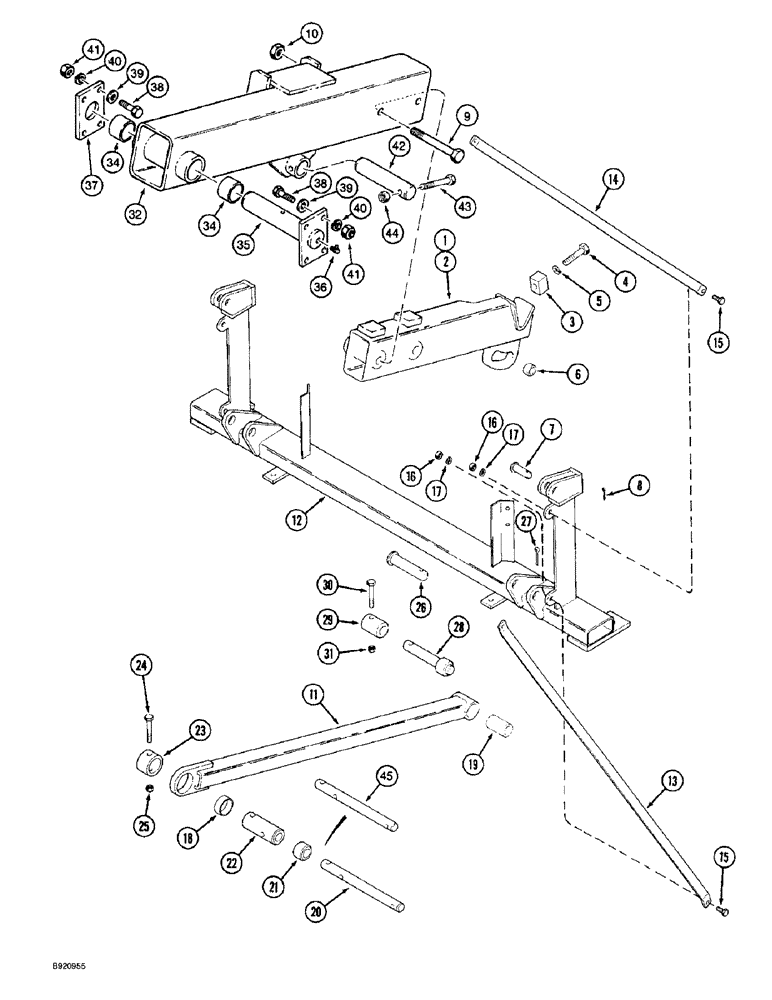

Запчасти Case IH 1800 (9A-12) - HEADER MOUNTING (13) - PICKING SYSTEM

1

1998907C1

ARM ASSY.

ARM - lift, right-hand

1шт.

2

1998900C1

ARM ASSY.

ARM - lift, left-hand, not shown

1шт.

3

1999072C1

BLOCK

- header retainer

2шт.

4

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

1999058C1

BUSHING

- pivot

2шт.

7

39-51236

HEADED PIN,3/4" x 2 1/4"

PIN - headed, 3/4 x 2-1/4 inch

2шт.

8

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

9

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

4шт.

10

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

4шт.

11

1998956C1

ARM ASSY.

ARM - radial

2шт.

12

1998961C1

FRAME ASSY

FRAME - header lift

1шт.

13

1541095C1

BRACE

- cross, long

2шт.

14

1541094C1

BRACE

- cross, short

2шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18

1998973C1

BUSHING,44.47 mm ID x 50.87 mm OD x 19.05 mm

- pivot eye

2шт.

19

1998972C1

BUSHING,25.42 mm ID x 38.17 mm OD x 63.62 mm

- pin eye

2шт.

20

1541143C1

PIN

- lower cylinder, if used, see item 32

2шт.

21

1541145C1

CLAMP

COLLAR - pin, if used, see item 32

2шт.

22

1541144C1

RING ASSY.

SLEEVE - lower cylinder, if used, see item 32

2шт.

23

1998915C1

RING, LOCKING

COLLAR - radial arm

2шт.

24

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

25

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

26

439-51672

HEADED PIN,25.4mm OD x 114.3mm L

PIN - headed, 1 x 3-3/4 inch (Replaces pin 22064R1)

2шт.

27

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

2шт.

28

1541146C1

HEADED PIN

PIN - upper cylinder

2шт.

29

1541148C1

RING ASSY.

SLEEVE - upper cylinder

2шт.

30

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

31

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

32

1339220C2

ARM

ASSEMBLY - lift, right-hand

1шт.

33

1339219C2

ARM

ASSEMBLY - lift, left-hand, not shown

1шт.

34

669644R1

BUSHING

- arm

2шт.

35

221776C2

PIN

- arm

2шт.

36

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

37

221778C1

SUPPORT

PLATE - pin

2шт.

38

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

16шт.

39

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

16шт.

40

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

41

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

16шт.

42

1288567C3

PIVOT PIN

PIN - pivot

2шт.

43

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

2шт.

44

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

2шт.

45

1541312C1

PIN

- lower cylinder, if used (Replaces items 20, 21 and 22)

2шт.
